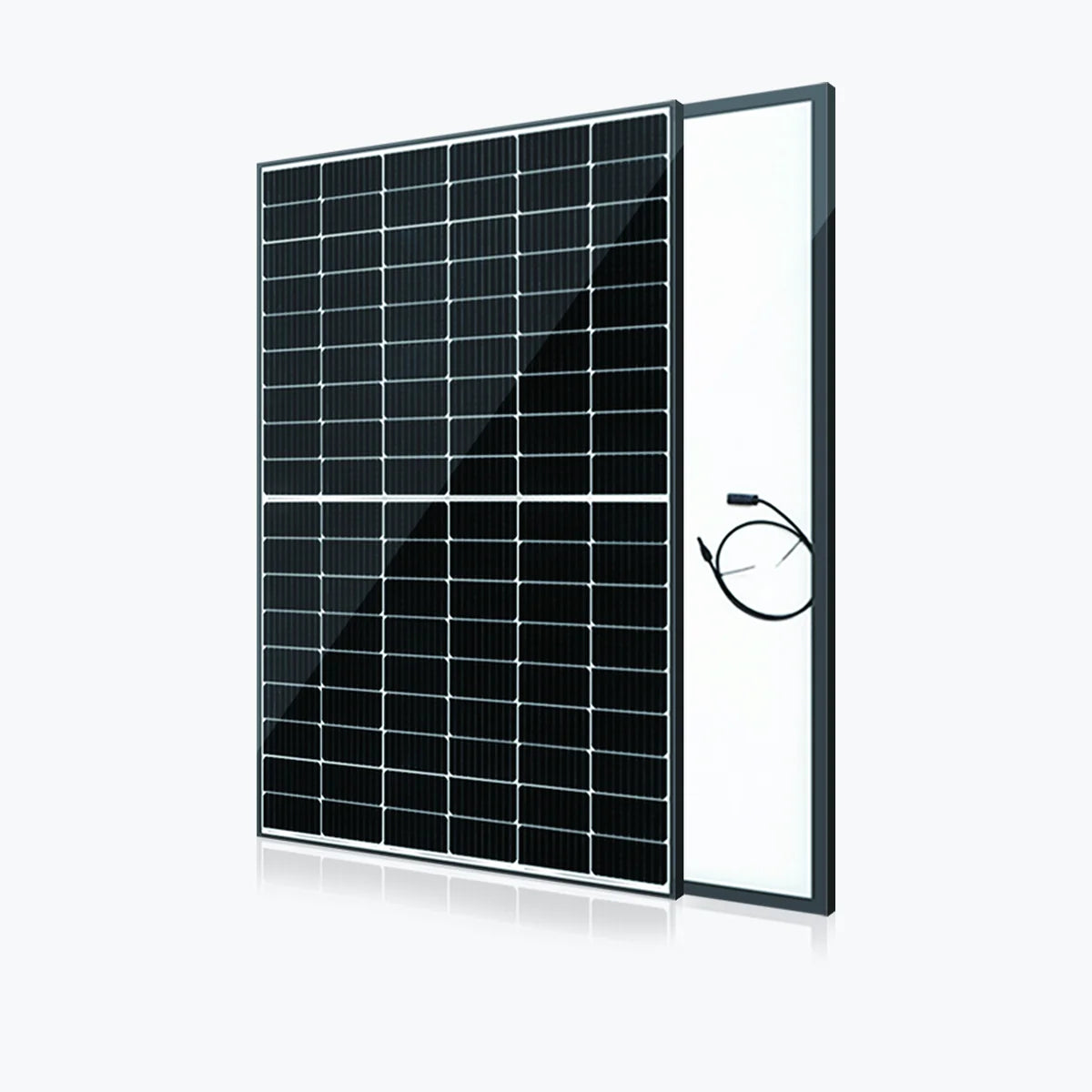

    Shinson Technology S410M54P3

    Shinson Technology S410M54P3

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-17228
    • Container price: $48.60 USD
    • Container qty: 720
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. S410M54P3 Product Warranty 25 Years Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 410 Wp Voltage at Maximum Power (Vmpp) 31.44 V Current at Maximum Power (Impp) 13.05 A Open Circuit Voltage (Voc) 37.33 V Short Circuit Current (Isc) 13.95 A Panel Efficiency 21 % Maximum Power (Pmax) 305 Wp Voltage at Maximum Power (Vmpp) 29.8 V Current at Maximum Power (Impp) 10.23 A Open Circuit Voltage (Voc) 35.38 V Short Circuit Current (Isc) 11.28 A Temperature 41±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 20.7 kg Cell Size 182×91 mm Cell Number 108 Glass Type Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4

      Technology: PERC
      Power Range: 405 ~ 420 Wp
      Panel Efficiency: 20.7 ~ 21.5 %
      Weight: 20.7 kg
      Seller Name: Shinson Technology Co., Ltd.
      Country: China
