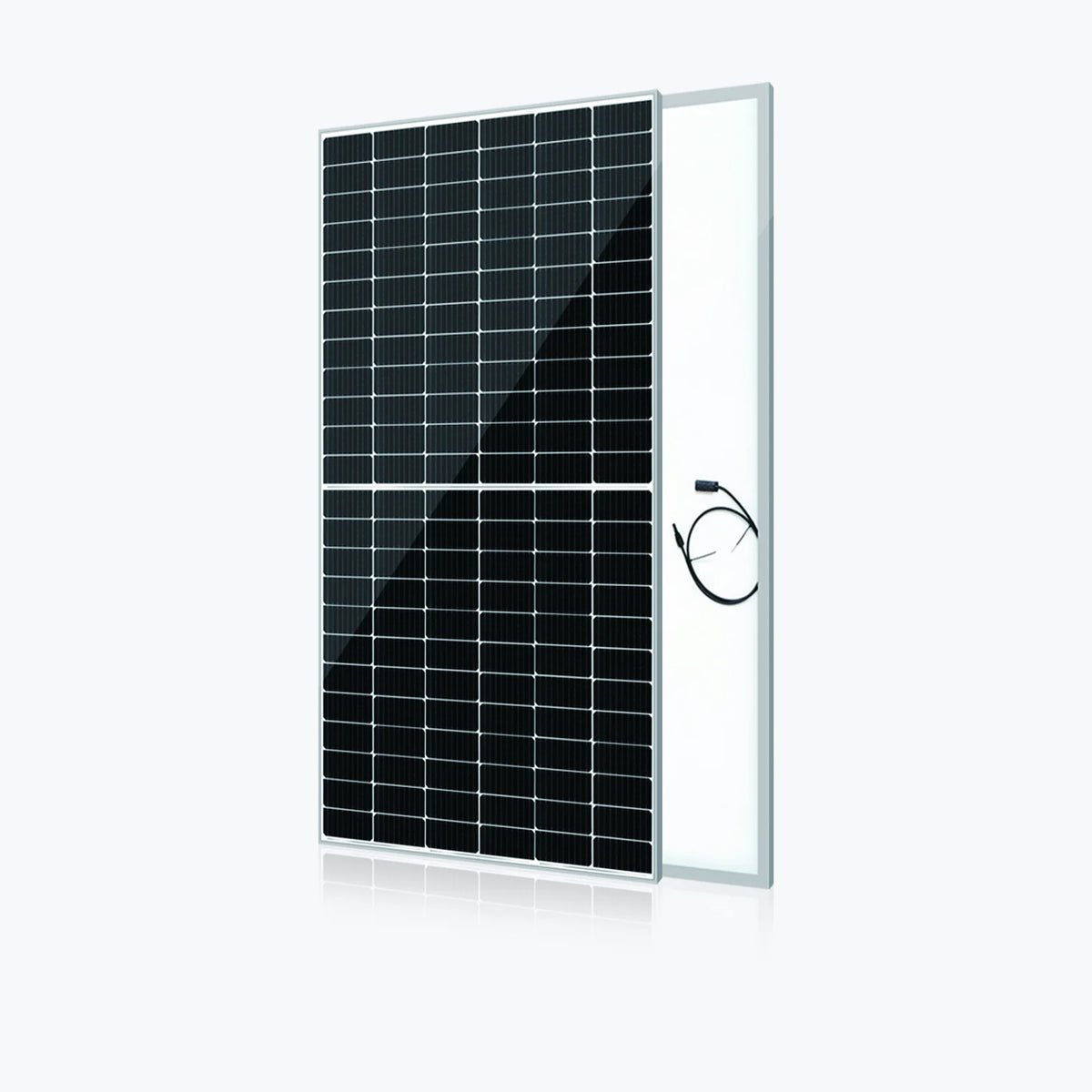

Shinson Technology S555M72P3
PayPal Pay in 4 interest-free payments of $50.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-17265
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. S555M72P3 Product Warranty 25 Years Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 555 Wp Voltage at Maximum Power (Vmpp) 42.2 V Current at Maximum Power (Impp) 13.16 A Open Circuit Voltage (Voc) 50.4 V Short Circuit Current (Isc) 13.93 A Panel Efficiency 21.47 % Maximum Power (Pmax) 420 Wp Voltage at Maximum Power (Vmpp) 39.6 V Current at Maximum Power (Impp) 10.61 A Open Circuit Voltage (Voc) 48.2 V Short Circuit Current (Isc) 11.23 A Temperature 41±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2279x1134x35 mm Weight 27 kg Cell Size 182×91 mm Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Ca
Technology: PERC
Power Range: 545 ~ 560 Wp
Panel Efficiency: 21.08 ~ 21.66 %
Weight: 27 kg
Seller Name: Shinson Technology Co., Ltd.
Country: China
