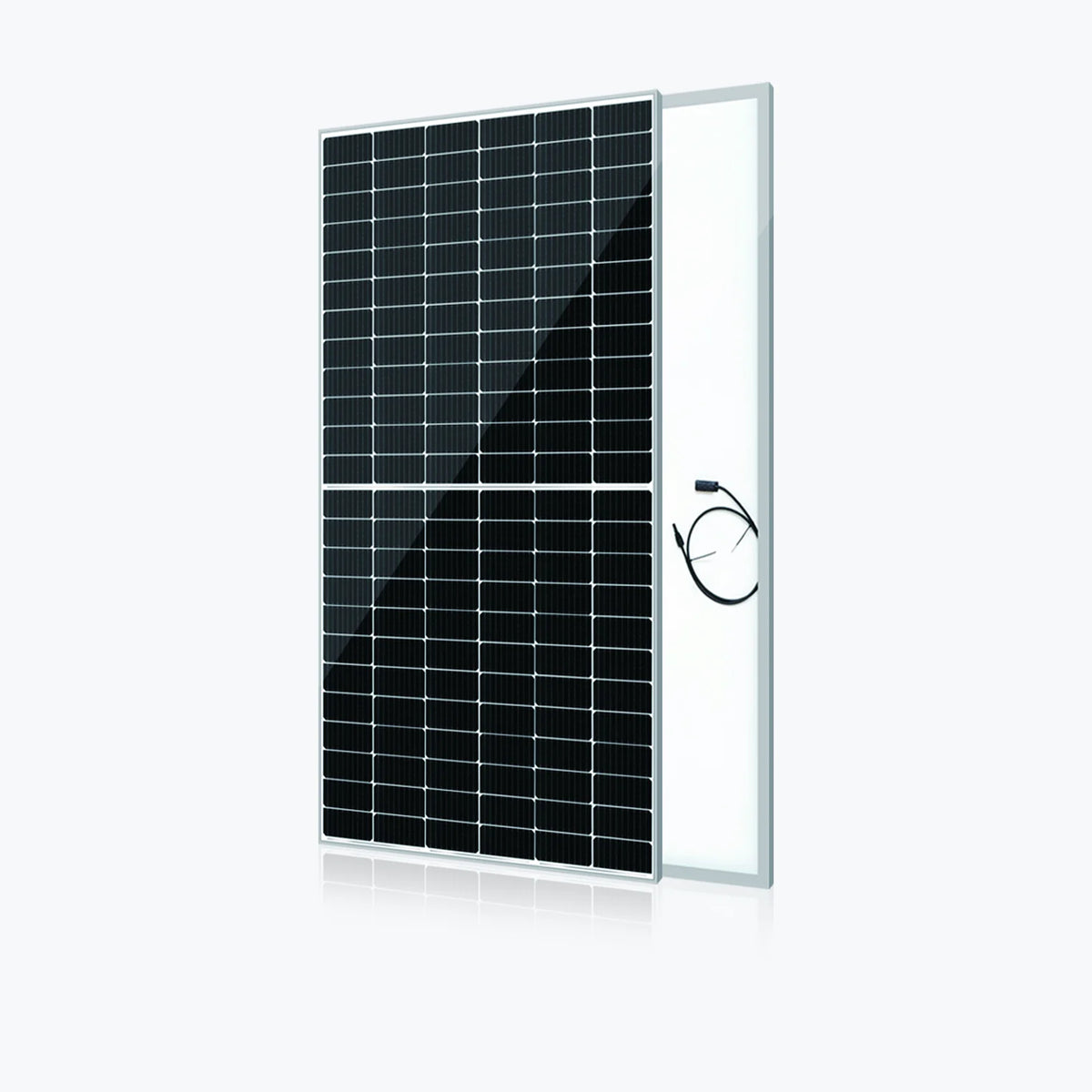

    Shinson Technology S560M72P3

    Shinson Technology S560M72P3

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-17267
    • Container price: $43.20 USD
    • Container qty: 720
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. S560M72P3 Product Warranty 25 Years Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 560 Wp Voltage at Maximum Power (Vmpp) 42.4 V Current at Maximum Power (Impp) 13.21 A Open Circuit Voltage (Voc) 50.6 V Short Circuit Current (Isc) 13.99 A Panel Efficiency 21.66 % Maximum Power (Pmax) 424 Wp Voltage at Maximum Power (Vmpp) 39.8 V Current at Maximum Power (Impp) 10.65 A Open Circuit Voltage (Voc) 48.4 V Short Circuit Current (Isc) 11.28 A Temperature 41±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2279x1134x35 mm Weight 27 kg Cell Size 182×91 mm Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Ca

      Technology: PERC
      Power Range: 545 ~ 560 Wp
      Panel Efficiency: 21.08 ~ 21.66 %
      Weight: 27 kg
      Seller Name: Shinson Technology Co., Ltd.
      Country: China
