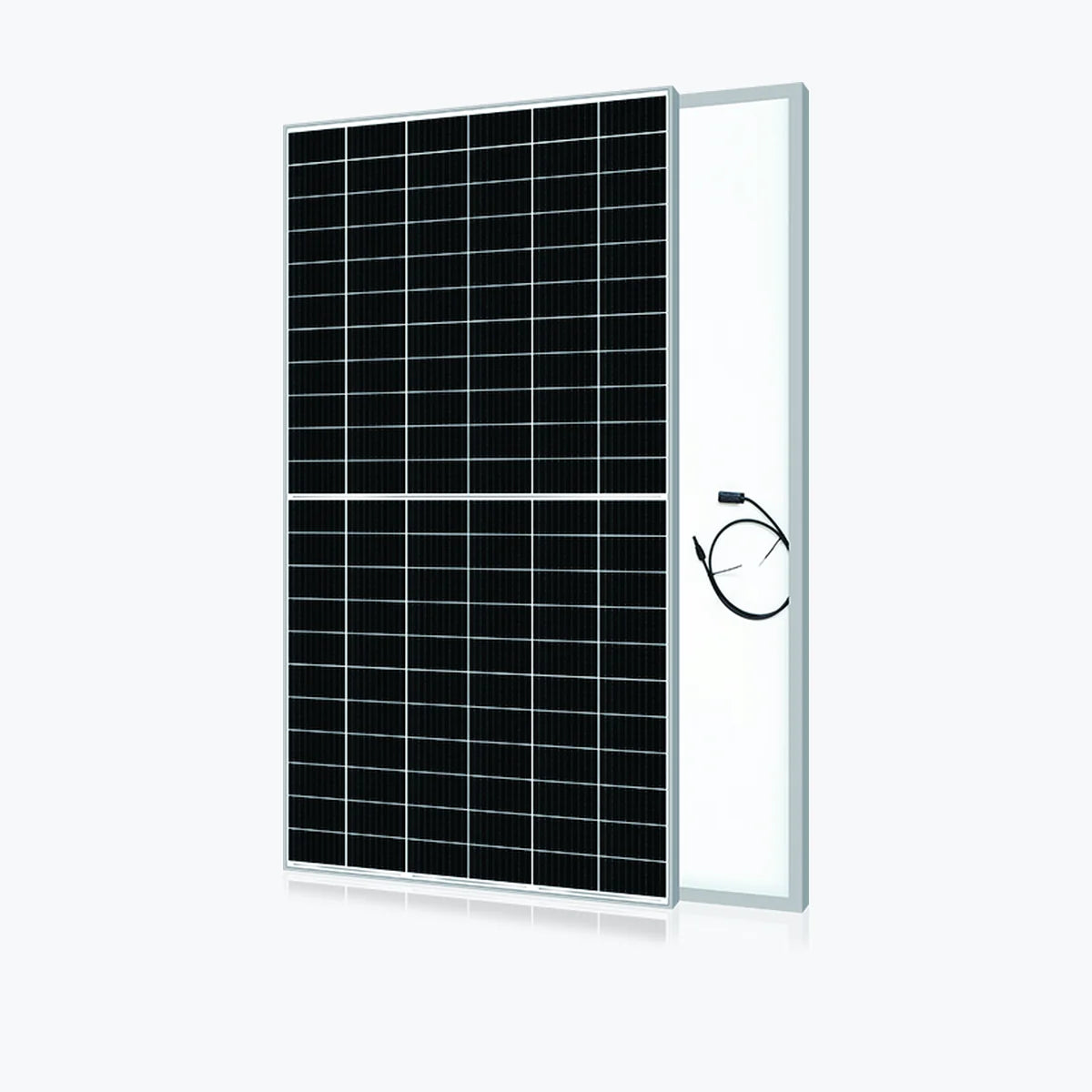

    Shinson Technology S660M66P4

    Shinson Technology S660M66P4

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-17278
    • Container price: $48.60 USD
    • Container qty: 720
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. S660M66P4 Product Warranty 25 Years Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 660 Wp Voltage at Maximum Power (Vmpp) 37.8 V Current at Maximum Power (Impp) 17.47 A Open Circuit Voltage (Voc) 45.7 V Short Circuit Current (Isc) 18.53 A Panel Efficiency 21.2 % Maximum Power (Pmax) 500 Wp Voltage at Maximum Power (Vmpp) 35.3 V Current at Maximum Power (Impp) 14.17 A Open Circuit Voltage (Voc) 43 V Short Circuit Current (Isc) 14.93 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1303x35 mm Weight 34.4 kg Cell Number 132 Glass Type Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 350 mm Download Manufacturer's P

      Technology: PERC
      Power Range: 655 ~ 670 Wp
      Panel Efficiency: 21.1 ~ 21.6 %
      Weight: 34.4 kg
      Seller Name: Shinson Technology Co., Ltd.
      Country: China
