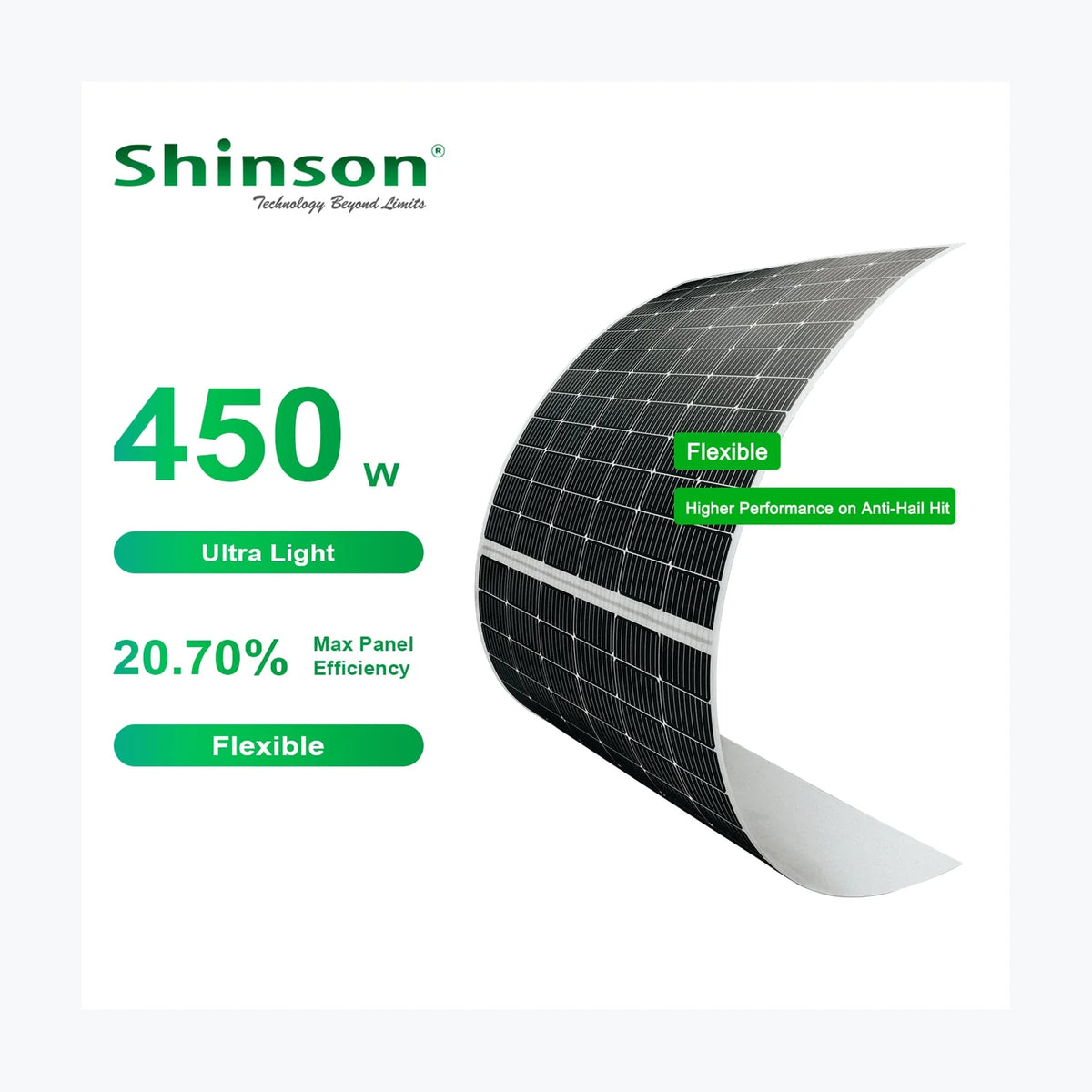

Shinson Technology SSL450-60CW
Shinson Technology SSL450-60CW
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-17291
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. SSL450-60CW Product Warranty 15 Years Power Warranty 15 Years of 90 %, 30 Years of 85 % Total Degradation Rate ⏳ 0.5 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 450 Wp Voltage at Maximum Power (Vmpp) 34.78 V Current at Maximum Power (Impp) 12.95 A Open Circuit Voltage (Voc) 42.03 V Short Circuit Current (Isc) 13.9 A Panel Efficiency 20.07 % Maximum Power (Pmax) 335 Wp Voltage at Maximum Power (Vmpp) 32.96 V Current at Maximum Power (Impp) 10.16 A Open Circuit Voltage (Voc) 39.17 V Short Circuit Current (Isc) 11.22 A Temperature 45±2 °C Temperature Coefficient of Pmax -0.350 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc +0.047 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1911x1137x3.2 mm Weight 9 kg Cell Size 182×182 mm Cell Number 60 Glass Type Anti-reflection Coating Encapsulant Type EVA Back Cover Type TPE Frame Type Frameless Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Power Range: 450 Wp
Panel Efficiency: 20.07%
Weight: 9 kg
Seller: Shinson Technology Co., Ltd.
Country: China -
