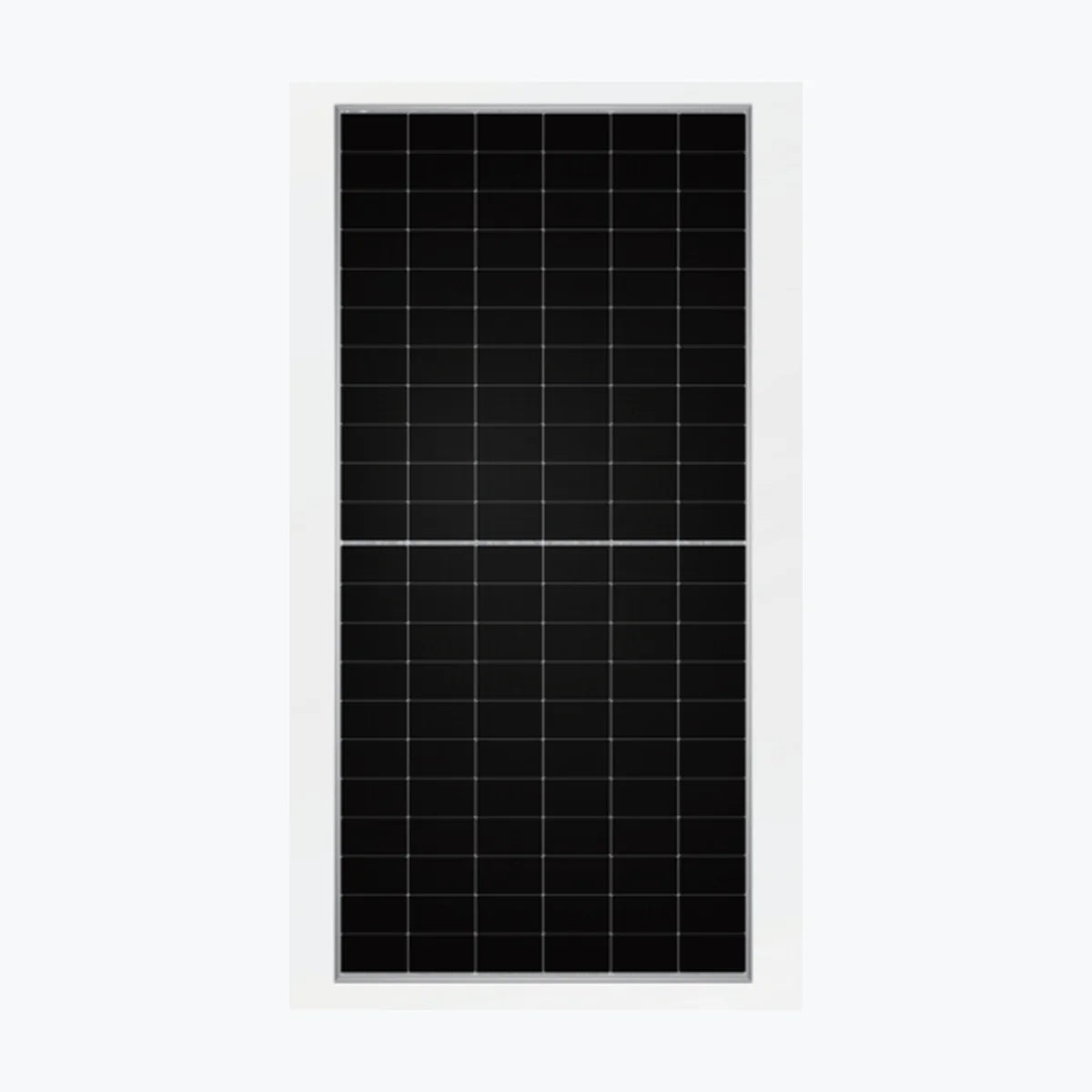

    Snovotek TWMNH-66HD-655

    Snovotek TWMNH-66HD-655

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-17526
    • Container price: $43.20 USD
    • Container qty: 720
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. TWMNH-66HD-655 Product Warranty 12 Years Power Warranty 1 Years of 99 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 655 Wp Voltage at Maximum Power (Vmpp) 41.78 V Current at Maximum Power (Impp) 15.68 A Open Circuit Voltage (Voc) 50.15 V Short Circuit Current (Isc) 16.52 A Panel Efficiency 24.2 % Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.24 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2382x1134x30 mm Weight 32.2 kg Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 1400 mm Download Manufacturer's PDF Datasheet

      Technology: Bifacial, N-type
      Power Range: 635 ~ 655 Wp
      Panel Efficiency: 23.5 ~ 24.2 %
      Weight: 32.2 kg
      Seller Name: Hunan Snovotek Energy Co., Ltd.
      Country: China
