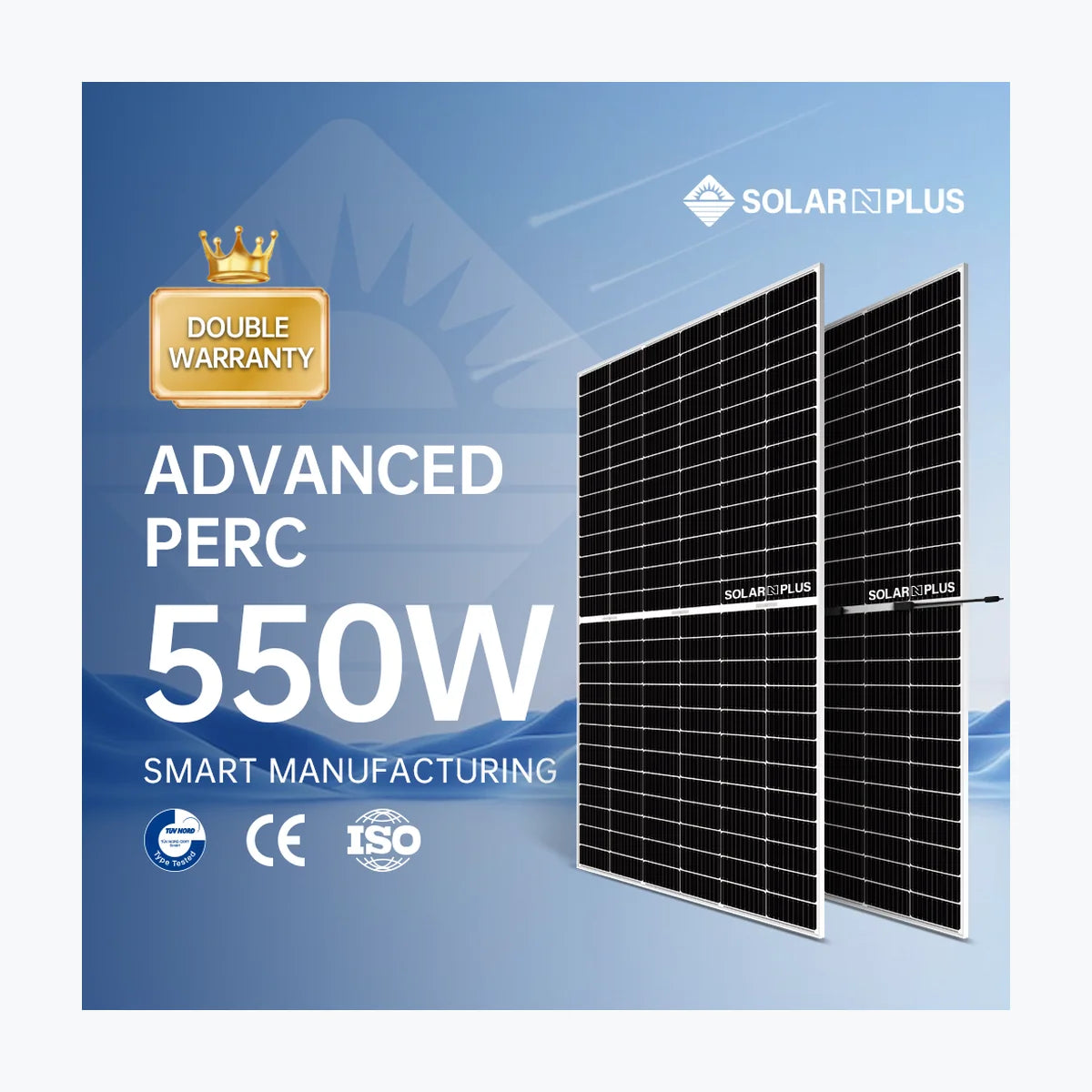

Solar N Plus 545
Solar N Plus 545
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-17686
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. 545 Product Warranty 15 Years Power Warranty 30 Years of 84.95 % Total Degradation Rate ⏳ 0.5 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 545 Wp Voltage at Maximum Power (Vmpp) 41.32 V Current at Maximum Power (Impp) 13.19 A Open Circuit Voltage (Voc) 49.92 V Short Circuit Current (Isc) 13.95 A Panel Efficiency 21.1 % Maximum Power (Pmax) 412 Wp Voltage at Maximum Power (Vmpp) 38.08 V Current at Maximum Power (Impp) 10.82 A Open Circuit Voltage (Voc) 46.82 V Short Circuit Current (Isc) 11.25 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 32 kg Cell Number 144 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, PERC
Power Range: 540 ~ 560 Wp
Panel Efficiency: 20.9 ~ 21.7 %
Weight: 32 kg
Seller: Solar N Plus New Energy Tech. Co., Ltd
Country: China -
