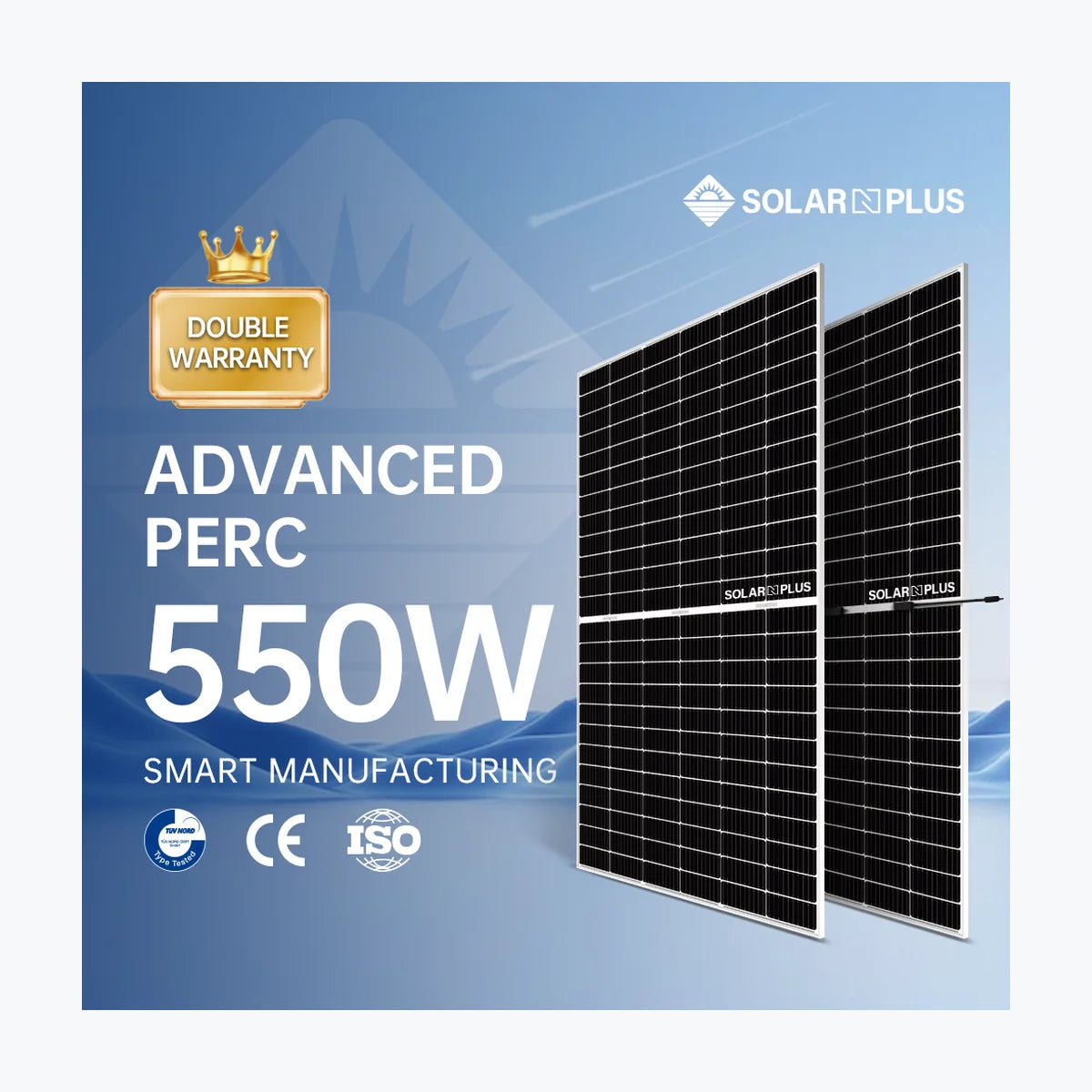

Solar N Plus 550
Solar N Plus 550
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-17687
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. 550 Product Warranty 15 Years Power Warranty 30 Years of 84.95 % Total Degradation Rate ⏳ 0.5 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 550 Wp Voltage at Maximum Power (Vmpp) 41.51 V Current at Maximum Power (Impp) 13.25 A Open Circuit Voltage (Voc) 50.11 V Short Circuit Current (Isc) 14.01 A Panel Efficiency 21.3 % Maximum Power (Pmax) 416 Wp Voltage at Maximum Power (Vmpp) 38.27 V Current at Maximum Power (Impp) 10.87 A Open Circuit Voltage (Voc) 47.01 V Short Circuit Current (Isc) 11.31 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 32 kg Cell Number 144 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, PERC
Power Range: 540 ~ 560 Wp
Panel Efficiency: 20.9 ~ 21.7 %
Weight: 32 kg
Seller: Solar N Plus New Energy Tech. Co., Ltd
Country: China -
