In Stock
Solar 4 America 144 Mono Cells Black/Silver 580w Solar Panel - S4A580-144TH10STT
Solar 4 America 144 Mono Cells Black/Silver 580w Solar Panel - S4A580-144TH10STT
$0.5/watt
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SPL-0155
- Brands: Solar4America
- Height: 1134
- Length: 2278
- Panel wattage: 580
- Short description: Explore our full range of Solar Modules <a href="https://www.portlandiaelectric.supply/solar-panels/" target="_new" rel="noopener">here</a> to find the perfect solution for your energy needs.<br><strong>Note:</strong> Out of Production. Limited Availability <a href="tel:+888-876-0007">Call now</a>
- Width: 35
Product Description
-

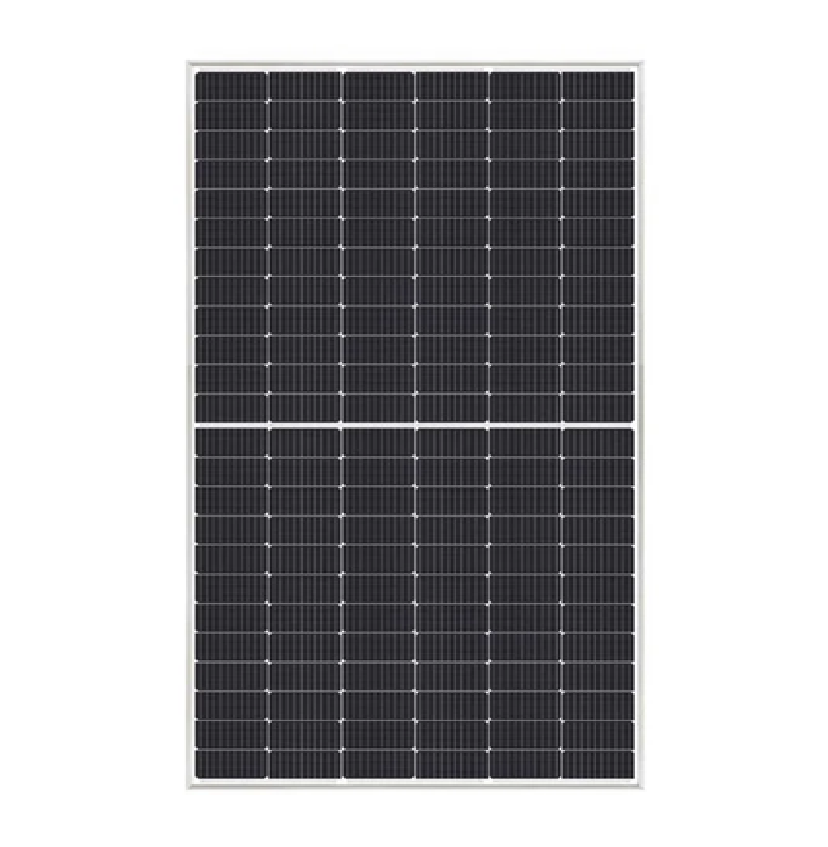

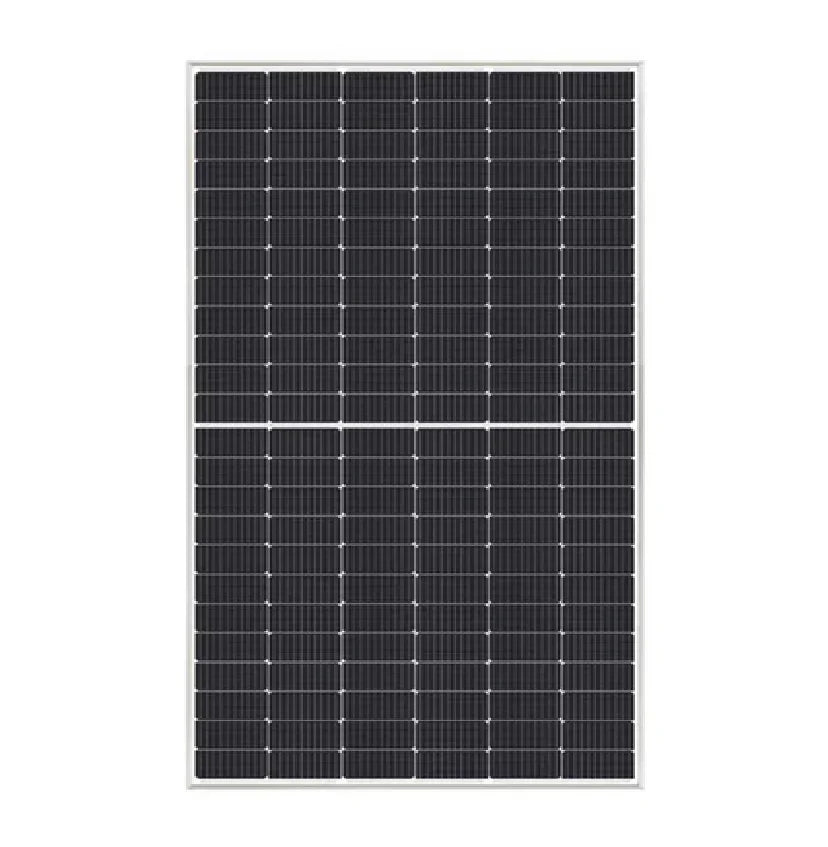

Solar4America S4A580-144TH10STT 580W Solar Panel Overview
The Solar4America S4A580-144TH10STT is a premium solar panel featuring 144 mono-crystalline cells and cutting-edge technology for optimal energy output. Designed with a black and silver finish, this 580W panel combines efficiency and aesthetics, making it ideal for both residential and commercial solar installations.Product Features
High Power Output
The Solar4America S4A580-144TH10STT delivers an impressive 580W output, ensuring maximum energy generation for high-demand applications.Enhanced Efficiency
With advanced mono-crystalline cell technology, this panel achieves superior energy conversion efficiency, maximizing the power generated even under challenging conditions.Durable Construction
Engineered to withstand extreme weather conditions, the Solar4America S4A580-144TH10STT features a robust frame and tempered glass for long-lasting performance.Optimized Temperature Coefficient
This panel ensures stable performance with a low temperature coefficient, maintaining high energy yield even in high-temperature environments.Aesthetic Design
The sleek black and silver finish makes the Solar4America S4A580-144TH10STT an excellent choice for installations where design and appearance are important.How It Works
The Solar4America S4A580-144TH10STT operates by capturing sunlight through its 144 mono-crystalline cells, converting solar energy into electricity. Its advanced design supports compatibility with a range of inverters and mounting systems.Solar Cell Configuration
The panel features 144 half-cut mono-crystalline cells, arranged to optimize energy generation and minimize power loss.Advanced Bypass Diodes
Integrated bypass diodes reduce the risk of hot spots and enhance performance in shaded conditions, ensuring consistent energy output.Weather-Resistant Design
The Solar4America S4A580-144TH10STT is built to handle snow loads, wind loads, and other environmental challenges, ensuring reliability over its lifespan.Specifications
Specification Value Model Number S4A580-144TH10STT Maximum Power (Pmax) 580 W Operating Voltage (Vmp) 41.3 V Operating Current (Imp) 14.04 A Open Circuit Voltage (Voc) 49.3 V Short Circuit Current (Isc) 14.92 A Module Efficiency 21.3% Dimensions 2279 x 1134 x 35 mm Weight 31.6 kg Cell Type Mono-Crystalline Cell Arrangement 144 [12x12] Front Glass 3.2 mm tempered glass with anti-reflective coating Frame Anodized aluminum alloy Operating Temperature -40 °C to +85 °C Maximum System Voltage 1500 V Warranty 25 years performance warranty Fire Rating Class C Certification
The Solar4America S4A580-144TH10STT is certified to meet industry standards for safety and performance, ensuring reliable operation in diverse environments.Compatibility
This solar panel is compatible with a wide range of inverters and mounting systems, making it a versatile option for various installations.Notes
- Ready to ship this week.
- Certified for durability and long-term performance.
- Environmentally friendly with high energy output.
-
