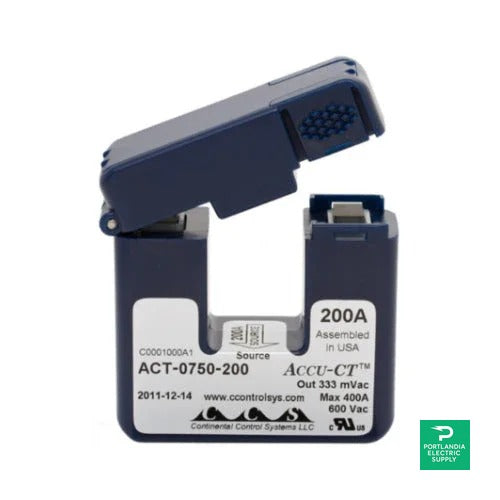

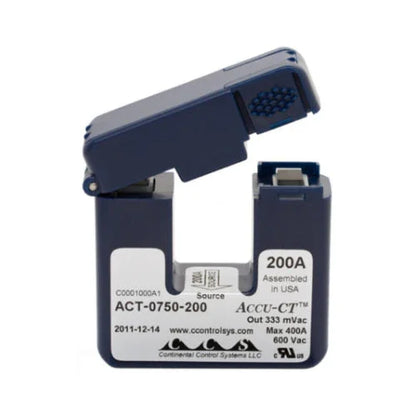

SolarEdge 200A CT Electricity Meter - SEACT0750-200NA

The SolarEdge 200A CT Electricity Meter, model SEACT0750-200NA, is designed to enhance energy management by providing accurate real-time consumption monitoring. This device enables effective integration with SolarEdge inverters, ensuring efficient operation in solar energy systems. Its flexible features and reliable performance make it an essential tool for optimizing energy output and monitoring consumption patterns.

Product Features

Enhanced Monitoring Capabilities

This SolarEdge SEACT0750-200NA meter incorporates advanced monitoring features that allow users to track energy production, consumption, and self-consumption efficiently. These capabilities help homeowners and energy managers make informed decisions regarding energy usage.

Flexible Current Transformers

Equipped with flexible coil CTs, this meter can easily adapt to various installation scenarios, making it user-friendly. The SECT-FLX-250A-05 supports seamless setup, offering substantial accuracy in capturing energy flows.

Robust Connectivity Options

The SolarEdge meter facilitates connections using standard protocols, ensuring compatibility with a wide range of solar inverters and devices. This allows for smooth integration and reliable communication across the energy management system.

User-Friendly Interface

With a straightforward LCD panel and intuitive navigation, setup and configuration of the SEACT0750-200NA are hassle-free. Users can easily configure device settings with just a few button presses, streamlining the installation process.

Compliance with Safety Standards

The SolarEdge meter is designed with adherence to safety regulations, ensuring secure operation in various environments. This focus on safety inspires confidence in users, particularly when monitoring critical electrical systems.

How It Works

The SolarEdge 200A CT Electricity Meter operates through advanced current transformer technology that measures and transmits electrical consumption data to the connected inverter. It effectively captures voltage and current readings, communicating vital information for monitoring purposes.

Current Transformer Functionality

The flexible coil CTs included with the meter detect energy usage across different phases, providing a comprehensive view of the energy consumption landscape in the household or facility. Their design allows for easy installation in tight spaces.

Data Transmission Mechanics

Upon measurement, the meter swiftly transmits data back to the SolarEdge inverter via a reliable protocol. This ensures real-time data availability for analysis, enabling users to maintain control over energy management.

System Integration

Designed for seamless integration, the SEACT0750-200NA works well with varied SolarEdge products, contributing to a unified energy management experience. Such integration plays a crucial role in boosting energy savings and enhancing system performance.

Specifications

Manufacturer	SolarEdge
Part Number	SEACT0750-200NA
Current Rating	200A
Compatible Inverters	SetApp-enabled inverters
CT Type	Flexible Coil
Extension Cable Requirement	Shielded cable required
Voltage Rating	600V
AWG Range	24 - 14 AWG
Protocol Support	WN
Phase Configuration	Wye
