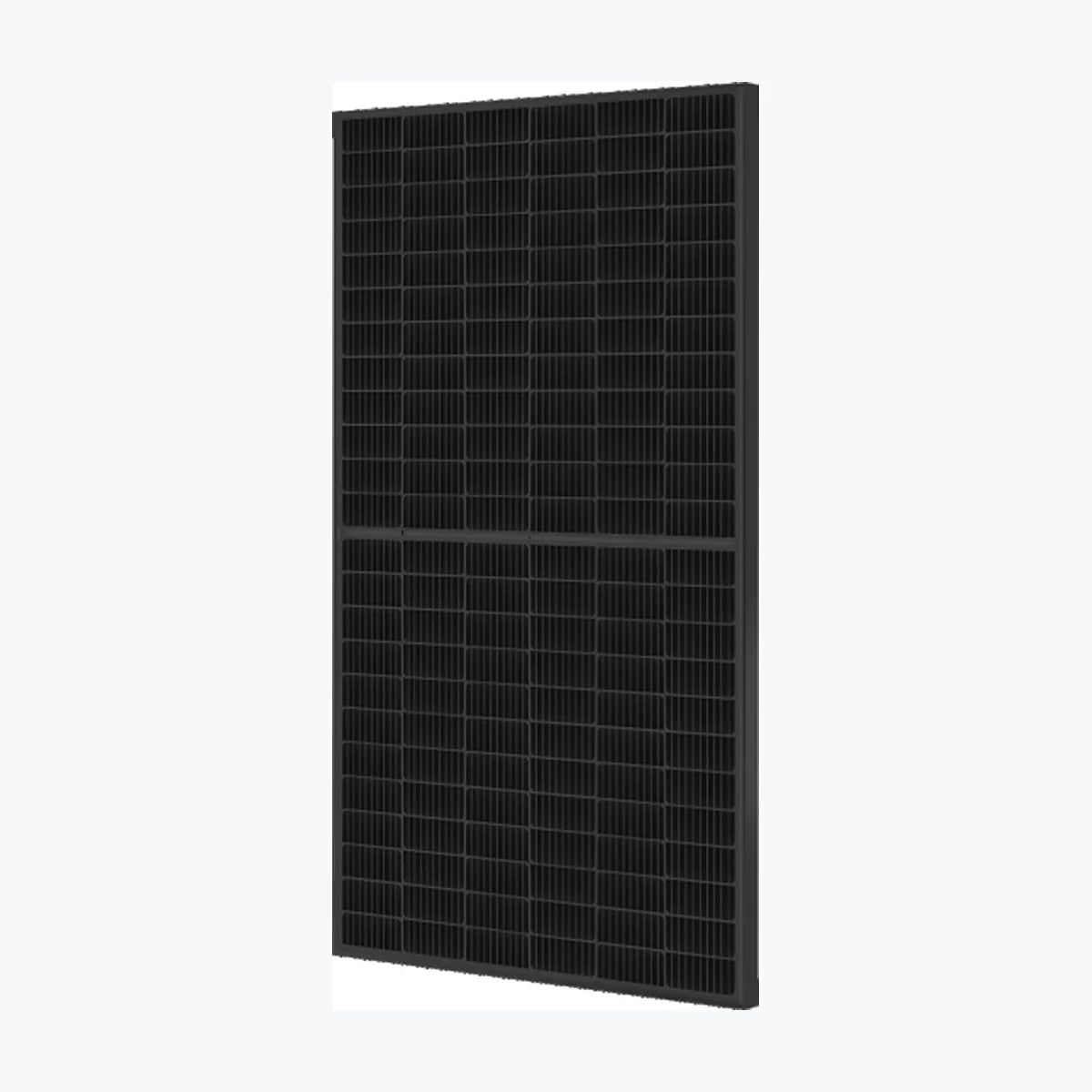

    Sunlike Solar LNSU-435M

    Sunlike Solar LNSU-435M

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-19535
    • Container price: $48.60 USD
    • Container qty: 720
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. LNSU-435M Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 435 Wp Voltage at Maximum Power (Vmpp) 40.81 V Current at Maximum Power (Impp) 10.66 A Open Circuit Voltage (Voc) 49.4 V Short Circuit Current (Isc) 11.36 A Panel Efficiency 19.98 % Maximum Power (Pmax) 321 Wp Voltage at Maximum Power (Vmpp) 37.56 V Current at Maximum Power (Impp) 8.55 A Open Circuit Voltage (Voc) 45.48 V Short Circuit Current (Isc) 9.09 A Temperature 45±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2095x1039x35 mm Weight 23 kg Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cab

      Power Range: 435 ~ 455 Wp
      Panel Efficiency: 19.98 ~ 20.9 %
      Weight: 23 kg
      Seller Name: Sunlike Solar Co., Ltd.
      Country: China
