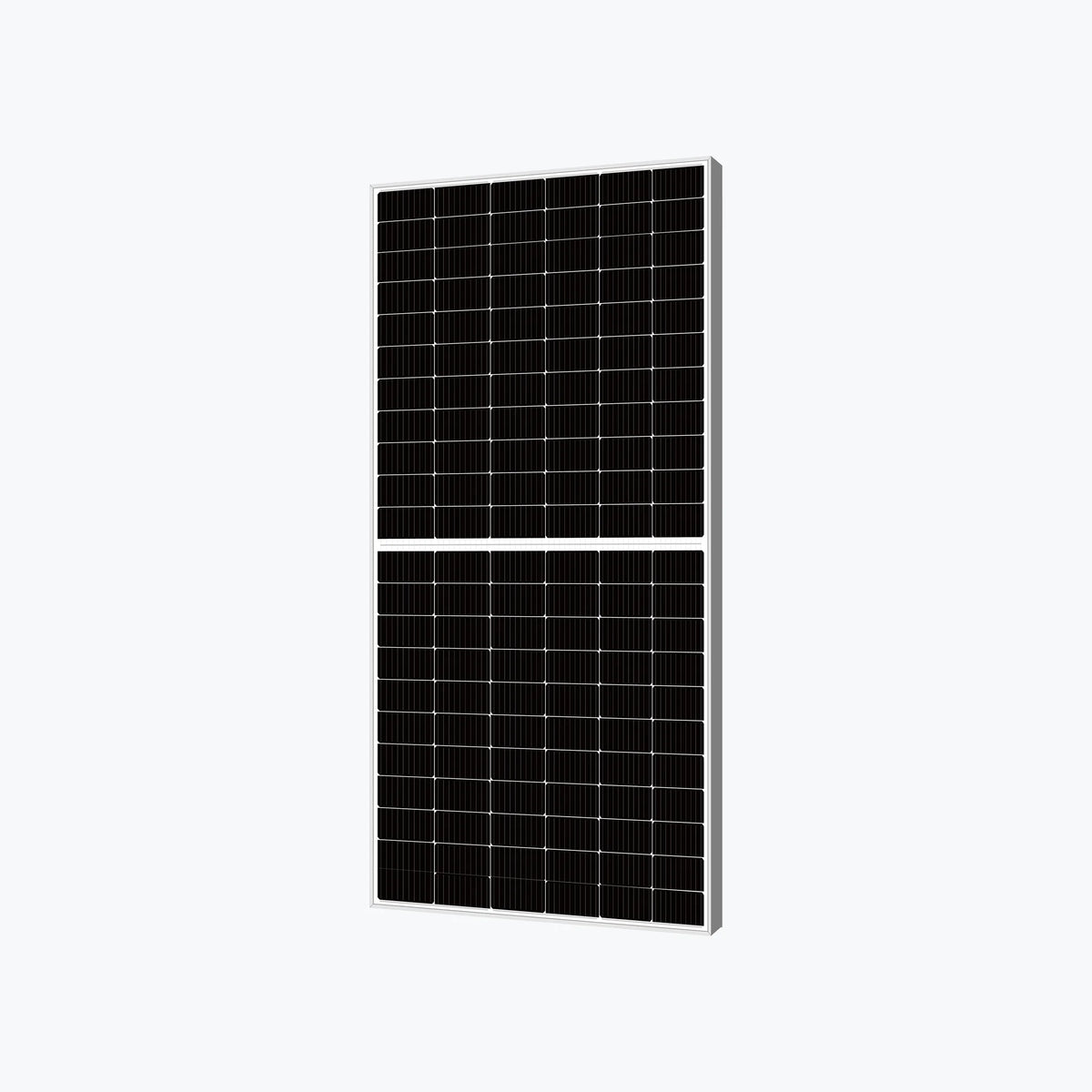

    Sunlike Solar LNVT-485M

    Sunlike Solar LNVT-485M

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-19567
    • Container price: $48.60 USD
    • Container qty: 720
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. LNVT-485M Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 485 Wp Voltage at Maximum Power (Vmpp) 38.16 V Current at Maximum Power (Impp) 12.71 A Open Circuit Voltage (Voc) 46.18 V Short Circuit Current (Isc) 13.6 A Panel Efficiency 20.42 % Maximum Power (Pmax) 365 Wp Voltage at Maximum Power (Vmpp) 35.54 V Current at Maximum Power (Impp) 10.27 A Open Circuit Voltage (Voc) 43.53 V Short Circuit Current (Isc) 10.89 A Temperature 45±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc +0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2094x1134x35 mm Weight 25.5 kg Cell Number 132 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm

      Power Range: 485 ~ 505 Wp
      Panel Efficiency: 20.42 ~ 21.27 %
      Weight: 25.5 kg
      Seller Name: Sunlike Solar Co., Ltd.
      Country: China
