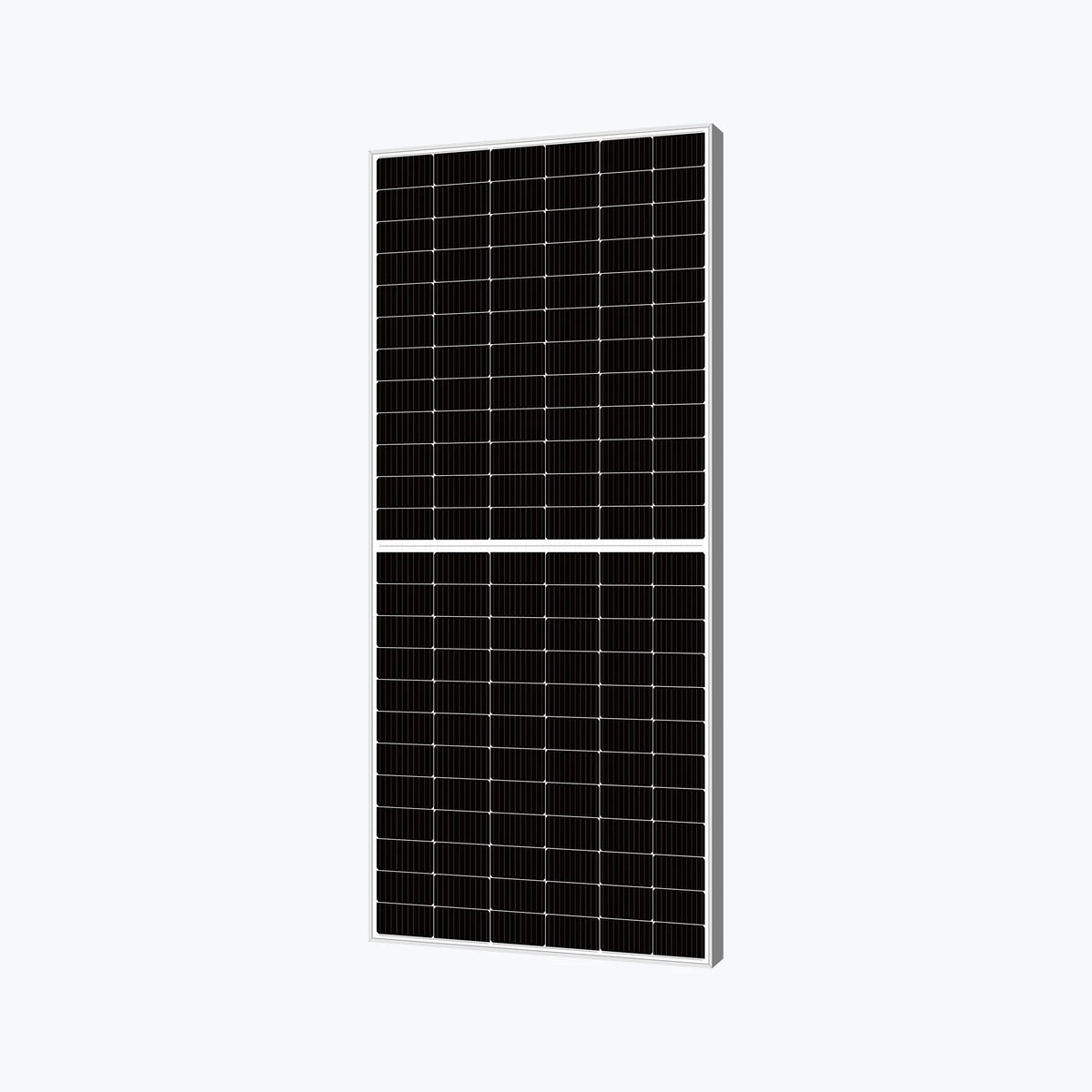

Sunlike Solar LNVU-540M
Sunlike Solar LNVU-540M
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-19579
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. LNVU-540M Product Warranty 15 Years Power Warranty 30 Years of 84.8 % Total Degradation Rate ⏳ 0.51 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 540 Wp Voltage at Maximum Power (Vmpp) 41.96 V Current at Maximum Power (Impp) 12.87 A Open Circuit Voltage (Voc) 50.04 V Short Circuit Current (Isc) 13.76 A Panel Efficiency 20.89 % Maximum Power (Pmax) 409 Wp Voltage at Maximum Power (Vmpp) 39.44 V Current at Maximum Power (Impp) 10.37 A Open Circuit Voltage (Voc) 47.63 V Short Circuit Current (Isc) 10.99 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc +0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1134x35 mm Weight 28.5 kg Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Power Range: 530 ~ 550 Wp
Panel Efficiency: 20.51 ~ 21.28 %
Weight: 28.5 kg
Seller: Sunlike Solar Co., Ltd.
Country: China -
