Out of Stock

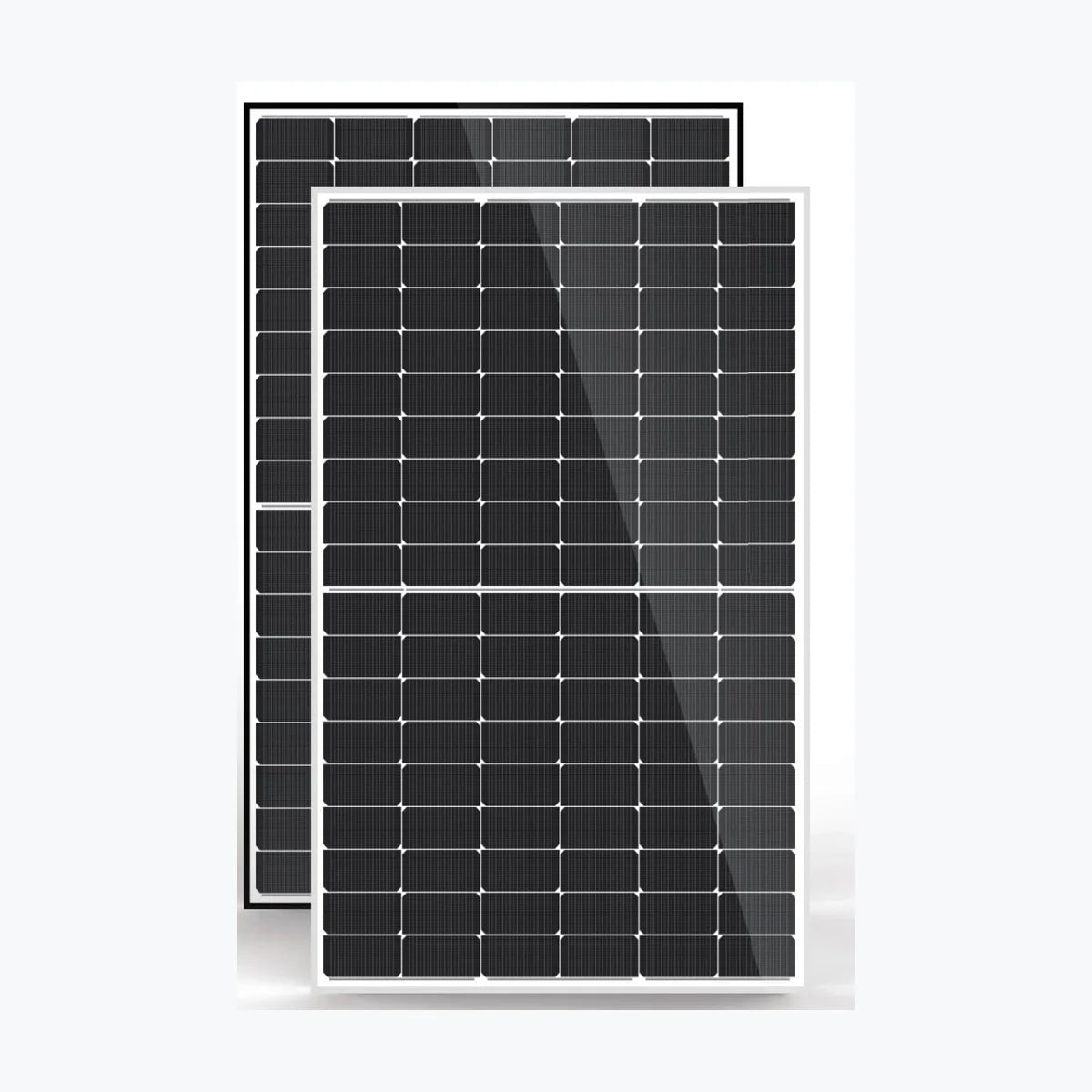

SunLink PV SL5N108D 455
SunLink PV SL5N108D 455
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-18943
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. SL5N108D 455 Product Warranty 30 Years Power Warranty 1 Years of 99 %, 25 Years of 87.4 % Total Degradation Rate ⏳ 0.5 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 455 Wp Voltage at Maximum Power (Vmpp) 32.99 V Current at Maximum Power (Impp) 13.79 A Open Circuit Voltage (Voc) 40.1 V Short Circuit Current (Isc) 14.58 A Panel Efficiency 22.8 % Maximum Power (Pmax) 343 Wp Voltage at Maximum Power (Vmpp) 30.85 V Current at Maximum Power (Impp) 11.12 A Open Circuit Voltage (Voc) 38.08 V Short Circuit Current (Isc) 11.79 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1762x1134x30 mm Weight 23 kg Cell Size 188×182.3 mm Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type POE Back Cover Type PET Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1000 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, TOPCon
Power Range: 450 ~ 455 Wp
Panel Efficiency: 22.5 ~ 22.8 %
Weight: 23 kg
Seller: SunLink PV
Country: China -
