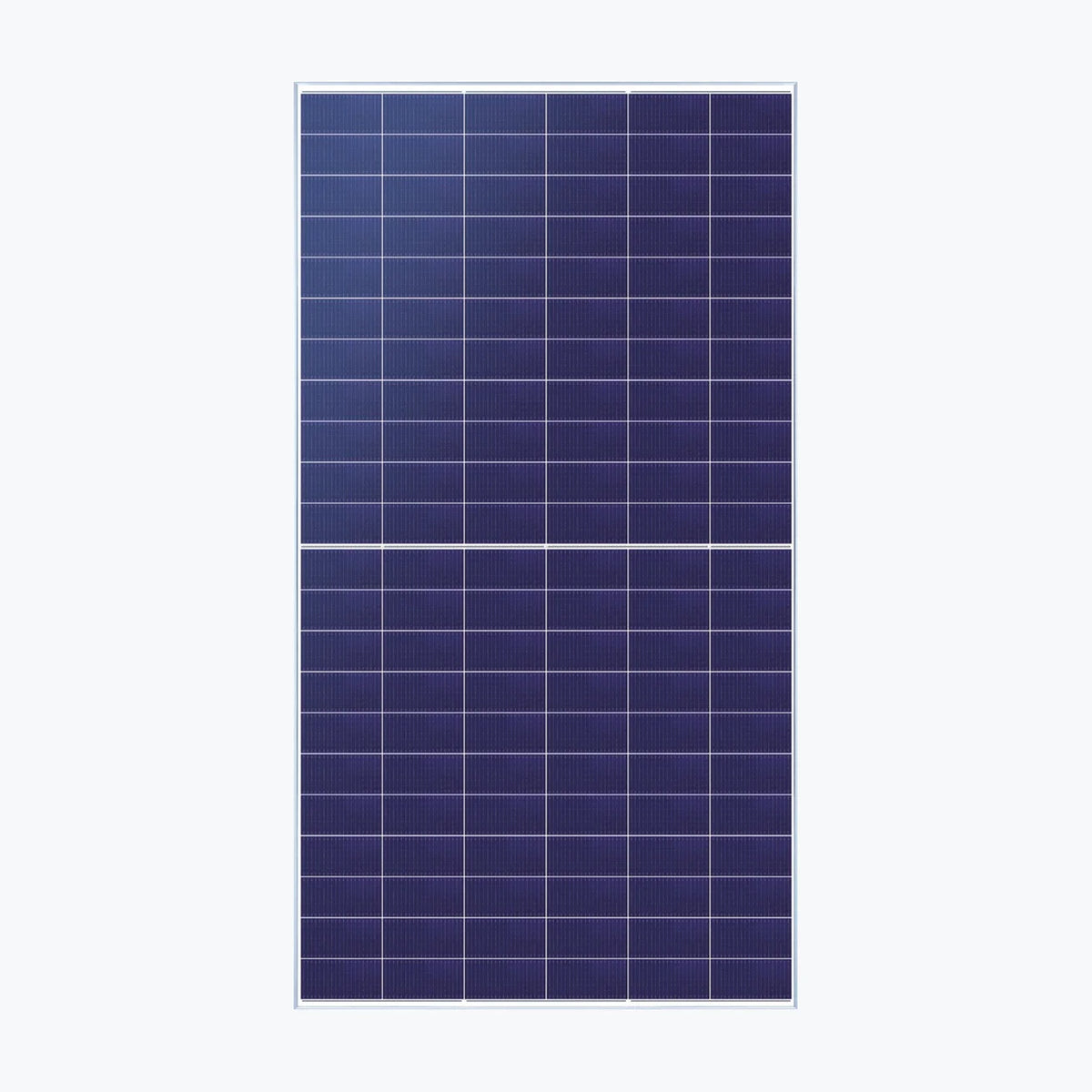

SunLink PV SL6N132D
SunLink PV SL6N132D
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-18946
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. SL6N132D Product Warranty 15 Years Power Warranty 1 Years of 99 %, 25 Years of 90.3 % Total Degradation Rate ⏳ 0.39 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 700 Wp Voltage at Maximum Power (Vmpp) 42.1 V Current at Maximum Power (Impp) 16.63 A Open Circuit Voltage (Voc) 50 V Short Circuit Current (Isc) 17.43 A Panel Efficiency 22.5 % Maximum Power (Pmax) 534 Wp Voltage at Maximum Power (Vmpp) 40.3 V Current at Maximum Power (Impp) 13.26 A Open Circuit Voltage (Voc) 47.95 V Short Circuit Current (Isc) 14.02 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.24 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2384x1303x33 mm Weight 38.3 kg Cell Size 210×210 mm Cell Number 132 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2.0 mm Encapsulant Type POE Back Cover Type PET Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 380 mm Download Manufacturer's PDF Datasheet
Technology: HJT
Power Range: 700 Wp
Panel Efficiency: 22.50%
Weight: 38.3 kg
Seller: SunLink PV
Country: China -
