Out of Stock
Sunpro Power SPDG455-N96R12
Sunpro Power SPDG455-N96R12
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-19723
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-

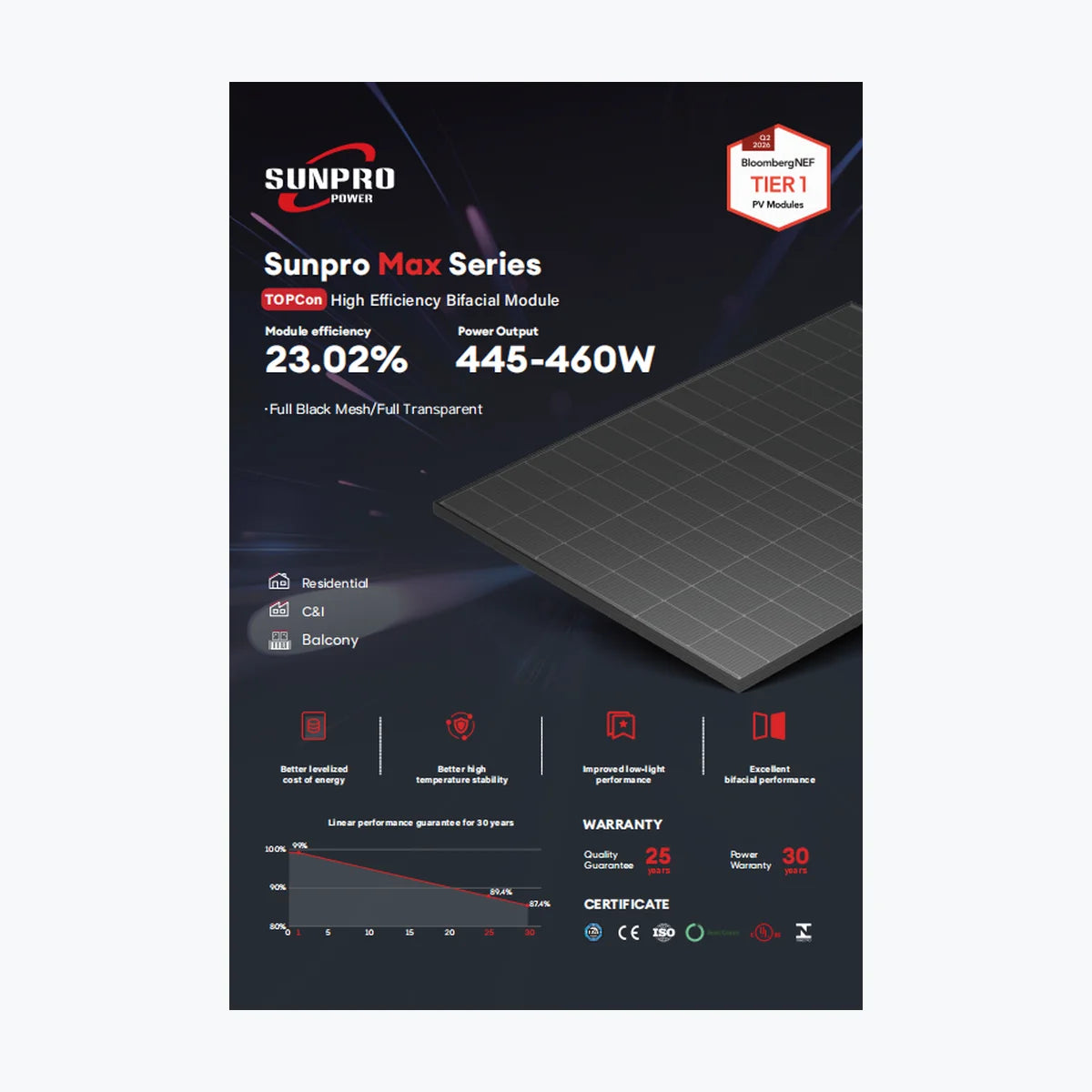

Type Monocrystalline Model No. SPDG455-N96R12 Product Warranty 25 Years Power Warranty 25 Years of 89.4 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 455 Wp Voltage at Maximum Power (Vmpp) 30.16 V Current at Maximum Power (Impp) 15.09 A Open Circuit Voltage (Voc) 36.06 V Short Circuit Current (Isc) 15.94 A Panel Efficiency 22.77 % Maximum Power (Pmax) 344.8 Wp Voltage at Maximum Power (Vmpp) 28.4 V Current at Maximum Power (Impp) 12.14 A Open Circuit Voltage (Voc) 34.2 V Short Circuit Current (Isc) 12.84 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1762x1134x30 mm Weight 23.8 kg Cell Size 182.2×105 mm Cell Number 96 Glass Type Tempered Glass Thickness 2.0 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1100 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, TOPCon, N-type
Power Range: 450 ~ 455 Wp
Panel Efficiency: 22.52 ~ 22.77 %
Weight: 23.8 kg
Seller: Zhejiang Sunpro Power Technology Co., Ltd.
Country: China -
