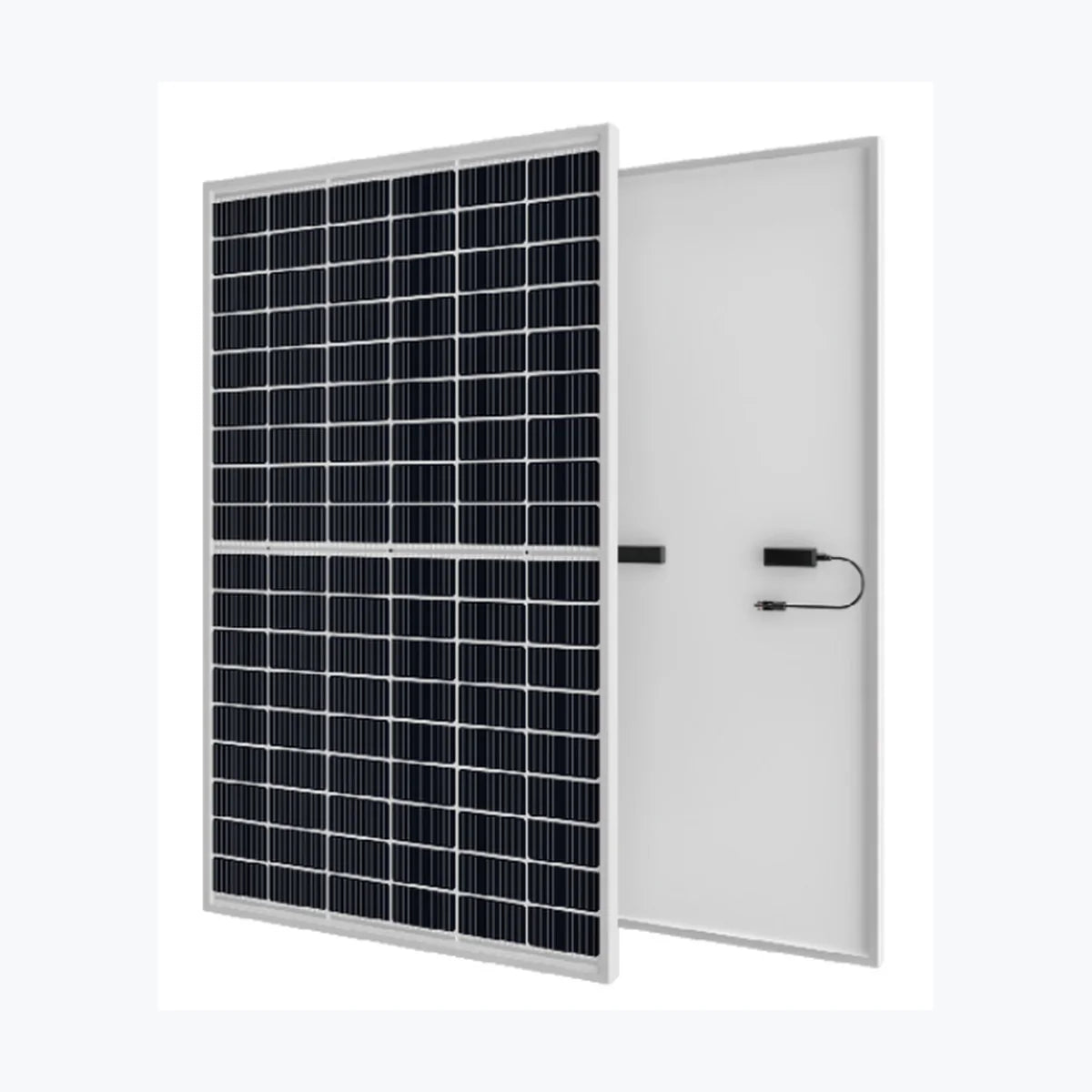

    Super Solar 385

    Super Solar 385

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-20116
    • Container price: $91.80 USD
    • Container qty: 720
    • Pallet price: $4.33 USD
    • Pallet qty: 30
    • Unit price: $0.17 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 385 Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 385 Wp Voltage at Maximum Power (Vmpp) 30.5 V Current at Maximum Power (Impp) 12.64 A Open Circuit Voltage (Voc) 36.7 V Short Circuit Current (Isc) 13.52 A Panel Efficiency 19.7 % Maximum Power (Pmax) 291.4 Wp Voltage at Maximum Power (Vmpp) 28.27 V Current at Maximum Power (Impp) 10.3 A Open Circuit Voltage (Voc) 34.64 V Short Circuit Current (Isc) 10.82 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.38 %/°C Temperature Coefficient of Voc -0.35 %/°C Temperature Coefficient of Isc 0.06 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x35 mm Weight 20.8 kg Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF

      Technology: PERC
      Power Range: 385 ~ 410 Wp
      Panel Efficiency: 19.7 ~ 21 %
      Weight: 20.8 kg
      Seller Name: Fujian Super Solar Energy Technology Co., Ltd.
      Country: China
