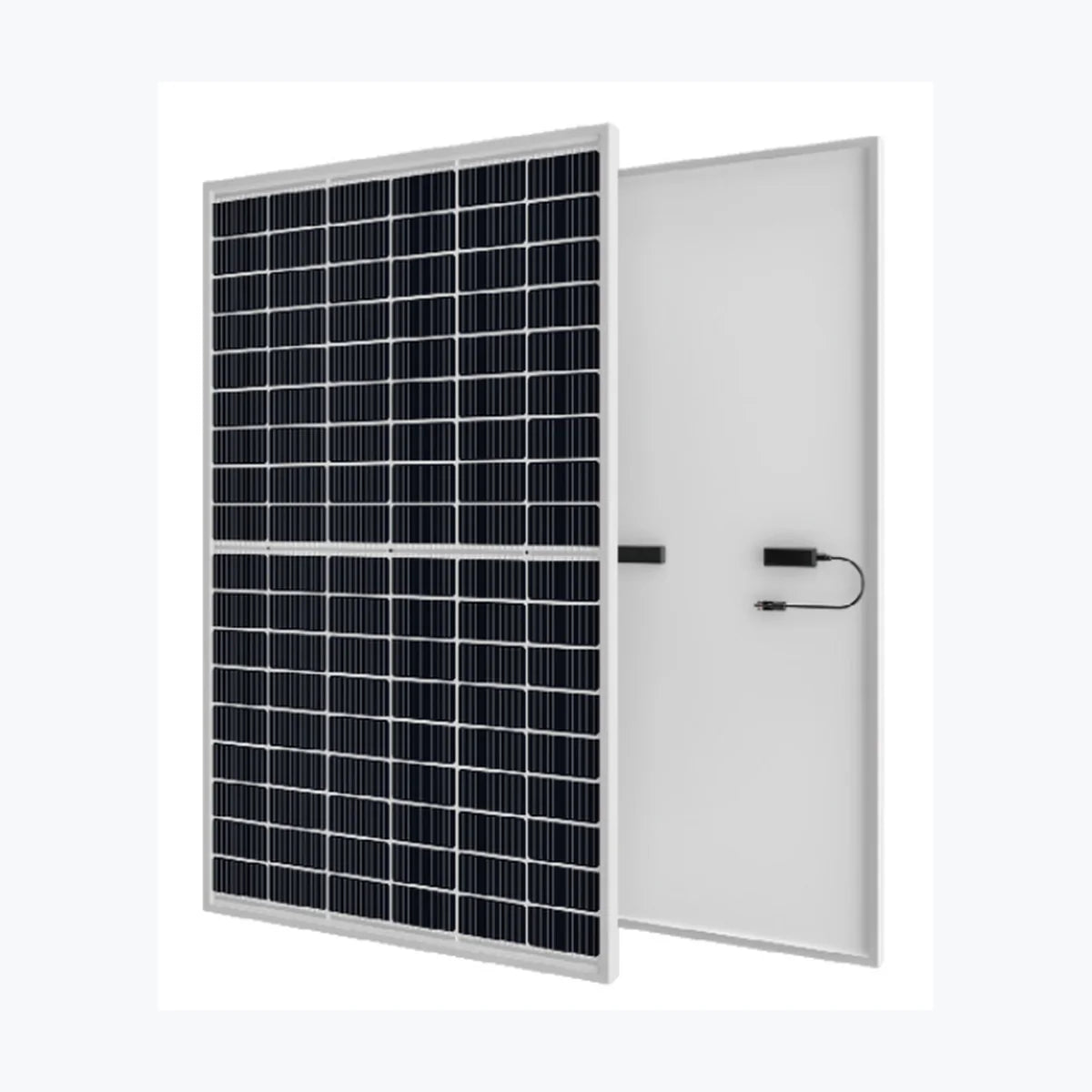

    Super Solar 410

    Super Solar 410

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-20121
    • Competitor price comparison: {"pes_price":0.17,"avg_competitor_price":64.35,"min_competitor_price":64.35,"max_competitor_price":64.35,"diff_pct":37752.9,"competitor_count":1,"checked_at":"2026-07-21"}
    • Container price: $91.80 USD
    • Container qty: 720
    • Pallet price: $4.33 USD
    • Pallet qty: 30
    • Unit price: $0.17 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 410 Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 410 Wp Voltage at Maximum Power (Vmpp) 31.4 V Current at Maximum Power (Impp) 13.04 A Open Circuit Voltage (Voc) 37.3 V Short Circuit Current (Isc) 13.95 A Panel Efficiency 21 % Maximum Power (Pmax) 310.4 Wp Voltage at Maximum Power (Vmpp) 29.11 V Current at Maximum Power (Impp) 10.63 A Open Circuit Voltage (Voc) 35.21 V Short Circuit Current (Isc) 11.16 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.38 %/°C Temperature Coefficient of Voc -0.35 %/°C Temperature Coefficient of Isc 0.06 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x35 mm Weight 20.8 kg Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF D

      Technology: PERC
      Power Range: 385 ~ 410 Wp
      Panel Efficiency: 19.7 ~ 21 %
      Weight: 20.8 kg
      Seller Name: Fujian Super Solar Energy Technology Co., Ltd.
      Country: China
