Out of Stock

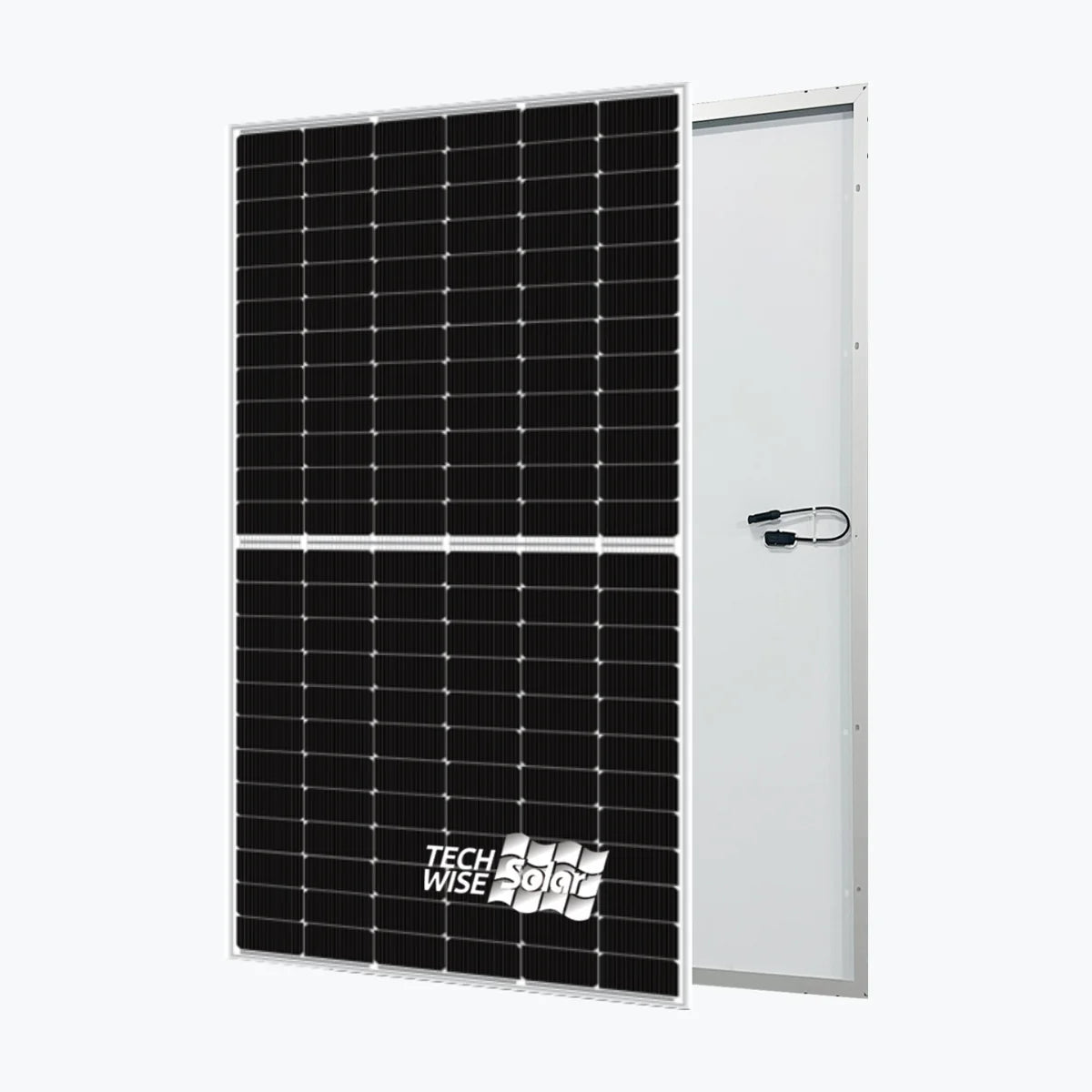

Techwise Solar 590W
Techwise Solar 590W
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-20720
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. 590W Product Warranty 12 Years Power Warranty 25 Years of 89.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance -3 ~ +3 % Maximum Power (Pmax) 590 Wp Voltage at Maximum Power (Vmpp) 44.46 V Current at Maximum Power (Impp) 13.27 A Open Circuit Voltage (Voc) 53.46 V Short Circuit Current (Isc) 13.9 A Panel Efficiency 22.83 % Maximum Power (Pmax) 445 Wp Voltage at Maximum Power (Vmpp) 40.01 V Current at Maximum Power (Impp) 11.06 A Open Circuit Voltage (Voc) 48.21 V Short Circuit Current (Isc) 11.7 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.24 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 27.8 kg Cell Number 144 Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Technology: TOPCon, N-type
Power Range: 580 ~ 600 Wp
Panel Efficiency: 22.44 ~ 23.22 %
Weight: 27.8 kg
Seller: Techwise Solar Technology Co., Ltd.
Country: China -
