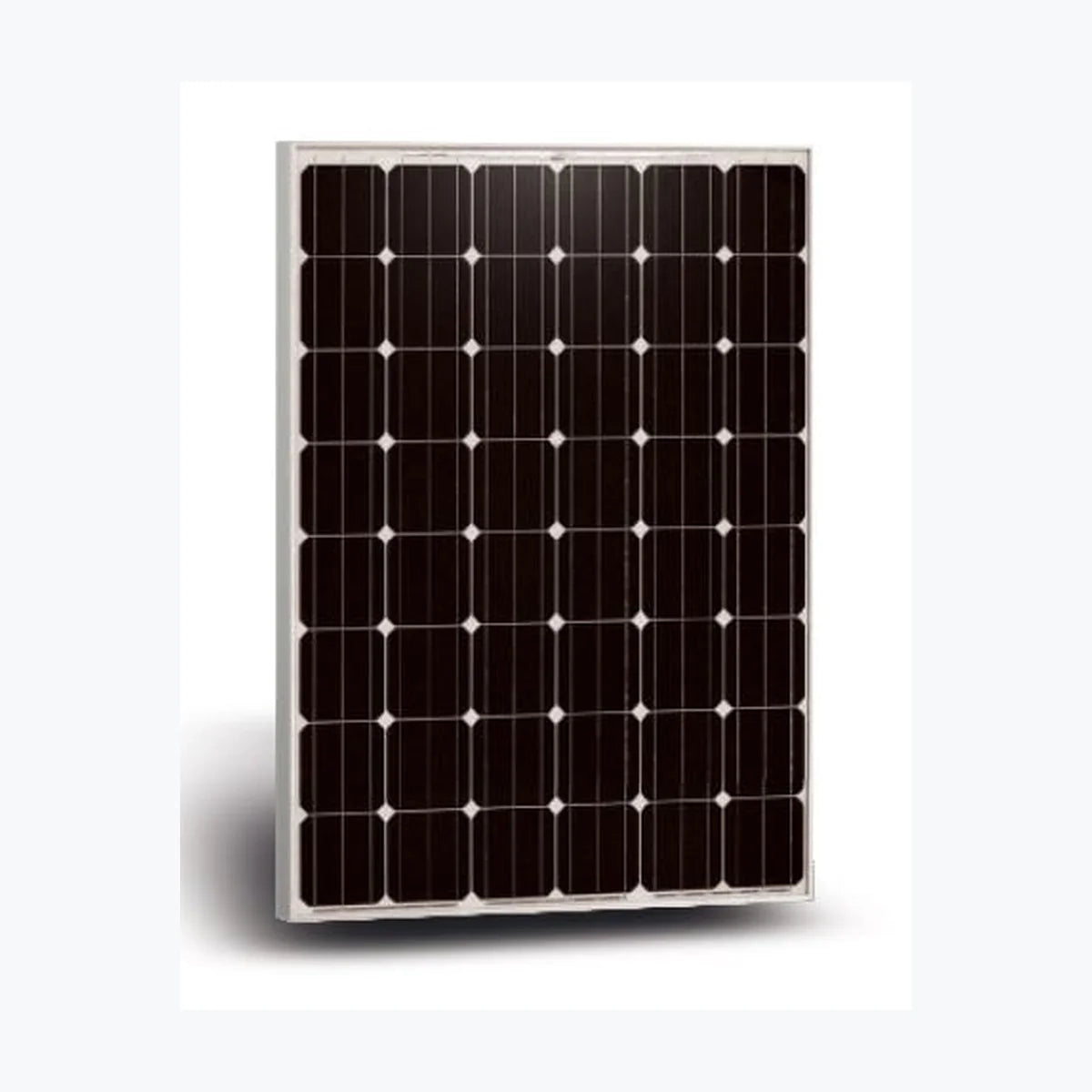

    TPL Solar TPL135S-48

    TPL Solar TPL135S-48

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-20313
    • Container price: $216.00 USD
    • Container qty: 720
    • Pallet price: $10.20 USD
    • Pallet qty: 30
    • Unit price: $0.40 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. TPL135S-48 Product Warranty 12 Years Power Warranty 12 Years of 90.2 %, 30 Years of 80.7 % Total Degradation Rate ⏳ 0.64 % Power Tolerance 0 ~ +4.1 % Maximum Power (Pmax) 135 Wp Voltage at Maximum Power (Vmpp) 25.67 V Current at Maximum Power (Impp) 5.26 A Open Circuit Voltage (Voc) 31.25 V Short Circuit Current (Isc) 5.76 A Panel Efficiency 15.61 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.36 %/°C Temperature Coefficient of Isc 0.06 %/°C Maximum System Voltage 1000 V Panel Dimension (H/W/D) 1070x808x35 mm Weight 8 kg Cell Size 125×125 mm Cell Number 48 Junction Box Diodes 3 Junction Box Protection Class IP 67 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 900 mm Download Manufacturer's PDF Datasheet

      Power Range: 115 ~ 135 Wp
      Panel Efficiency: 13.5 ~ 15.61 %
      Weight: 8 kg
      Seller Name: TPL Energy Co., Limited
      Country: China
