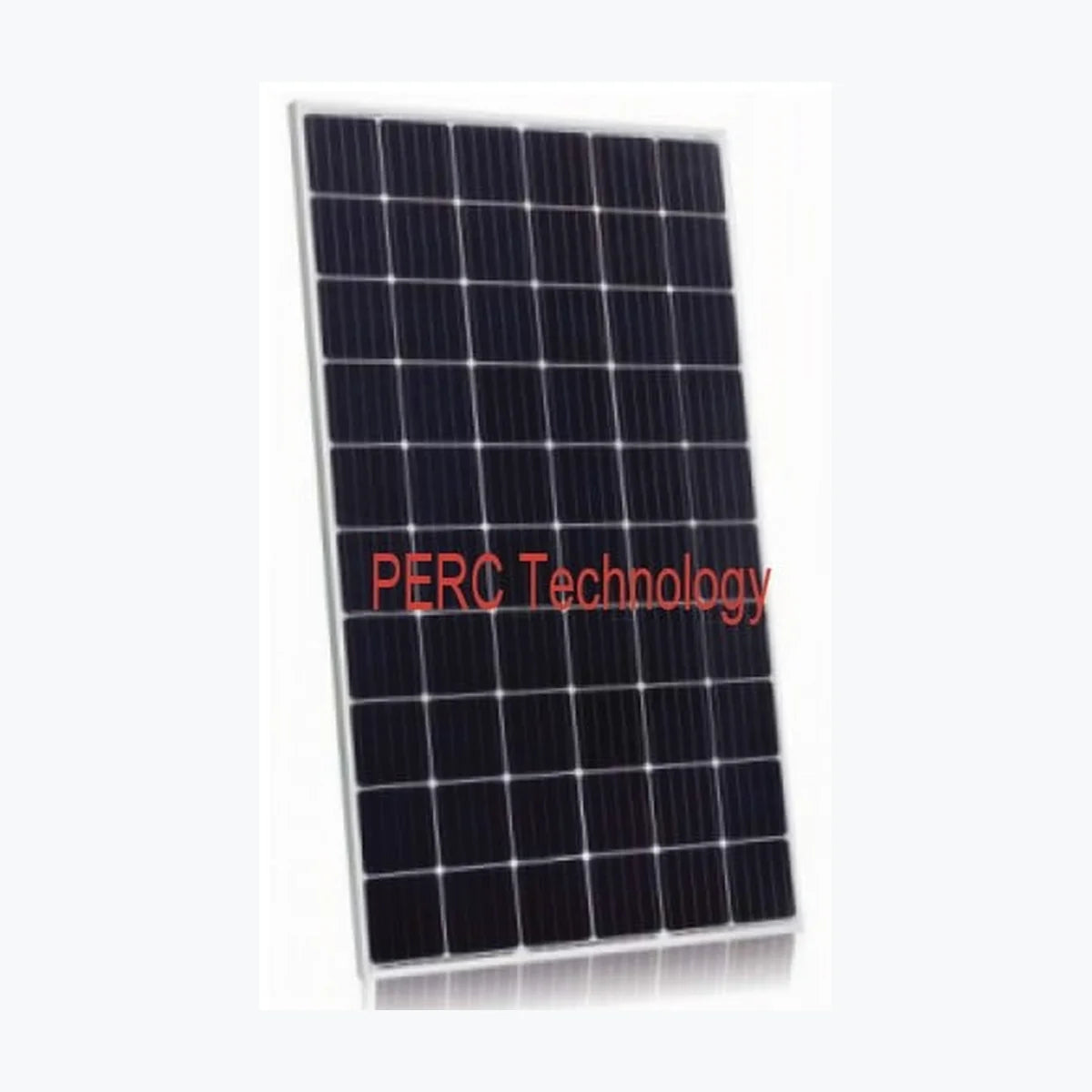

TPL Solar TPL320 M-60
PayPal Pay in 4 interest-free payments of $28.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-20376
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. TPL320 M-60 Product Warranty 12 Years Power Warranty 12 Years of 90.2 %, 30 Years of 80.7 % Total Degradation Rate ⏳ 0.64 % Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 320 Wp Voltage at Maximum Power (Vmpp) 33.48 V Current at Maximum Power (Impp) 9.58 A Open Circuit Voltage (Voc) 40.83 V Short Circuit Current (Isc) 10.05 A Panel Efficiency 19.65 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.36 %/°C Temperature Coefficient of Isc 0.06 %/°C Maximum System Voltage 1000 V Panel Dimension (H/W/D) 1640x992x35 mm Weight 18.5 kg Cell Size 156×156 mm Cell Number 60 Junction Box Diodes 3 Junction Box Protection Class IP 67 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 900 mm Download Manufacturer's PDF Datasheet
Technology: PERC
Power Range: 300 ~ 320 Wp
Panel Efficiency: 18.3 ~ 19.65 %
Weight: 18.5 kg
Seller Name: TPL Energy Co., Limited
Country: China
| SKU | PES-SPS-SOL-20376 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
