Trina 405W Solar Panel 144 Cells Bifacial TSM-405-NE09RC.05 Commercial 792 panels per Container (Truckload)

Trina 405W Solar Panel 144 Cells Bifacial TSM-405-NE09RC.05 Commercial 792 panels per Container (Truckload)

$123.75 USD
$123.75 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SPL-0204
  • Documents:

    Datasheet
  • Height: 1.18
  • Length: 69.37
  • Width: 44.65
View full details

Product Description

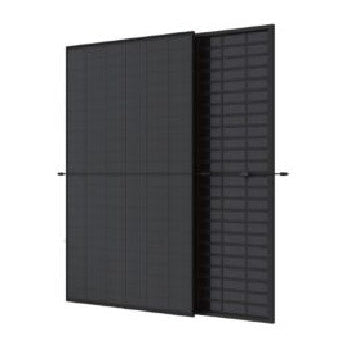

  • The Trina Solar Vertex S+ TSM‑405‑NE09RC.05 is a high-efficiency bifacial mono‑PERC module featuring 144 third-cut cells in an all-black aesthetic package.

    • Rated Power: 405 W • Module Efficiency: ~20.7 %
    • Electrical (STC): Vmpp ≈ 41.7 V • Impp ≈ 9.71 A • Voc ≈ 49.6 V • Isc ≈ 10.33 A • Tolerance: 0 / +3 W
    • Maximum System Voltage: 1500 V DC • Series Fuse: ≤25 A
    • Frame & Connectors: 30 mm anodized aluminum frame (black) • MC4‑EVO2 connector • IP68 junction box
    • Mechanical Load Ratings: 6000 Pa front (snow) / 4000 Pa rear (wind)
    • Operating Temperature: −40 °F to +185 °F (−40 °C to +85 °C)
    • Temperature Coefficients: Pmax ≈ −0.30 %/°C
    • Bifacial Gain: Up to ~30% additional energy on rear side under high-albedo installation
    • Warranty: 25‑year product warranty and 25‑year linear performance warranty (≥ 89.4 % output retention at 25 years)
    • Packing: 36 panels per pallet • 22 pallets per container = 792 panels total
