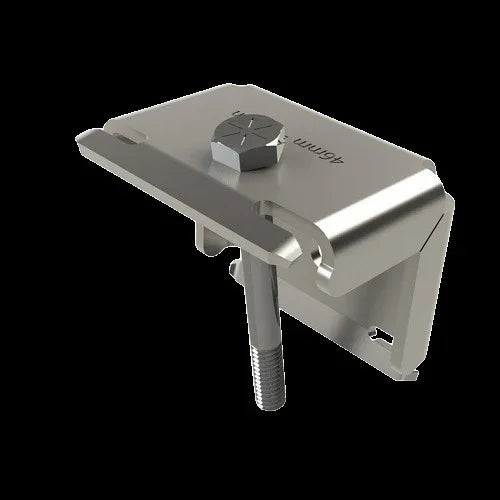

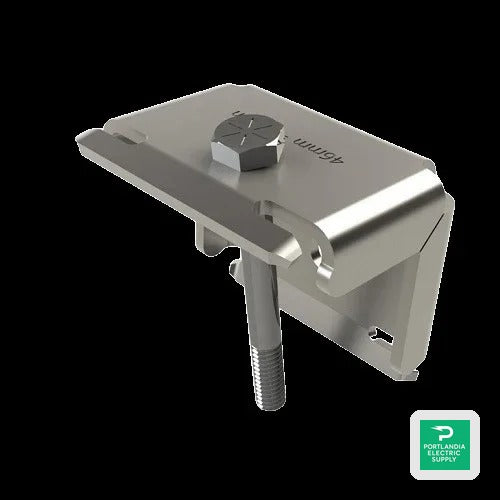

Unirac Roofmount 32-35mm - 310826 Mid Clamp

The Unirac 310826 Mid Clamp is a highly efficient and robust solution designed for securing PV modules in the solar mounting industry. This innovative clamp simplifies the installation process, supporting most framed PV modules with a 10-degree tilt, allowing for efficient solar energy harvesting. With its straightforward design and two major components, this product streamlines your solar projects, providing both high-quality performance and reliable durability for long-term use.

Product Features

Streamlined Design

The Unirac 310826 Mid Clamp features a simple yet effective design with only two key components, including a fully assembled ballast bay and a universal module clip. This means reduced preparation work and installation time, making it easier for installers to rapidly implement their solar projects without compromising on quality.

UL2703 Certified Grounding

This clamp is reinforced with a chemical locking hex bolt that guarantees a UL2703 certified grounding path from the module to the ballast bay. This essential feature not only enhances safety but also ensures compliance with regulatory standards, giving users peace of mind throughout their installation process.

Compatibility with Various Modules

Designed to support most framed PV modules effectively, the Unirac 310826 Mid Clamp provides significant flexibility, which is crucial for accommodating different installation requirements. This feature enhances usability, ensuring that the clamp works seamlessly with various brands and types of solar panels.

Easy Installation

The installation process is user-friendly, allowing installers to bond the system swiftly with just the turn of a wrench. This simplicity in operation reduces labor time and cost, making it an attractive option for both professional and DIY solar installers.

Accessory-Rich Design

The RM system is equipped to support specific installation needs by being accessory-rich. It integrates well with off-the-shelf wire management products, ensuring that users can tailor their assembly according to the project requirements.

How It Works

The Unirac 310826 Mid Clamp operates by utilizing two main components that together create a secure and reliable mounting system for solar panels. Its straightforward assembly process allows for quick fixes and modifications should they be needed, enhancing overall project efficiency.

Ballast Bay Component

The ballast bay acts as the foundational element, ensuring that the entire enforcement of the solar module is stable and secure. This component is designed to accommodate various roof types successfully, adding to its versatile application.

Universal Module Clip

This clip ensures a firm grip on the PV modules, allowing them to remain securely attached to the ballast bay. Its universal design ensures compatibility with differing sizes of solar panels, providing the flexibility needed for various installations.

Grounding Mechanism

The chemical locking hex bolt ensures an effective grounding mechanism, which is vital for safety and performance. This component plays a crucial role in preventing potential electrical hazards, enhancing the integrity of the entire system.

Specifications

Manufacturer	Unirac
Part Number	310826 Mid Clamp
Component Type	Mid Clamp
Grounding Certification	UL2703 Certified
Supports Module Tilt	10 Degrees
Warranty	20-Year Manufacturing Warranty
Weight	Lightweight Design
Installation Method	Wrench-Based Assembly
Compatibility	Most Framed PV Modules
Material	Durable Components
