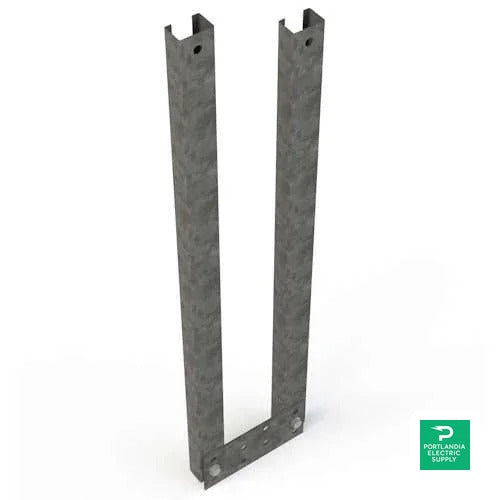

Unirac Ground Fixed TILT Diagonal Brace Assembly 20D - 404031

Unirac Ground Fixed TILT Diagonal Brace Assembly 20D - 404031

Return policy

Specification

  • SKU:PES-PA-REC-0646
  • Brands: Unirac
  • Documents:
View full details
  • Product Description

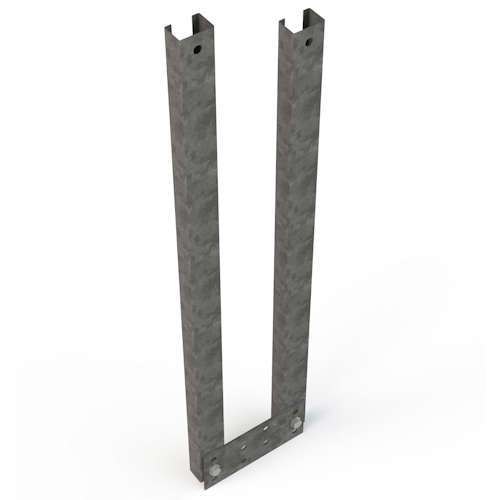

    Unirac Ground Fixed TILT Diagonal Brace Assembly 20D - 404031

    The Unirac 404031 Diagonal Brace Assembly is engineered to provide structural integrity and support for solar panel installations with a fixed tilt design. This essential component enhances the stability of solar racking systems, ensuring they can withstand adverse weather conditions while optimizing solar energy capture. With top-tier materials and design, the Unirac diagonal brace assembly is a critical element for reliable and efficient solar energy systems.

    Product Features

    Robust Construction

    The Unirac 404031 features a sturdy construction that utilizes high-quality materials, ensuring durability and long-lasting performance against the elements. This robustness plays a crucial role in the overall stability of your solar installation, making it a dependable choice for securing your solar arrays.

    Perfect Fit for Various Applications

    Designed specifically for solar energy projects, the 404031 diagonal brace fits seamlessly into Unirac's Ground Fixed Tilt systems. This targeted engineering guarantees that the assembly enhances the structural framework, accommodating a variety of installation scenarios easily.

    Easy Installation

    Unirac€™s diagonal brace assembly simplifies the installation process, allowing for a straightforward setup without the need for complex tools. Its user-friendly design means that even those with minimal experience can efficiently integrate it into their solar racking systems.

    Protection Against Environmental Stress

    This assembly is designed to withstand various environmental stresses such as wind, snow load, and seismic activity. By using the Unirac 404031, users can have peace of mind knowing their solar systems are shielded against extreme conditions, thus maintaining optimal performance.

    Compatibility with Other Components

    The 404031 braces are engineered to be fully compatible with other Unirac components, ensuring a cohesive assembly that adheres to Unirac's high standards of quality and performance. This compatibility streamlines the procurement process for contractors and installers.

    How It Works

    The Unirac Diagonal Brace Assembly functions as a diagonal reinforcement to the main structure of solar racking systems. It transfers loads effectively, ensuring the entire assembly remains stable under varying conditions day after day.

    Enhanced Load Distribution

    This component assists in distributing the loads experienced during extreme weather, reducing stress on other structural elements throughout the racking system. This distribution is key to prolonging the lifespan of your solar installation.

    Stability in Variable Climates

    The diagonal brace€™s structure is designed to adapt to changes in external loads, providing stability in climates where weather conditions vary greatly. This adaptability makes it an invaluable part of any solar energy system.

    Integration with Unirac Systems

    Specifically designed for use with Unirac€™s Ground Fixed TILT systems, the 404031 contributes to an integrated approach to solar installation, enabling smoother operations and better performance across the board.

    Specifications

    Item 1
    Quantity 1
    Description Front Diagonal Brace
    Length 4'-5 3/4"
    Gauge 14 Gauge
    Item 2
    Quantity 1
    Description Rear Diagonal Brace
    Length 4'-2"
    Gauge 14 Gauge
    Item 3
    Quantity 1
    Description Diagonal Brace Plate
    Length -
    Gauge -
