Out of Stock

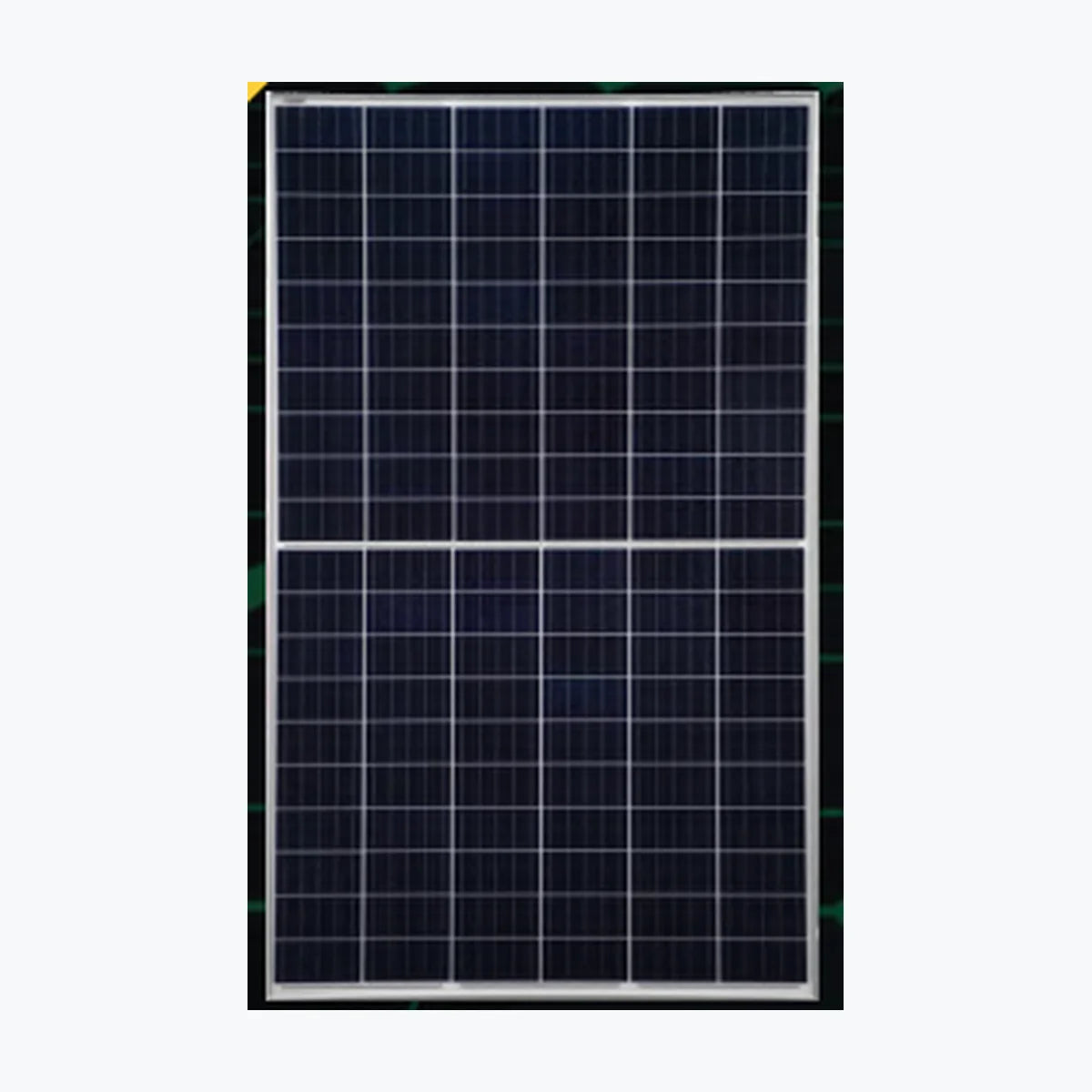

VDS Renewable 330
VDS Renewable 330
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-22049
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Model No. 330 Product Warranty 12 Years Power Warranty 10 Years of 92.6 %, 25 Years of 84.3 % Total Degradation Rate ⏳ 0.63 % Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 330 Wp Voltage at Maximum Power (Vmpp) 34.7 V Current at Maximum Power (Impp) 9.52 A Open Circuit Voltage (Voc) 40.7 V Short Circuit Current (Isc) 10.13 A Panel Efficiency 19.5 % Maximum Power (Pmax) 248.6 Wp Voltage at Maximum Power (Vmpp) 31.9 V Current at Maximum Power (Impp) 7.79 A Open Circuit Voltage (Voc) 38.1 V Short Circuit Current (Isc) 8.18 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1684x1002x35 mm Weight 19 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 350 mm Download Manufacturer's PDF Datasheet
Technology: PERC
Power Range: 325 ~ 345 Wp
Panel Efficiency: 19.2 ~ 20.4 %
Weight: 19 kg
Seller: Jiangsu VDS Renewable Technology Co., Ltd.
Country: China -
