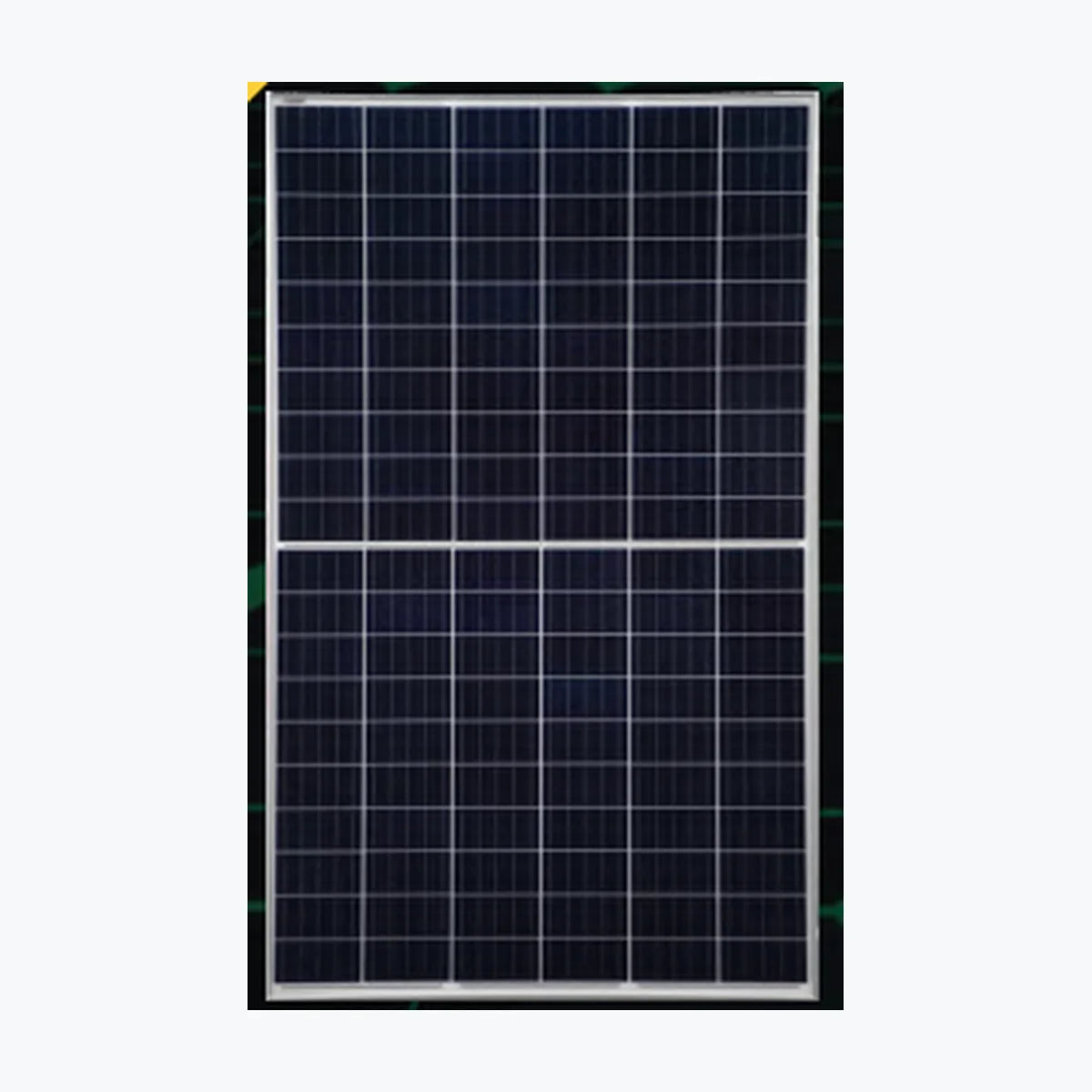

    VDS Renewable 340

    VDS Renewable 340

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-22051
    • Container price: $91.80 USD
    • Container qty: 720
    • Pallet price: $4.33 USD
    • Pallet qty: 30
    • Unit price: $0.17 USD
    View full details

    Product Description

    • Model No. 340 Product Warranty 12 Years Power Warranty 10 Years of 92.6 %, 25 Years of 84.3 % Total Degradation Rate ⏳ 0.63 % Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 340 Wp Voltage at Maximum Power (Vmpp) 35.1 V Current at Maximum Power (Impp) 9.68 A Open Circuit Voltage (Voc) 41.1 V Short Circuit Current (Isc) 10.29 A Panel Efficiency 20.1 % Maximum Power (Pmax) 255.5 Wp Voltage at Maximum Power (Vmpp) 32.3 V Current at Maximum Power (Impp) 7.92 A Open Circuit Voltage (Voc) 38.5 V Short Circuit Current (Isc) 8.31 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1684x1002x35 mm Weight 19 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 350 mm Download Manufacturer's PDF Datasheet

      Technology: PERC
      Power Range: 325 ~ 345 Wp
      Panel Efficiency: 19.2 ~ 20.4 %
      Weight: 19 kg
      Seller: Jiangsu VDS Renewable Technology Co., Ltd.
      Country: China
