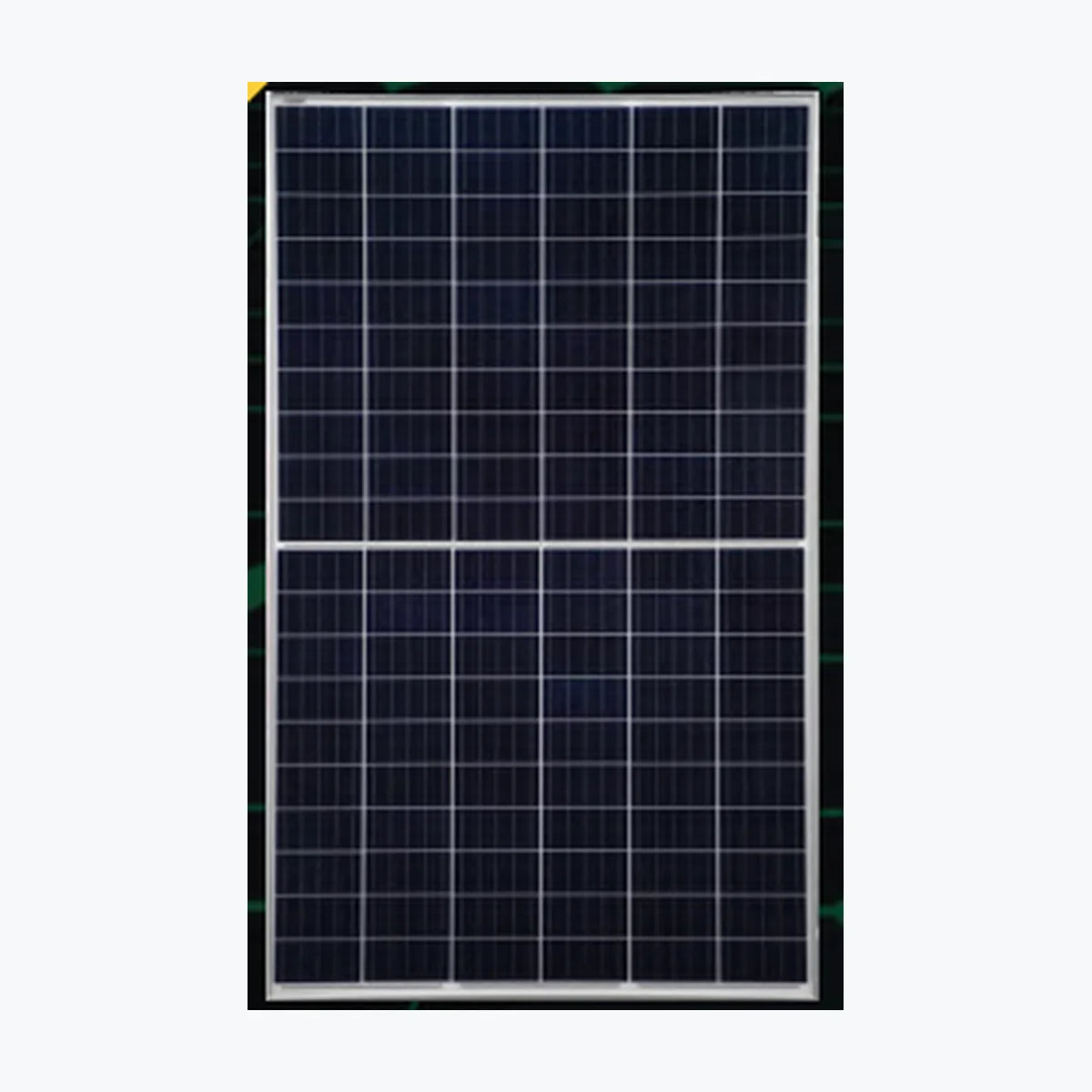

VDS Renewable 345
PayPal Pay in 4 interest-free payments of $30.25 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-22052
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Model No. 345 Product Warranty 12 Years Power Warranty 10 Years of 92.6 %, 25 Years of 84.3 % Total Degradation Rate ⏳ 0.63 % Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 345 Wp Voltage at Maximum Power (Vmpp) 35.3 V Current at Maximum Power (Impp) 9.78 A Open Circuit Voltage (Voc) 41.3 V Short Circuit Current (Isc) 10.37 A Panel Efficiency 20.4 % Maximum Power (Pmax) 259.3 Wp Voltage at Maximum Power (Vmpp) 32.5 V Current at Maximum Power (Impp) 7.98 A Open Circuit Voltage (Voc) 38.7 V Short Circuit Current (Isc) 8.37 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1684x1002x35 mm Weight 19 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 350 mm Download Manufacturer's PDF Datasheet
Technology: PERC
Power Range: 325 ~ 345 Wp
Panel Efficiency: 19.2 ~ 20.4 %
Weight: 19 kg
Seller: Jiangsu VDS Renewable Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-22052 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
