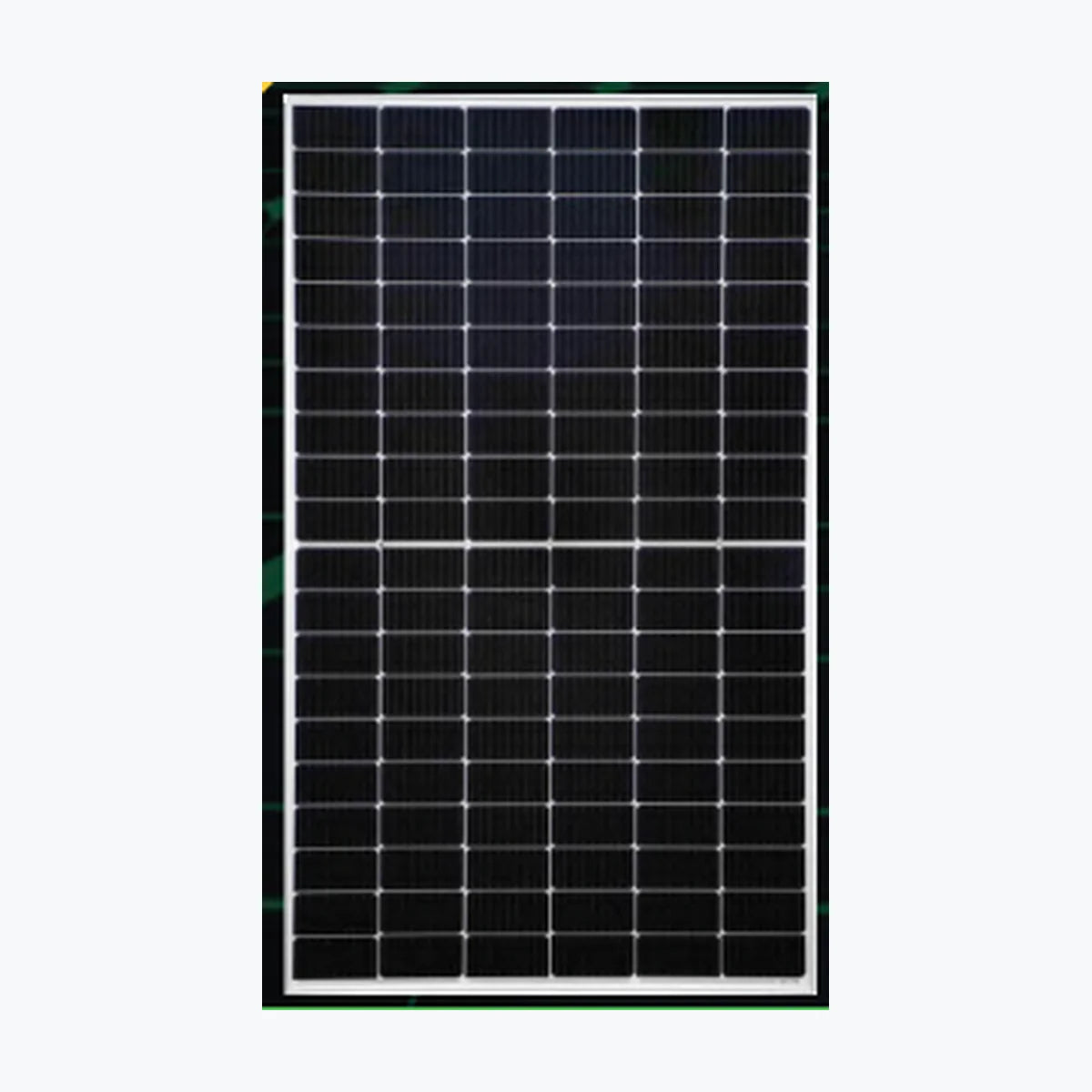

VDS Renewable 380
VDS Renewable 380
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-22058
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. 380 Product Warranty 12 Years Power Warranty 10 Years of 92.6 %, 25 Years of 84.3 % Total Degradation Rate ⏳ 0.63 % Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 380 Wp Voltage at Maximum Power (Vmpp) 34.7 V Current at Maximum Power (Impp) 10.96 A Open Circuit Voltage (Voc) 41.3 V Short Circuit Current (Isc) 11.63 A Panel Efficiency 20.8 % Maximum Power (Pmax) 285.4 Wp Voltage at Maximum Power (Vmpp) 32.4 V Current at Maximum Power (Impp) 8.81 A Open Circuit Voltage (Voc) 39.1 V Short Circuit Current (Isc) 9.29 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1756x1039x35 mm Weight 19.8 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Pro
Power Range: 355 ~ 380 Wp
Panel Efficiency: 19.4 ~ 20.8 %
Weight: 19.8 kg
Seller Name: Jiangsu VDS Renewable Technology Co., Ltd.
Country: China -
