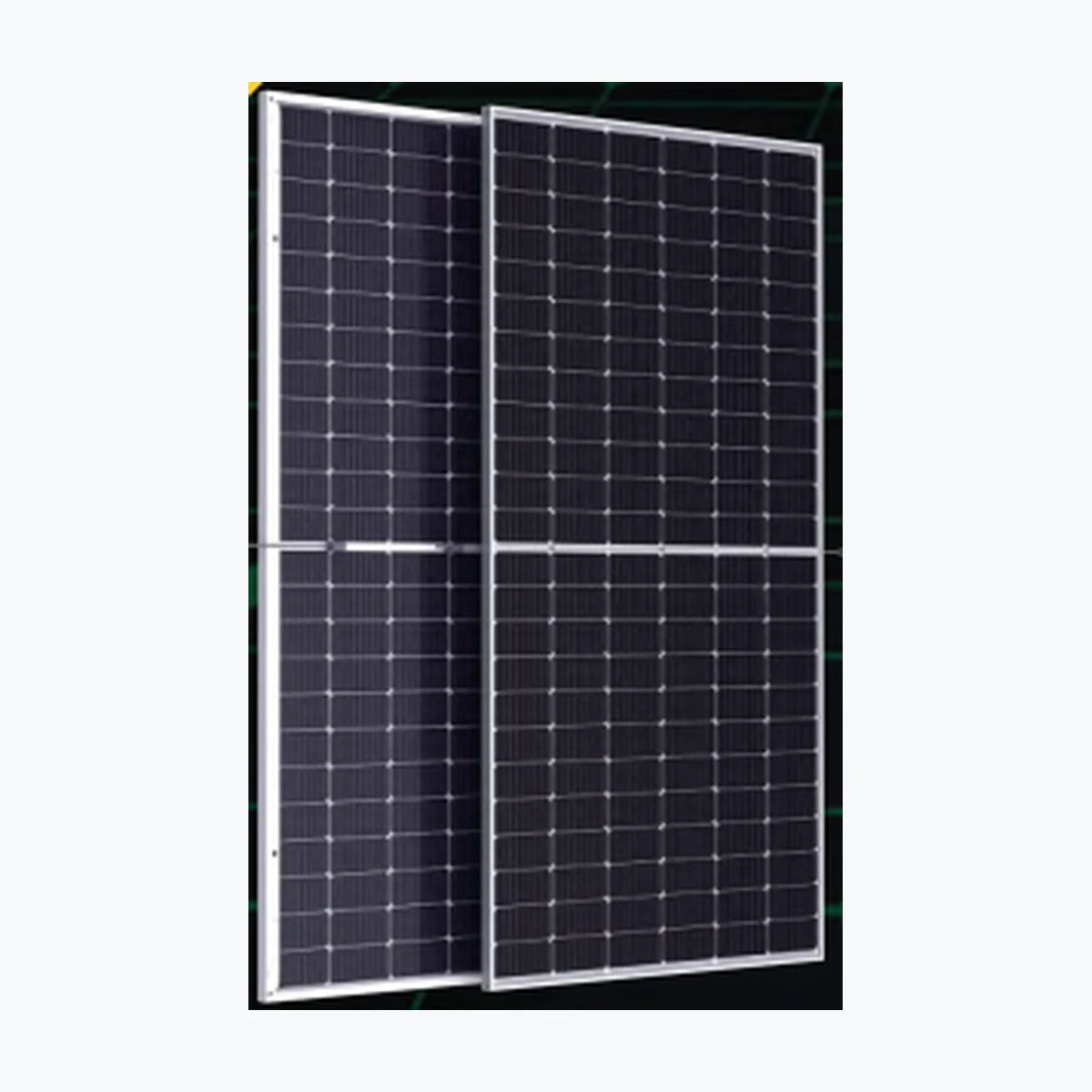

    VDS Renewable 430

    VDS Renewable 430

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-22064
    • Container price: $64.80 USD
    • Container qty: 720
    • Pallet price: $3.06 USD
    • Pallet qty: 30
    • Unit price: $0.12 USD
    View full details

    Product Description

    • Model No. 430 Product Warranty 12 Years Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 430 Wp Voltage at Maximum Power (Vmpp) 40.5 V Current at Maximum Power (Impp) 10.62 A Open Circuit Voltage (Voc) 48.7 V Short Circuit Current (Isc) 11.2 A Panel Efficiency 19.7 % Maximum Power (Pmax) 325 Wp Voltage at Maximum Power (Vmpp) 38.2 V Current at Maximum Power (Impp) 8.51 A Open Circuit Voltage (Voc) 46 V Short Circuit Current (Isc) 9.02 A Temperature 41±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2095x1039x30 mm Weight 28.5 kg Cell Number 144 Glass Type Anti-reflection Coating Glass Thickness 2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 350 mm Download Manufacturer's PDF Datasheet

      Technology: Bifacial
      Power Range: 430 ~ 450 Wp
      Panel Efficiency: 19.7 ~ 20.6 %
      Weight: 28.5 kg
      Seller Name: Jiangsu VDS Renewable Technology Co., Ltd.
      Country: China
