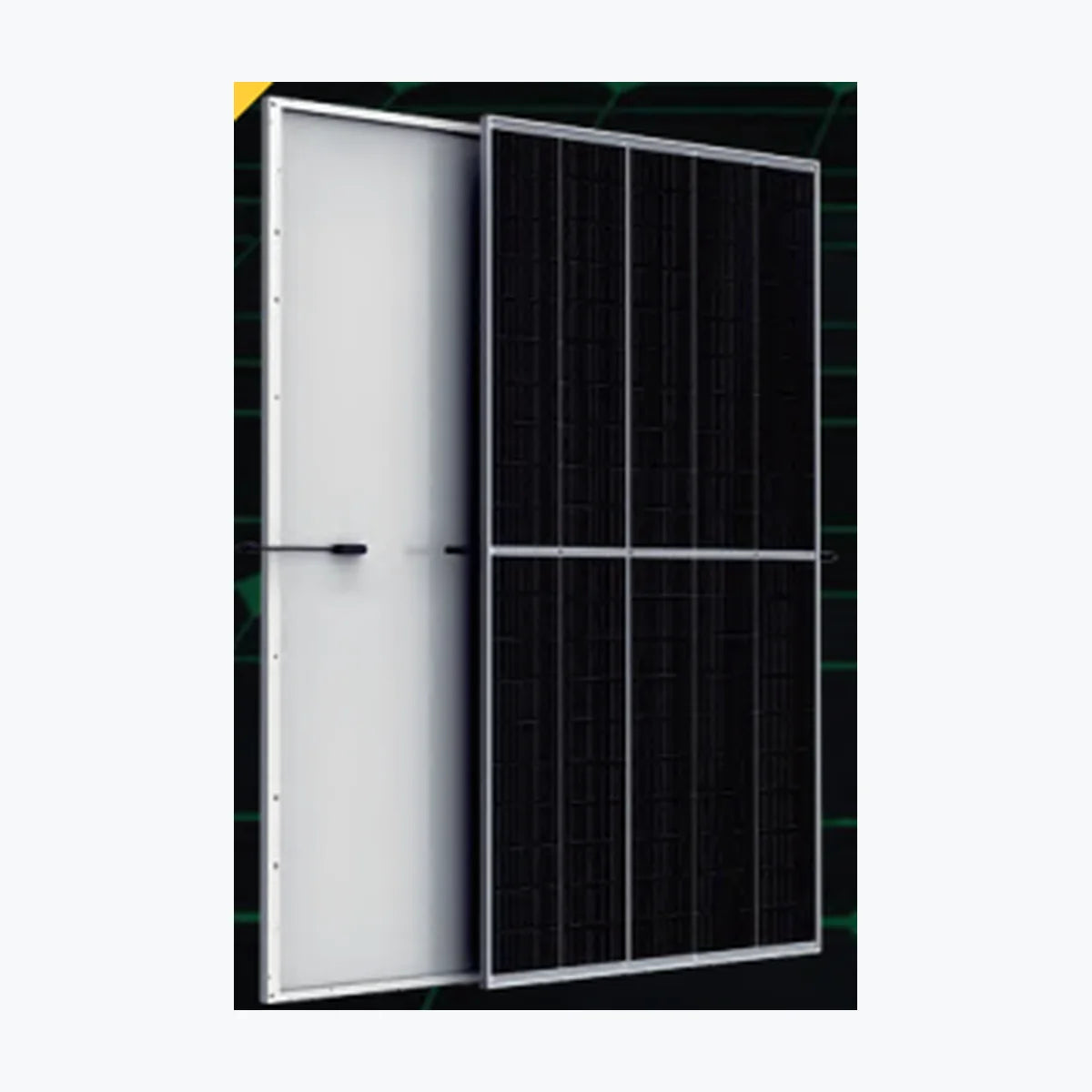

    VDS Renewable 500

    VDS Renewable 500

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-22072
    • Container price: $48.60 USD
    • Container qty: 720
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 500 Product Warranty 12 Years Power Warranty 12 Years of 91.95 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 500 Wp Voltage at Maximum Power (Vmpp) 28.23 V Current at Maximum Power (Impp) 17.72 A Open Circuit Voltage (Voc) 34.02 V Short Circuit Current (Isc) 18.81 A Panel Efficiency 21 % Maximum Power (Pmax) 378.51 Wp Voltage at Maximum Power (Vmpp) 26.27 V Current at Maximum Power (Impp) 14.41 A Open Circuit Voltage (Voc) 32.06 V Short Circuit Current (Isc) 15.16 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2172x1096x35 mm Weight 26.1 kg Cell Number 110 Glass Type Anti-reflection Coating Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Protection

      Power Range: 495 ~ 505 Wp
      Panel Efficiency: 20.8 ~ 21.2 %
      Weight: 26.1 kg
      Seller Name: Jiangsu VDS Renewable Technology Co., Ltd.
      Country: China
