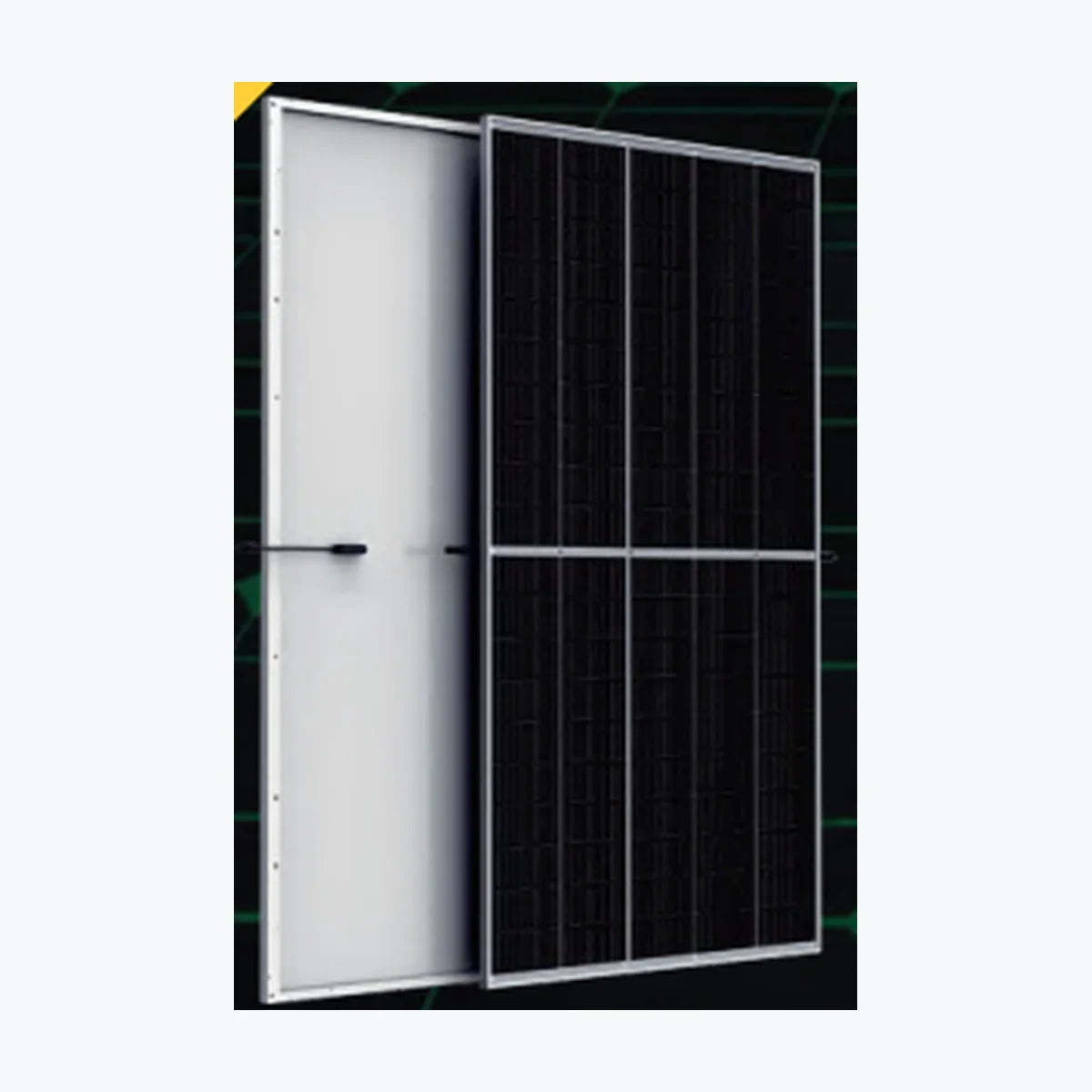

VDS Renewable 505
PayPal Pay in 4 interest-free payments of $44.25 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-22073
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. 505 Product Warranty 12 Years Power Warranty 12 Years of 91.95 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 505 Wp Voltage at Maximum Power (Vmpp) 28.44 V Current at Maximum Power (Impp) 17.76 A Open Circuit Voltage (Voc) 34.28 V Short Circuit Current (Isc) 18.86 A Panel Efficiency 21.2 % Maximum Power (Pmax) 382.3 Wp Voltage at Maximum Power (Vmpp) 26.47 V Current at Maximum Power (Impp) 14.44 A Open Circuit Voltage (Voc) 32.3 V Short Circuit Current (Isc) 15.19 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2172x1096x35 mm Weight 26.1 kg Cell Number 110 Glass Type Anti-reflection Coating Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Protection
Power Range: 495 ~ 505 Wp
Panel Efficiency: 20.8 ~ 21.2 %
Weight: 26.1 kg
Seller Name: Jiangsu VDS Renewable Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-22073 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
