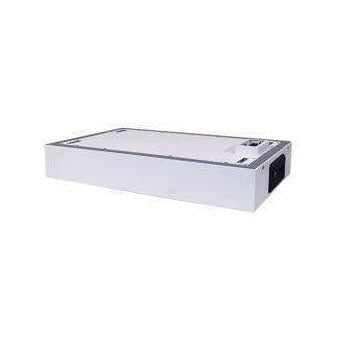

BYD 2.5 HV Battery Module box - B-Plus-H

BYD 2.5 HV Battery Module box - B-Plus-H

Return policy

Specification

  • SKU:PES-ESS-BTS-0180
  • Brands: BYD
  • Compliance special features:
    • Scalable / Stackable
  • Documents:
  • Height: 35
  • Length: 99.4
  • Width: 60.2
View full details
  • Product Description

    BYD B-Plus-H 2.5 HV Battery Module Box

    The BYD B-Plus-H battery module is designed for high efficiency and performance. As a part of BYD's esteemed Battery-Box series, this product promises robust energy solutions with flexible and scalable applications. With its innovative modular design and international certifications, the B-Plus-H satisfies both residential and commercial energy demands.

    Product Features

    Recognized Innovation

    The BYD B-Plus-H stands out with accolades such as the EUPD Top Brand for Storage seal and PV Magazine's Innovation Award, underscoring its cutting-edge technology and reliability.

    Modular Design

    Designed with a modular approach, this battery system offers maximum flexibility by allowing customized setups for varied energy requirements, enhancing user convenience and satisfaction.

    Automotive Standards

    Adhering to automotive-grade standards, the B-Plus-H delivers superior safety and performance, ensuring longevity and reliability in diverse use cases.

    Extended Warranty

    Each battery is backed by a 10-year performance warranty, underlining BYD's commitment to quality and consumer trust in their products.

    Global Safety Certifications

    The B-Plus-H battery is certified by international standards including TUV, UL, CE, and RCM, providing peace of mind with proven safety and compliance.

    How It Works

    Operating without internal cables, the B-Plus-H employs a clever modular format that allows 5 to 9 battery modules to interface seamlessly, optimizing both storage capacity and energy output.

    Modular Connectivity

    Each Battery Box HV unit comprises multiple B-Plus H 1.28 modules, enabling tailored energy storage solutions ranging up to 11.52 kWh per unit.

    Scalable Capacity

    Users can expand the system by connecting up to 5 identical Battery-Box HV units in parallel, achieving a substantial capacity of 57.6 kWh for larger energy needs.

    Efficient Energy Flow

    The system maintains high round-trip efficiency (‰¥95.3%), ensuring minimal energy loss during conversion and storage processes.

    Specifications

    Usable Energy 6.40 kWh to 11.52 kWh
    Max Output Power 6.40 kW to 11.52 kW
    Peak Output Power 12.80 kW to 23.04 kW for 5 mins
    Nominal Voltage 256 V to 460 V
    Operating Voltage Range 200-500 V
    Communication RS485 / CAN
    Dimensions (W/H/D) 580 x 894 x 380 mm to 580 x 1374 x 380 mm
    Weight 148 kg to 252 kg
    Enclosure Protection Rating IP55
    Certification & Safety Standard UL1642, TUV(IEC62619), CE, RCM, UN38.3
