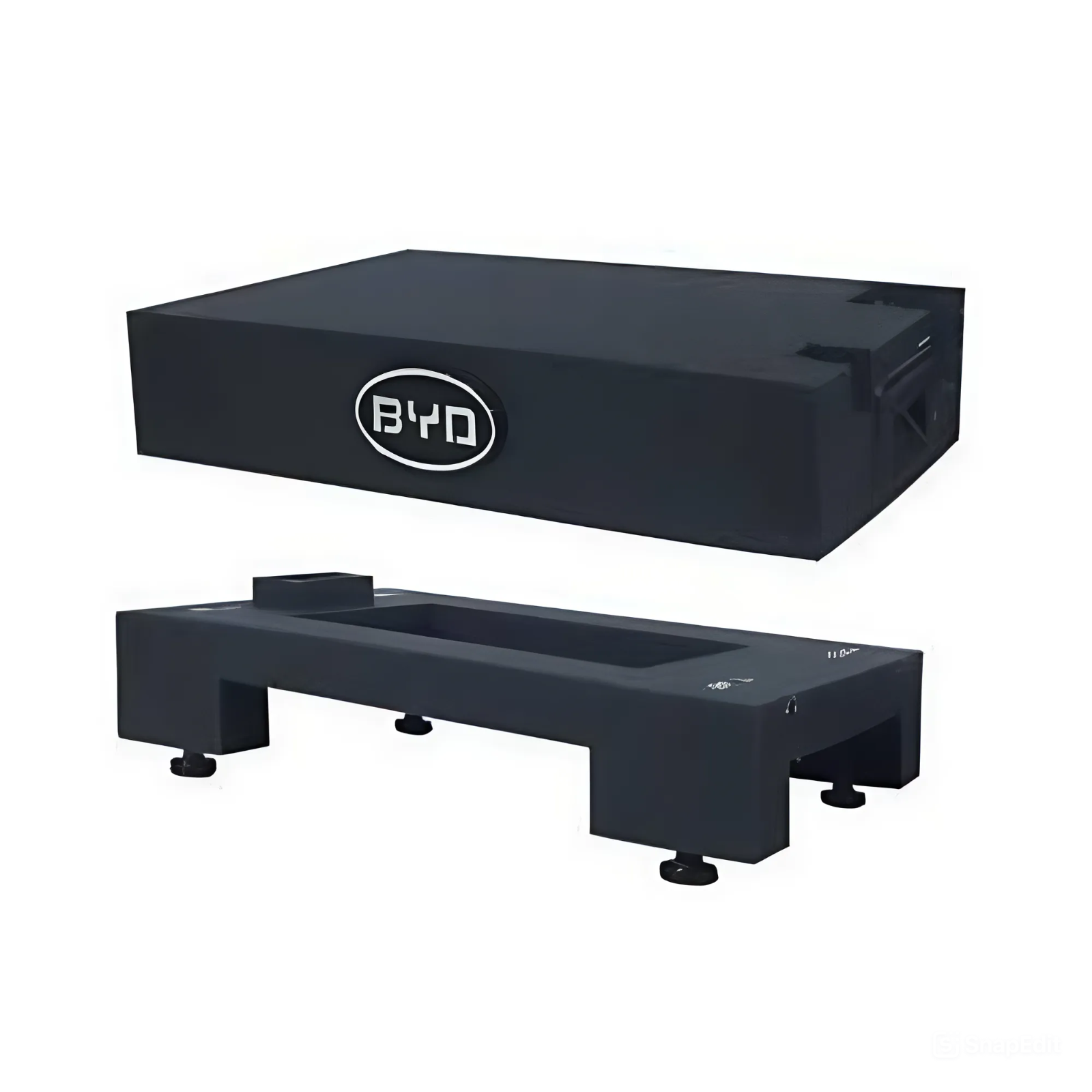

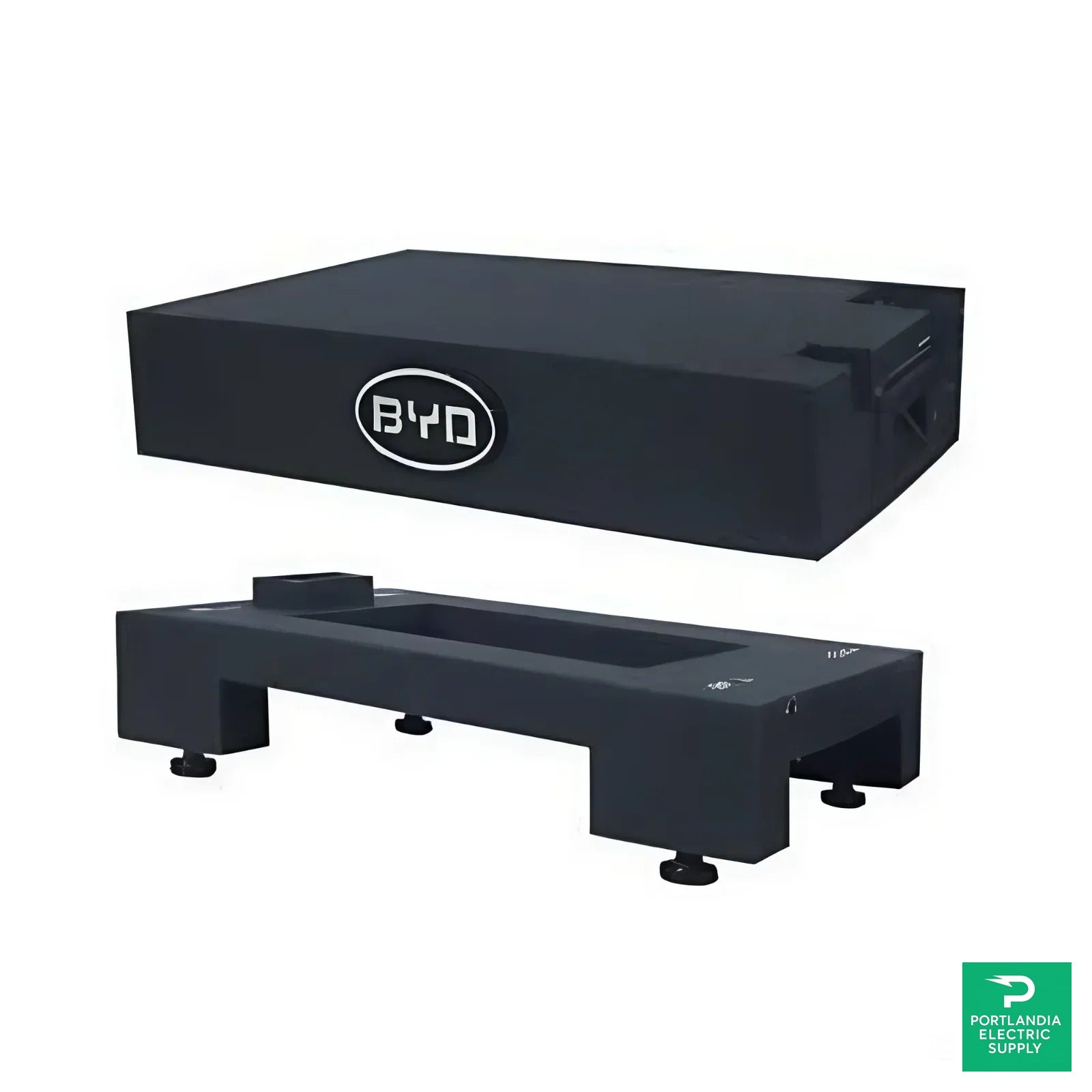

BYD Battery-Box Premium HVL BCU and Base only

BYD Battery-Box Premium HVL BCU and Base only

In Stock

Get yours today!

9+ sold

In the last 7 days

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In Stock

SKU PES-PA-ELC-0113

BYD Battery-Box Premium HVL BCU and Base only

$974.28 USD

$ $974.28 USD

Sale Sold out

Quantity

Secure Payment Methods

In Stock

Get yours today!

9+ sold

In the last 7 days

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

Request a Free Quote

Technical Details

SKU:PES-PA-ELC-0113
Brands: BYD
Documents:
Datasheet
Mpn number: HVL BCU
Height:29.7
Width:58.4
Length:31.1

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

BYD Battery-Box Control Unit for High Voltage Lithium Battery

The BYD HVL BCU is designed to offer reliable energy solutions for both on-grid and off-grid applications. By featuring a modular design, this product ensures maximum flexibility, efficiency, and safety, making it an ideal choice for various energy storage needs. The use of cobalt-free lithium iron phosphate technology enhances safety and extends the cycle life, while maintaining substantial energy storage capabilities. Compatible with a wide range of high voltage inverters, this unit provides robust performance and exceptional reliability.

Product Features

Scalable Modular Design

One of the standout features of the BYD HVL BCU is its modular design, incorporating multiple HVL battery modules to build a system that meets your specific energy requirements from 12 to 32 kWh.

High-Powered Emergency Backup

With the capability of delivering high-powered emergency backup, the BYD HVL BCU ensures consistent power availability, even in unpredictable situations, enhancing overall energy security.

Flexible Installation Options

The design allows for easy installation without additional wiring, streamlining the setup process and facilitating adaptability for future capacity expansion needs.

Advanced Lithium Technology

Utilizing lithium iron phosphate cell technology, this product guarantees top-notch safety, improved power delivery, and extended life cycles due to its cobalt-free composition.

Industry-Leading Efficiency

The BYD HVL BCU delivers exceptional round-trip efficiency, achieving rates of 96% or higher, which translates into superior energy usage and minimal loss.

How It Works

This system operates by integrating multiple HVL modules within a series connection to deliver a high-voltage output, suitable for various power applications. Users can benefit from simple plug-and-play installation thanks to its innovative modular design. A range of compatible inverters allows users to tailor their setup depending on specific functional requirements.

Modular Battery Setup

The HVL setup consists of three to eight modules connected in series, allowing for seamless scalability in energy capacity, accommodating different usage scales.

Plug-and-Play Design

Engineered for simplicity, the patented modular plug design eliminates internal wiring needs, making initial setup and future expansions straightforward.

High-Versatility Compatibility

This unit supports a variety of top-tier high voltage inverters, ensuring versatile integration options across different systems and applications.

Specifications

Battery Module	4 kWh, 51.2 V, 99.2 lb
Usable Energy	12 to 32 kWh
Max Output Current	50 A
Peak Output Current	75 A, 3 s
Nominal Voltage Range	153.6 to 409.6 V
Operating Voltage Range	120 to 460.8 V
Dimensions (H/W/D)	Varies, 11.7 inch depth
Weight Range	330.7 to 826.7 lb
Operating Temperature	14 °F to 122 °F
Battery Cell Technology	Lithium Iron Phosphate (cobalt-free)
Communication	CAN/RS485
Enclosure Protection Rating	IP55
Round-trip Efficiency	‰¥96%
Certification	UL1973 / IEC62619 / FCC / UN38.3
Applications	On Grid / On Grid + Backup / Off Grid
Warranty	10 Years
