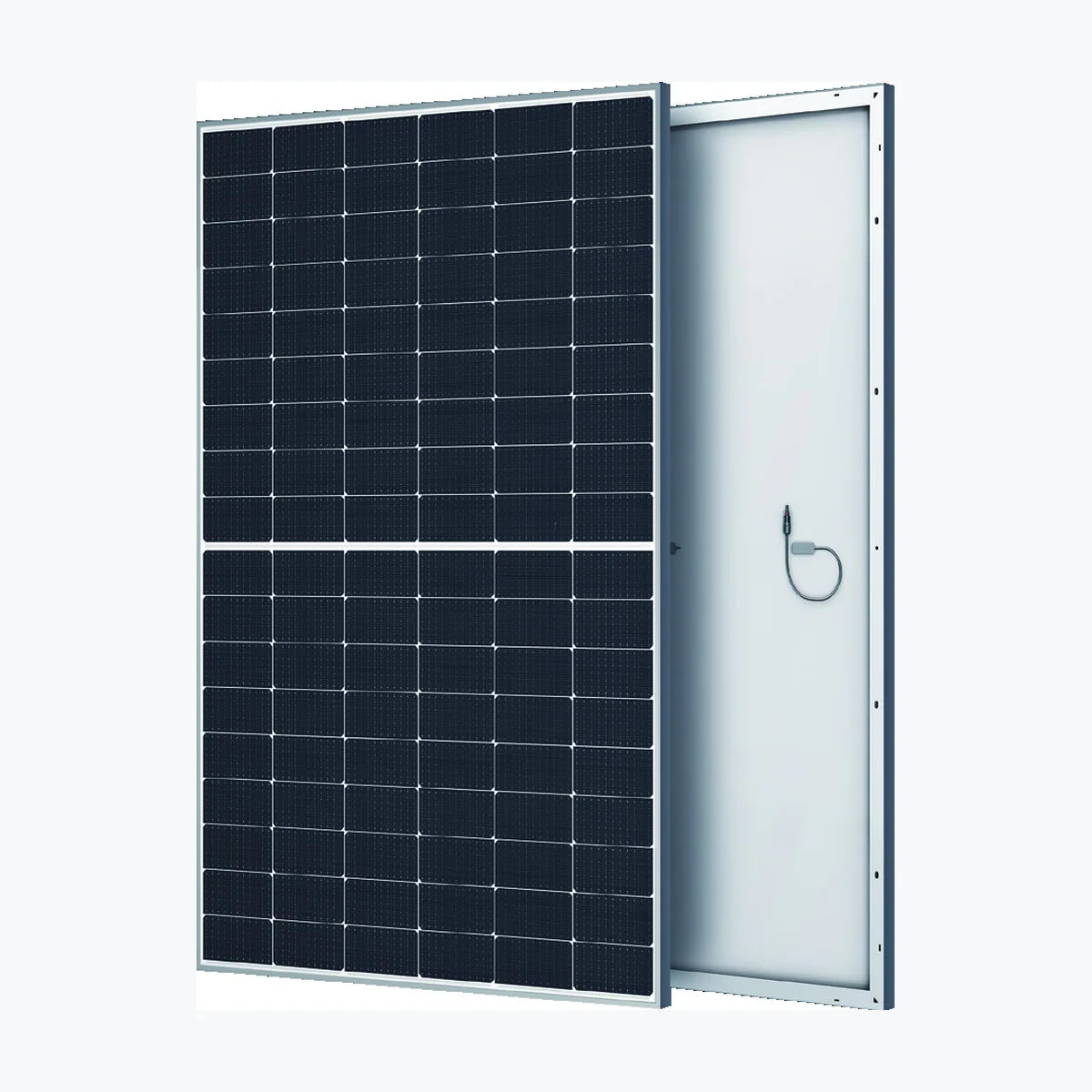

    Cyclenpo Battery CY435W-36M

    Cyclenpo Battery CY435W-36M

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-3540
    • Container price: $59.40 USD
    • Container qty: 720
    • Pallet price: $2.80 USD
    • Pallet qty: 30
    • Unit price: $0.11 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. CY435W-36M Product Warranty 12 Years Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 435 Wp Voltage at Maximum Power (Vmpp) 40.88 V Current at Maximum Power (Impp) 10.64 A Open Circuit Voltage (Voc) 48.71 V Short Circuit Current (Isc) 11.38 A Panel Efficiency 20.01 % Maximum Power (Pmax) 325 Wp Voltage at Maximum Power (Vmpp) 38.06 V Current at Maximum Power (Impp) 8.524 A Open Circuit Voltage (Voc) 45.7 V Short Circuit Current (Isc) 9.22 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.27 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2094x1038x35 mm Weight 24 kg Cell Size 166×83 mm Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm D

      Power Range: 420 ~ 450 Wp
      Panel Efficiency: 19.32 ~ 20.7 %
      Weight: 24 kg
      Seller Name: Shenzhen Cyclen Technology Co., Ltd.
      Country: China
