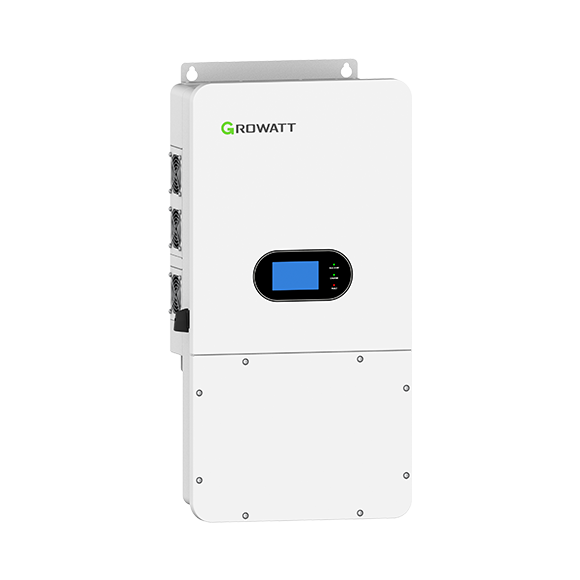

Growatt SPH 10000TL-HU-US(B) 10kW Split-Phase Hybrid Inverter with CTs (WiFi/LAN, Tigo RSD)
Growatt SPH 10000TL-HU-US(B) 10kW Split-Phase Hybrid Inverter with CTs (WiFi/LAN, Tigo RSD)
Your card is not charged until stock is confirmed. Enter your ZIP below for a transit estimate. Tracking provided once your order ships.
Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- SKSL50.0000902
- Unit price
- $285/kW
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for Growatt. 50,000+ SKUs from 169 authorized brands.
The Growatt SPH 10000TL-HU-US(B) is a 10kW split-phase (120/240V) hybrid inverter with integrated ATS and 48V battery port — UPS function with 10ms transfer, generator support, and up to 3 units in parallel for three-phase.
Key Features
- 10kW split-phase 120/240V hybrid inverter with integrated ATS
- UPS function, 10ms transfer time; DC/AC ratio 1.5 with 3 MPPTs
- Up to 200A battery charge/discharge; 48V battery (Growatt ALP & third-party)
- CTs included; WiFi/LAN communications; Tigo RSD transmitter (TRS-T)
- Supports DC-coupled, AC-coupled and AC-retrofit; diesel/gas generator input
- Max 6 units in parallel; max efficiency 97.5% (CEC 97.6%)
Compatibility: Growatt ALP 5.0L LV batteries & third-party 48V batteries; Tigo RSD
Specifications
| Model | SPH 10000TL-HU-US(B) |
| Part Number | SKSL50.0000902 |
| Rated AC Output | 10,000 W split-phase 120/240V |
| Battery | 48Vdc, up to 200A charge/discharge |
| MPPTs | 3 |
| Max PV Input | 15,000 W |
| Transfer Time | 10 ms (UPS) |
| Dimensions (H×W×D) | 25 × 18 × 8 in (≈630 × 460 × 200 mm) |
| Weight | 77 lb (35 kg) |
| Includes | CTs, WiFi/LAN module |
| Certifications | UL1741 SA, IEEE1547, CA Rule 21, AFCI |
Authorized Growatt distribution — full manufacturer warranty. Ships as single units via ground from Growatt USA (Eastvale, CA) or Louisville, KY.
