SolarEdge SE120K-USG8IBNZ4 Synergy Inverter for 480V Grids

The SolarEdge SE120K-USG8IBNZ4 is an advanced three-phase inverter, specifically designed for the North American 277/480V grid. This cutting-edge inverter offers exceptional energy management and operational efficiency, ensuring maximum performance with versatile features for diverse installation needs. SolarEdge's innovative Synergy technology optimizes power delivery and enhances system reliability.

Product Features

Enhanced Synergy Technology

Incorporating SolarEdge's Synergy technology, this inverter optimizes energy production and enhances overall system reliability, maintaining efficient operations even in challenging conditions.

Advanced Pre-Commissioning

Equipped with a powerful pre-commissioning process, this inverter facilitates rapid installation and seamless grid integration by validating system components prior to activation.

Integrated Arc Fault Protection

With built-in arc fault detection, the SE120K safeguards against potential hazards, ensuring safety and compliance with UL1699B standards for increased operational security.

Flexible Communication Interfaces

The inverter supports multiple communication options, including RS485, Ethernet, and optional Wi-Fi or cellular connections, enabling comprehensive system monitoring and control.

Robust Surge Protection

Featuring integrated AC and DC surge protection, this inverter is well-prepared to handle electrical surges, providing enhanced durability in all environments.

How It Works

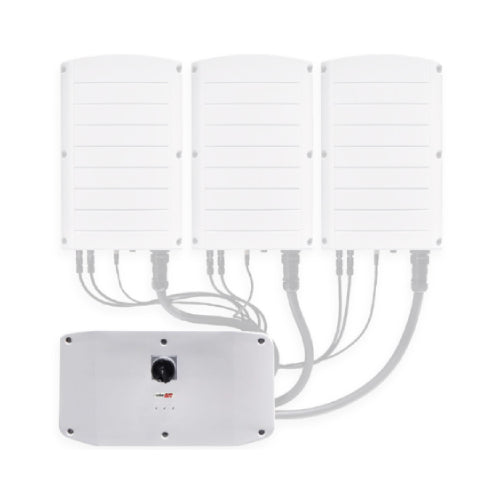

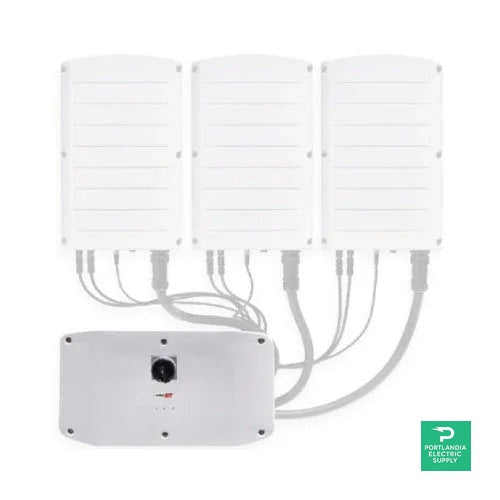

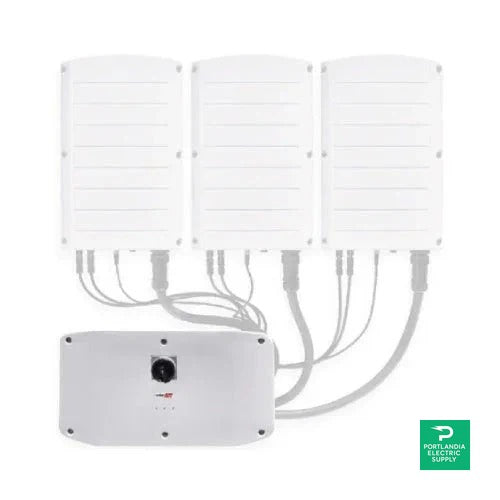

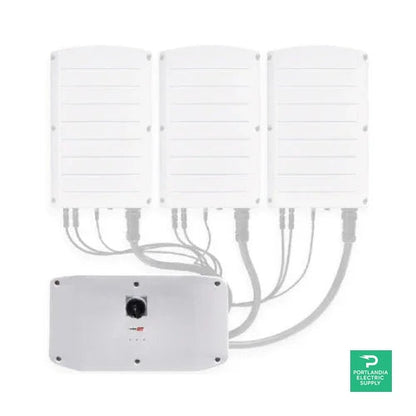

The SolarEdge SE120K-USG8IBNZ4 operates efficiently by leveraging two or three Synergy Units per inverter, each contributing to seamless energy conversion. Its modular setup allows for flexible installation, enhanced serviceability, and independent operation of synergy units for improved system uptime.

Synergy Units

Each inverter consists of multiple synergy units, which work collaboratively to convert DC power to AC power, ensuring continuous energy supply and system optimization.

Synergy Manager

The Synergy Manager oversees the operation of the synergy units, providing centralized control and monitoring for enhanced performance and usability.

Built-in PID Rectifier

The integrated PID (Potential Induced Degradation) rectifier actively mitigates potential system losses, ensuring sustained high efficiency in various operational scenarios.
