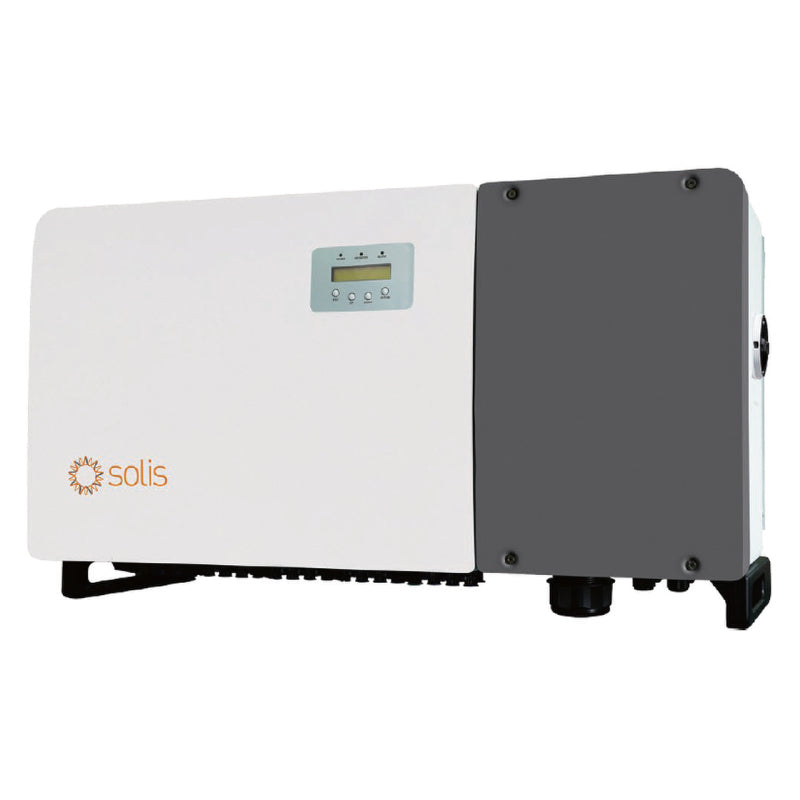

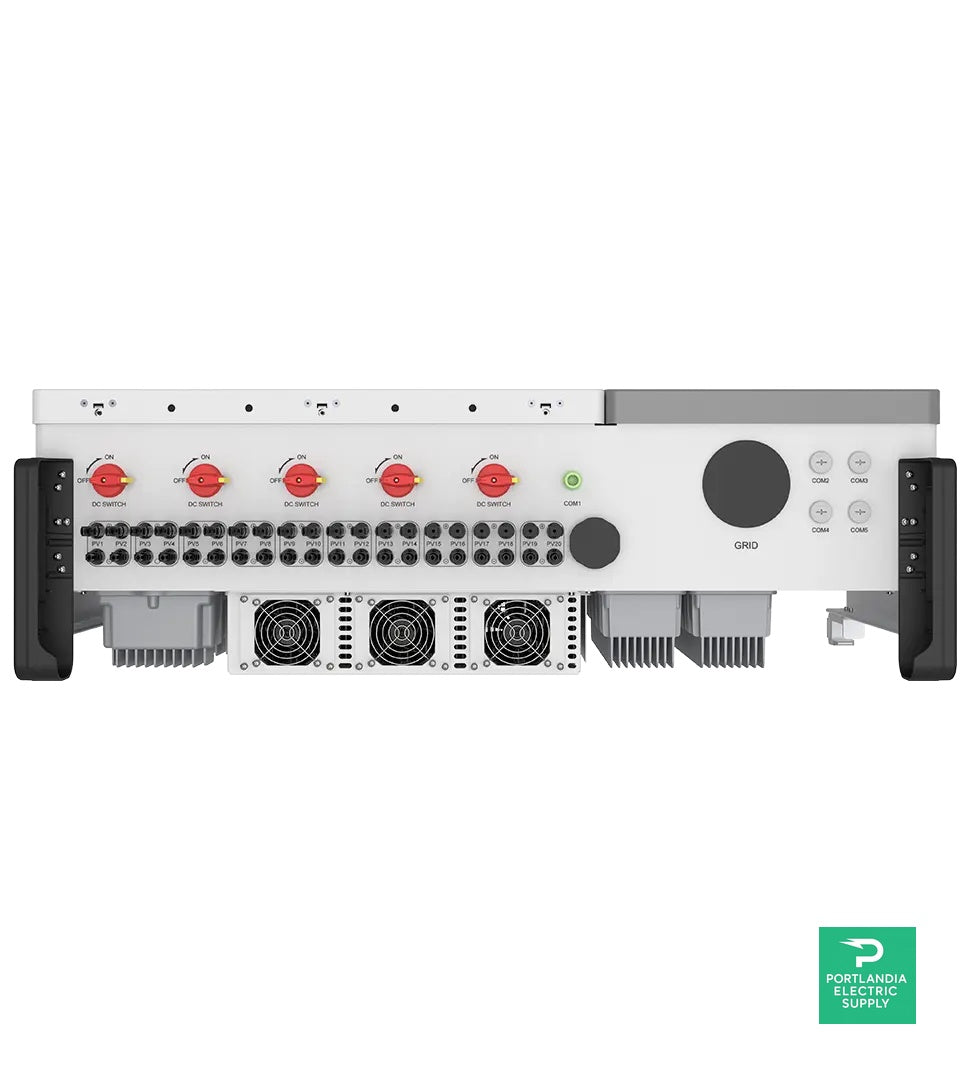

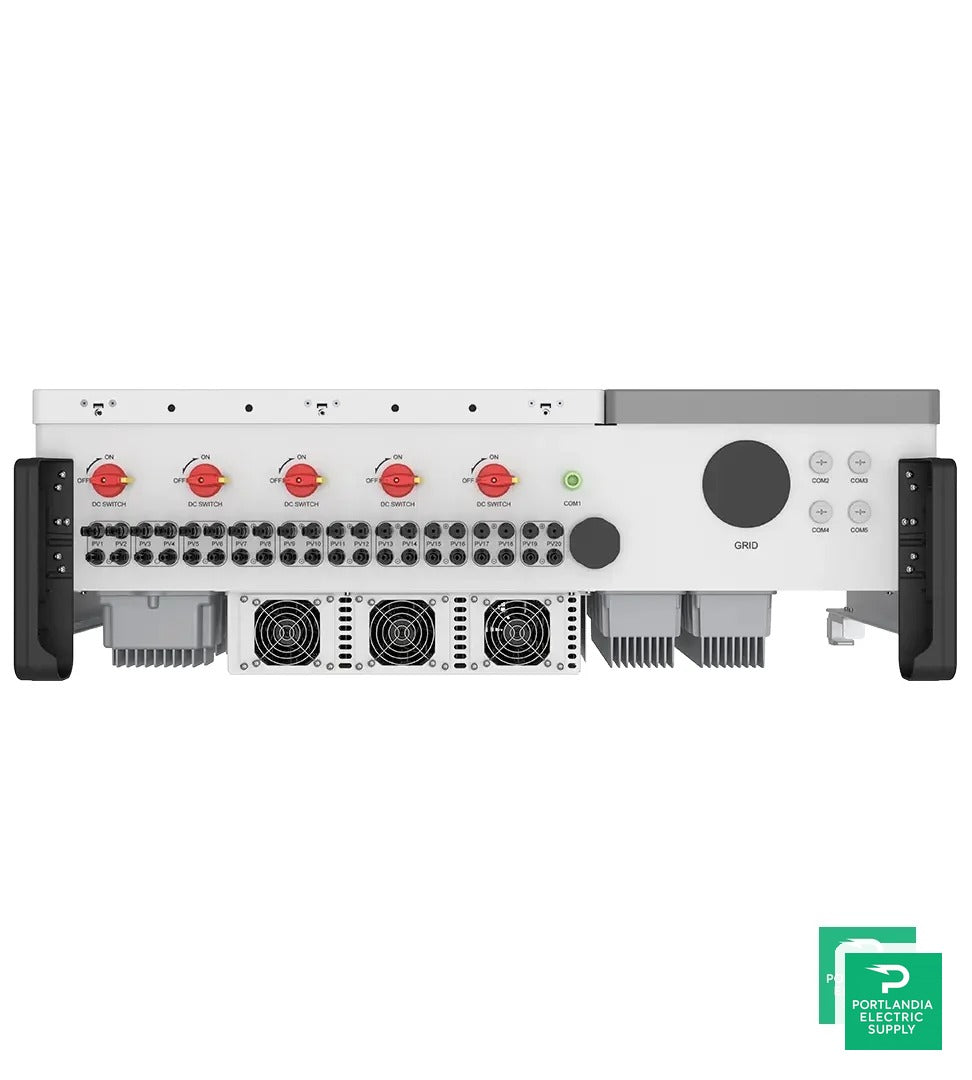

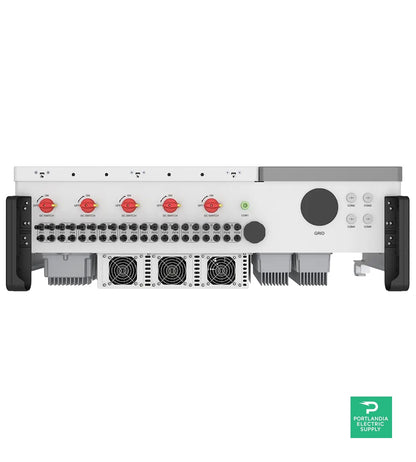

Solis 100kW 3-Phase Inverter with 10 MPPTs and AFCI Protection
The Solis 100K-5G-US-APST inverter offers a robust solution for efficient solar energy conversion. Featuring advanced MPPT technology and integrated AFCI protection, this inverter is designed for reliability and safety. Ideal for large-scale solar installations, it delivers significant energy savings and optimal performance, ensuring a seamless user experience.
Product Features
Advanced MPPT Technology
With 10 maximum power point tracking (MPPT) units, the Solis inverter optimizes solar panel performance, enhancing energy capture and efficiency even under challenging conditions.
Integrated AFCI Protection
Equipped with AFCI technology, this inverter proactively detects and reduces the risk of electrical fires, providing a safer solar power system.
High Efficiency
The inverter achieves up to 98.8% efficiency, ensuring maximum energy conversion and significant cost savings for users.
Durability and Reliability
Built with globally recognized components, the inverter promises a longer lifespan, maintaining performance over time in diverse environmental conditions.
Remote Monitoring Capability
Offering compatibility with Solis monitoring systems, users can easily manage and monitor inverter performance remotely via RS485, Ethernet, and optional Wi-Fi or cellular connections.
How It Works
The Solis 100K-5G-US-APST efficiently converts DC from solar panels into usable AC for grid integration. Its sophisticated components enhance energy conversion and maintain system safety and operational reliability.
MPPT Units
The MPPT units track maximum power points of the solar panels, maximizing energy harvest from each unit.
AFCI Safety System
The integrated AFCI system helps prevent electrical fires by detecting arc faults and discontinuing the electrical flow immediately.
Remote Control and Monitoring System
Users can monitor inverter performance remotely, making it easy to track and optimize energy use through supported communication protocols.
Specifications
| Max. Input Voltage | 1000 V |
| Rated Voltage | 600 V |
| Start-up Voltage | 195 V |
| MPPT Voltage Range | 180-1000 V |
| Max. Input Current | 10*26 A |
| Max. Apparent Output Power | 100 kVA |
| Rated Grid Voltage | 3/PE, 480 V |
| Efficiency | Max 98.8%, CEC 98.3% |
| Operating Temp. Range | -22F to 140F (-30C to 60C) |
| Cooling Concept | Intelligent redundant fan-cooling |
| SKU | PES-SPS-SIV-0316 |
|---|---|
| MPN | 100K-5G-US-APST |
| Manufacturer | Solis |
| Brands | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Special sections quote cta | |
| Unit price | |
| Width | |
| Manufacturer | |
| Warranty (years) | 10 |
No documents available for this product. Contact us to request documentation.
