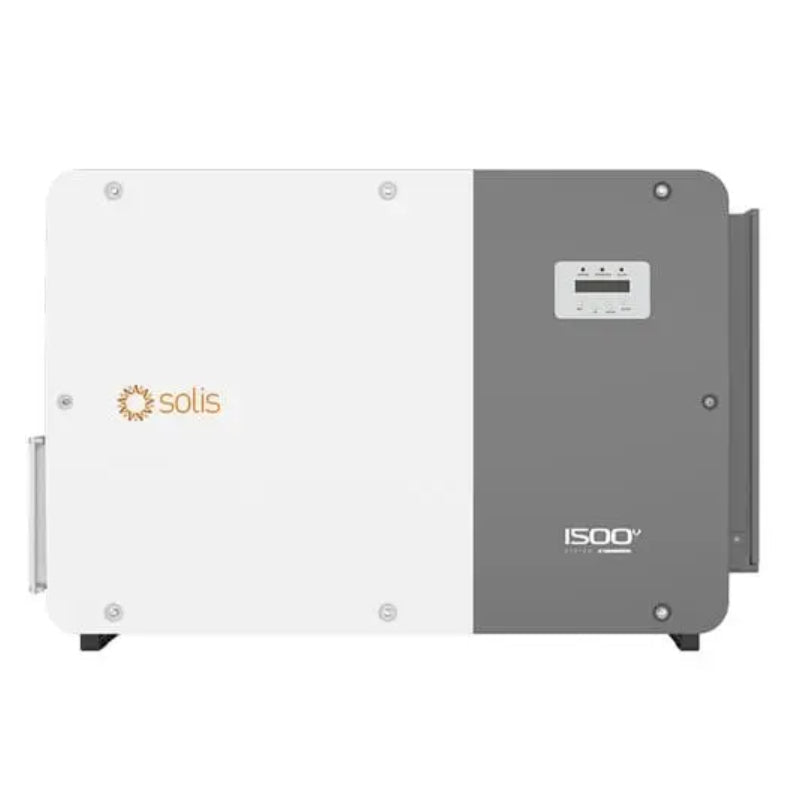

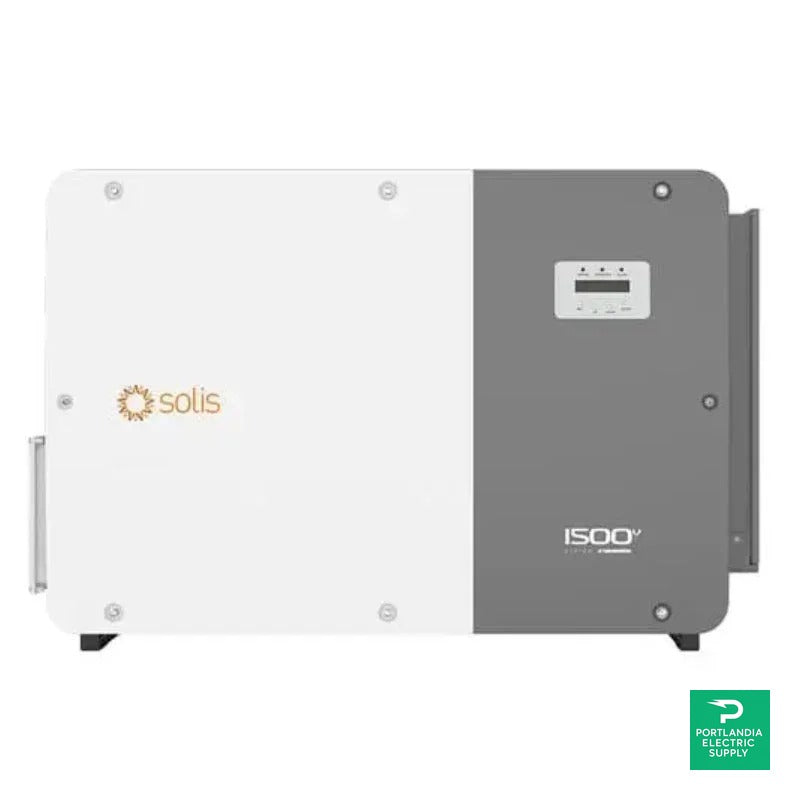

Solis 125kW Three-Phase Inverter with Multi-MPPT Support
The Solis 125K-EHV-5G-US is a robust three-phase solar inverter, designed for utility-scale solar applications. Equipped with advanced MPPT technology and a high-efficiency rating, this inverter seamlessly integrates with modern energy solutions while providing high reliability and safety. Its enhanced features ensure optimal solar energy conversion, making it an ideal choice for maximizing solar power performance.
Product Features
Advanced MPPT Technology
Featuring up to 14 MPPT channels, the Solis 125K-EHV-5G-US optimizes power output from solar panels across varying sunlight conditions, ensuring maximum energy yield and efficiency.
Superior Efficiency
Achieving up to 99.0% maximum efficiency, this inverter guarantees proficient energy conversion, optimizing the use of generated solar power for increased economic savings and reduced grid dependency.
Robust Protection Mechanisms
Integrated with AFCI protection and Type II surge protection, the inverter enhances safety by reducing potential fire risks and safeguarding against electrical surges, ensuring reliable operation.
Intelligent Monitoring
The Solis inverter offers intelligent string monitoring with I-V curve scanning, allowing real-time data insights and analytics that aid in proactive maintenance and performance optimization.
Comprehensive Compliance
Complies with multiple international standards such as UL 1741SA and SB, ensuring the inverter delivers reliable and standardized performance in diverse operational settings.
How It Works
The Solis 125K-EHV-5G-US operates by efficiently converting DC power generated by solar panels into AC power suitable for grid distribution and usage. Its multi-MPPT technology and smart tracking ensure continuous and optimized energy transfer.
Multi-MPPT Tracking
The multi-MPPT feature allows the inverter to track and optimize power output from different solar panel arrays, enhancing total system efficiency.
Intelligent Cooling System
An intelligent redundant fan-cooling system maintains optimal internal temperatures, ensuring consistent performance and extending the product's operational lifespan.
Remote Operation Capabilities
The inverter supports remote firmware updates and intelligent management, allowing users to optimize performance and maintenance processes efficiently from afar.
Specifications
| Max. Input Voltage | 1500 V |
| Rated Voltage | 950 V / 1080 V |
| Start-up Voltage | 500 V |
| MPPT Voltage Range | 480-1500 V |
| Max. Efficiency | 99.0% |
| AC Output Power | 125 kW |
| Max. Output Current | 132.3 A |
| Dimensions (W*H*D) | 46.1*30.3*15.1 in (1170*770*384 mm) |
| Weight | 240 lbs (109 kgs) |
| Ambient Temperature Range | -22F to 140F (-30C ~ +60C) |
| SKU | PES-SPS-SIV-0301 |
|---|---|
| MPN | 125K-EHV-5G-US |
| Manufacturer | Solis |
| Brands | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Phase | |
| Special sections quote cta | |
| Unit price | |
| Width | |
| Inverter type | |
| Manufacturer | |
| Model number | |
| Warranty (years) | 10 |
