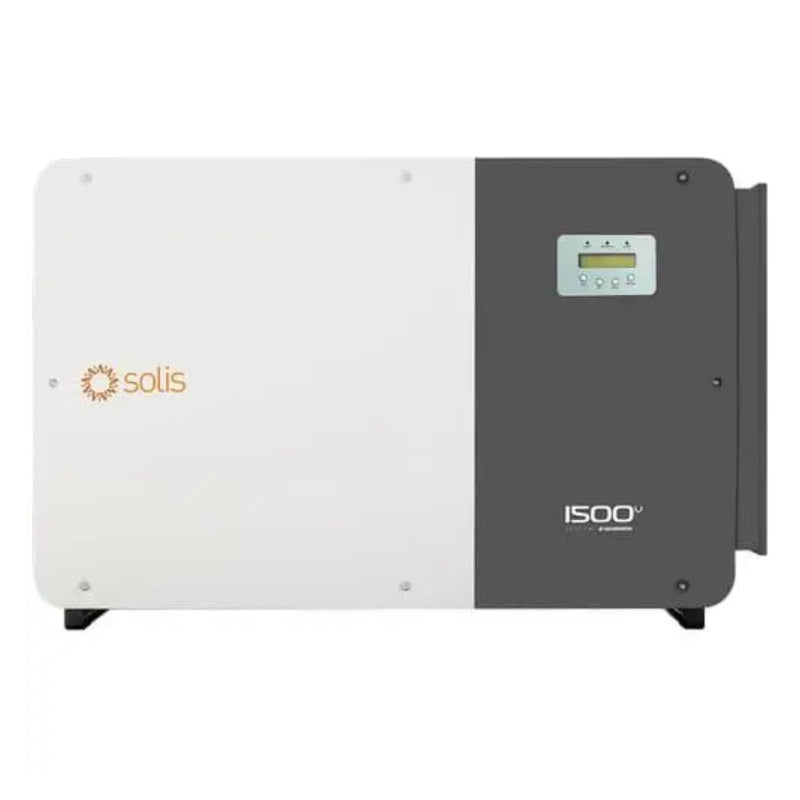

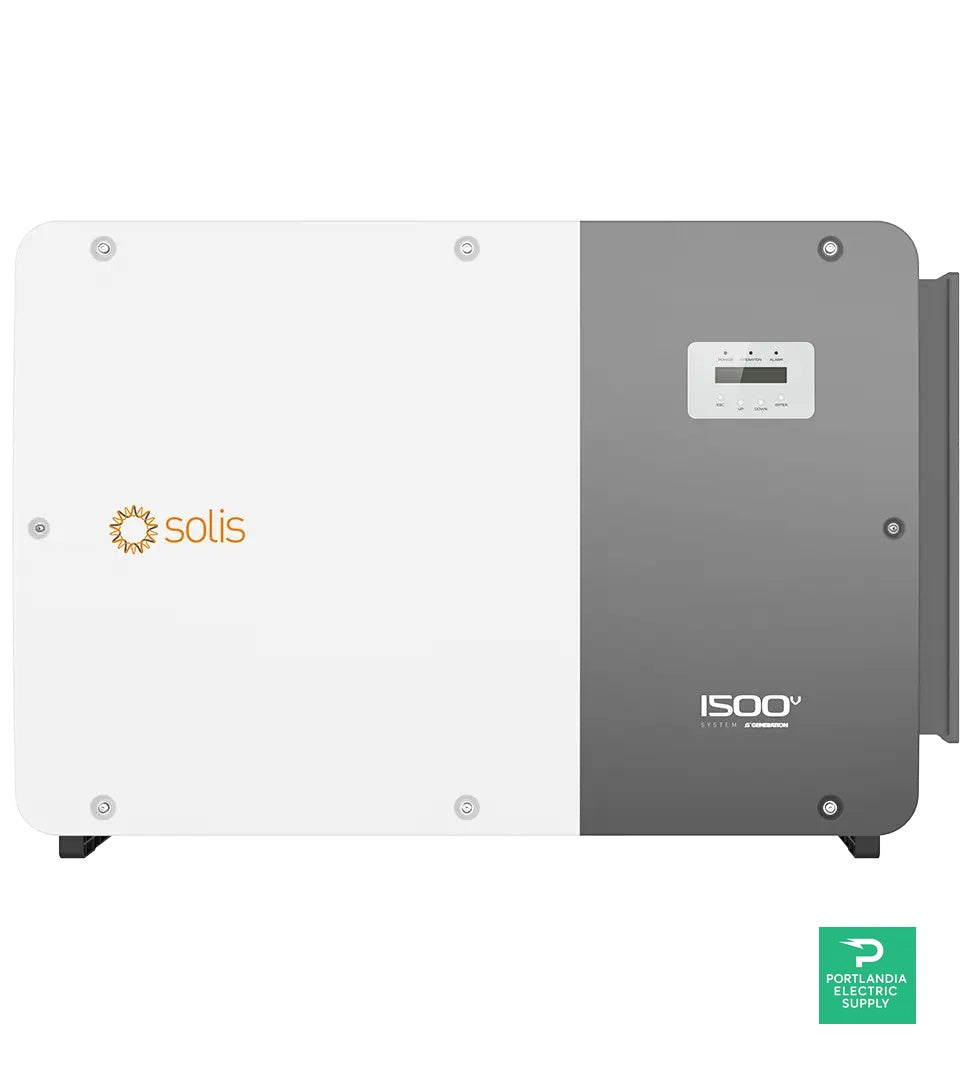

Solis 185kW 3-Phase 12-MPPT String Inverter with 10 Year Standard Warranty - 185K-EHV-5G-US-PLUS

Solis 185kW 3-Phase 12-MPPT String Inverter with 10 Year Standard Warranty - 185K-EHV-5G-US-PLUS

Regular price $12,571.20 USD
Regular price Sale price $12,571.20 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SIV-0294
  • Brands: Solis
  • Documents:
  • Height: 30.3
  • Length: 15.1
  • Phase:
    • Three Phase
  • Shop by inverter type:
    • String Inverters
View full details
  • Solis 185kW Three-Phase Inverter with 12 MPPTs and Extended Warranty

    The Solis 185K-EHV-5G-US-PLUS string inverter offers efficient and safe energy solutions ideal for utility-scale solar PV applications. This high-performance inverter is engineered to provide substantial energy conversion with its 99.0% maximum efficiency and smart technology integration, ensuring reliability and top-notch power delivery.

    Product Features

    Advanced MPPT Technology

    Equipped with 12 maximum power point trackers, the Solis 185K-EHV-5G-US-PLUS enhances energy harvest from bifacial modules, ensuring optimal performance under varying conditions.

    Robust Safety Mechanisms

    This inverter integrates comprehensive protection measures such as AFCI to reduce fire risks, ensuring prolonged safety and operational peace of mind.

    High Efficiency Performance

    Achieving up to 99.0% efficiency, this model maximizes energy conversion, contributing to lower operational costs and improved return on investment.

    Intelligent Monitoring and Control

    With smart string monitoring and I-V curve scanning capabilities, you gain precise insights into system performance, enabling proactive maintenance and energy optimization.

    Environmentally Durable Design

    Classified with Type 4X for anti-corrosion and weatherproof construction, the Solis 185K-EHV-5G-US-PLUS ensures long-term durability in diverse environmental conditions.

    How It Works

    This inverter operates efficiently by converting DC electricity from solar panels into usable AC power. Its intelligent components ensure optimized energy conversion and system health monitoring, suitable for both technical and non-technical audiences.

    MPPT Technology

    The multiple MPPTs track the maximum power point of each string, optimizing energy output even when module conditions vary.

    Integrated Safety Systems

    Equipped with advanced protection such as AFCI, this component mitigates potential risks, ensuring safety and reliability throughout its operation.

    Smart Communication Features

    Featuring innovative communication options like RS485 and optional PLC, the inverter supports seamless integration and remote control capabilities, enhancing user interaction and management.

    Specifications

    Max. Input Voltage 1500 V
    Rated Voltage 1080 V
    Max. Efficiency 99.0%
    CEC Efficiency 98.3%
    Rated Output Power 185 kW
    Max. Output Power 185 kW
    Max. Output Current 178.0 A
    Cooling Concept Intelligent redundant fan-cooling
    Weight 249 lbs (113 kgs)
    Compliance UL 1741SB, UL 1741SA, UL 1998, UL1699B, IEEE 1547-2018
