Morningstar TriStar vs OutBack FLEXmax — Off-Grid Charge Controller Comparison
Head-to-head of the two most-specified off-grid MPPT charge controllers in North America — Morningstar TriStar TS-MPPT-60 vs OutBack FLEXmax FM60 / FM80 / FLEXmax Extreme FM100. String design, battery temp compensation, HUB4/HUB10 vs MATE3s integration.
Two off-grid controllers own the professional installer market for standalone (non-hybrid) 48 V battery systems: the Morningstar TriStar family (TS-MPPT-45, TS-MPPT-60, and the flagship TS-MPPT-600V-60) and the OutBack Power FLEXmax family (FM60, FM80, and FLEXmax Extreme FM100). Both are 5-year-warranty MPPT controllers, both are stocked at PES Louisville, and both integrate deeply with their vendor's inverter/charger ecosystem (Morningstar RD-1 relay driver + TS-RM-2 remote meter; OutBack MATE3s + HUB4/HUB10.3 system controller).
The differences are architectural: Morningstar TriStar wins on ruggedness and passive cooling (no fans, epoxy-potted power stage, MIL-STD environmental compliance); OutBack FLEXmax wins on installer-mature system integration (MATE3s + Radian GS8048A hybrid + FLEXmax parallel stacking is the North American telecom off-grid gold standard). This comparison runs the datasheet head-to-head, string-design tradeoffs, battery temperature compensation, and HUB4/HUB10 vs MATE3s integration.

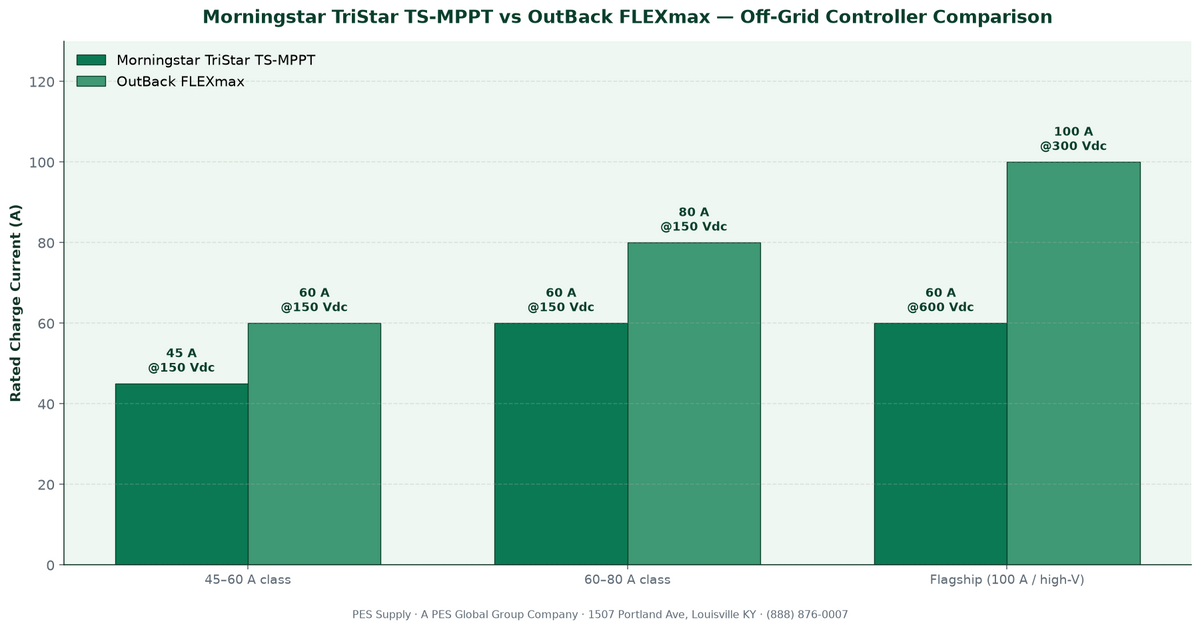

| Spec | Morningstar TriStar TS-MPPT-60 | OutBack FLEXmax FM60 | OutBack FLEXmax FM80 | OutBack FLEXmax Extreme FM100 |
|---|---|---|---|---|
| Max PV Vdc (cold-corrected) | 150 V | 150 V | 150 V | 300 V |
| Max charge current | 60 A | 60 A | 80 A | 100 A |
| Battery bus | 12 / 24 / 36 / 48 V | 12 / 24 / 36 / 48 / 60 V | 12 / 24 / 36 / 48 / 60 V | 12 / 24 / 36 / 48 / 60 V |
| Peak efficiency | 97.5% | 97% | 98% | 98% |
| Max PV array @ 48 V | 3,200 W | 3,500 W | 4,800 W | 6,000 W |
| Cooling | Passive convection (no fan) | Fan-assisted | Fan-assisted | Fan-assisted |
| Battery temp compensation | RTS remote temp sensor (included) | RTS remote temp sensor (RTS accessory) | RTS accessory | RTS accessory |
| System integration | HUB (Morningstar HUB) + TS-RM-2 remote meter + RD-1 relay driver | HUB4 / HUB10.3 + MATE3s system controller | HUB4 / HUB10.3 + MATE3s | HUB4 / HUB10.3 + MATE3s + AXS network |
| Communications | MODBUS RTU, MODBUS TCP, EIA-485 | Proprietary OutBack CAN over MATE3s | Proprietary OutBack CAN | Proprietary OutBack CAN + optional Ethernet via AXS |
| Enclosure | Aluminum, IP20 (indoor) | Aluminum, indoor | Aluminum, indoor | Aluminum, indoor |
| Warranty | 5 yr | 5 yr | 5 yr | 5 yr |
| PES contractor price band | ~$695 – $1,145 | ~$489 | ~$596 | ~$1,428 |
The datasheet-level pattern: TriStar and FLEXmax FM60 are direct competitors at 60 A / 150 Vdc and trade essentially the same throughput at nearly identical price. FLEXmax FM80 wins on price-per-amp at 80 A. FLEXmax Extreme FM100 is the only unit in this comparison with a 300 Vdc PV input ceiling — the others cap at 150 Vdc, which meaningfully constrains string design (see below).
The 150 Vdc PV input ceiling on TriStar TS-MPPT and FLEXmax FM60/FM80 is the single most-consequential design constraint you'll hit on off-grid installs. NEC 690.7 requires string Voc × 1.25 (cold-temperature safety factor) to stay below the controller's max input voltage. Below is what that means for common panel classes.
| Panel class | Voc per module | Voc × 1.25 | Max modules in series (150 Vdc) | Max modules in series (300 Vdc) |
|---|---|---|---|---|
| 60-cell polycrystalline (~300 W) | 38 V | 47.5 V | 3 modules | 6 modules |
| 72-cell polycrystalline (~370 W) | 46 V | 57.5 V | 2 modules | 5 modules |
| 72-cell mono N-type (~440 W) | 49 V | 61.3 V | 2 modules | 4 modules |
| 144 half-cell bifacial (~590 W) | 52 V | 65 V | 2 modules | 4 modules |
Three implications: (1) a 150 Vdc controller like TS-MPPT-60 or FLEXmax FM60/FM80 forces short strings — 2 or 3 modules max — which drives up the number of parallel strings and therefore the conductor / combiner / OCPD count on the DC side; (2) FLEXmax Extreme FM100 at 300 Vdc doubles the max string length, which halves the parallel string count and materially reduces DC BOS cost on any array over ~4 kW; (3) if the array is over ~4 kW and the string ceiling matters, spec the FLEXmax Extreme FM100 or move to a 600 Vdc controller like Morningstar TS-MPPT-600V-60, MidNite Barcelona 200A, or Schneider Conext MPPT 100-600.
Off-grid batteries — flooded lead-acid, sealed AGM, LFP — have charge voltage set points that shift with battery temperature. Bulk voltage rises ~3 mV per °C per cell below 25 °C and drops the same amount above. On a 48 V bank (24 cells) that's ~72 mV per °C — over a 20 °C swing that's a 1.4 V shift on bulk / absorption. Both TriStar and FLEXmax support battery temperature compensation via a Remote Temperature Sensor (RTS) — but the accuracy and integration differ.
Morningstar TriStar TS-MPPT — RTS included, MODBUS-native temp reporting
The TriStar ships with a Remote Temperature Sensor as standard (the RTS-MPPT plugs into the RJ11 port on the unit). Compensation coefficient is programmable (-5 mV/°C/cell default; -30 mV/°C/cell range). Real-time temp is exposed on MODBUS register 0x0018, so the TS-RM-2 remote meter shows compensated set points on the display. Accuracy is ±1 °C.
OutBack FLEXmax — RTS accessory, MATE3s temp integration
The FLEXmax uses the OutBack RTS accessory (sold separately, ~$45). Once installed, temp reports up through the HUB4/HUB10.3 to the MATE3s system controller, where the compensated set points display on the main screen. Coefficient is programmable in the MATE3s menu system. Accuracy is ±1.5 °C. Advantage: the MATE3s uses this same temp source to compensate the Radian GS8048A inverter/charger's battery charging (unified temp source for the whole stack).
OutBack's advantage in off-grid design is the MATE3s system controller — a single wall-mount unit that talks to every OutBack component via HUB4 (4-port CAN bus) or HUB10.3 (10-port). This is where FLEXmax lives in a professional install:
OutBack Radian off-grid stack — MATE3s at the center
- OutBack Radian GS8048A — 8 kW / 48 V hybrid inverter/charger, split-phase 120/240 V AC output, generator port, transfer switch. Volume off-grid + hybrid unit.
- 2× FLEXmax FM80 or 3× FM60 — parallel MPPT stack feeding the 48 V bus.
- MATE3s — the system controller. All programming, monitoring, and firmware updates route through it.
- HUB10.3 — 10-port CAN bus that ties MATE3s to inverters + controllers.
- OPTICS RE cloud — free remote monitoring via MATE3s + AXS gateway.
- Field-service parts — SPARE-036 power board and SPARE-035 button board keep a FLEXmax alive in the field — you can swap a failed power module in 30 minutes without shipping the unit back.
Pre-wired versions like the FLEX1 VFXR3524A + FM80 pre-wired arrive on a mounting panel with breakers, bus bars, and shunt already terminated — a two-hour install for a professional.
Morningstar TriStar — HUB, TS-RM-2, and RD-1 relay driver
Morningstar's ecosystem is less monolithic: the TS-RM-2 remote meter is the display, the RD-1 relay driver handles load control and gen-start, and the Morningstar HUB provides EIA-485 daisy chain communications for up to 16 units. Live View Local runs over Ethernet for direct browser monitoring without cloud dependency. Advantage: standard MODBUS TCP/RTU means any third-party BMS or SCADA can pull data directly from a TriStar without OutBack-proprietary protocols. This is why TriStar RD-1 is popular in telecom sites where the network operator's SCADA reads the site directly.
If the stack includes OutBack Radian + MATE3s, spec FLEXmax end-to-end.
The Radian GS8048A + FLEXmax + MATE3s + HUB10.3 is a single-vendor stack with unified programming, monitoring, and firmware. Mixing brands in this ecosystem loses the MATE3s advantage.
If the site is telecom / industrial with third-party SCADA, spec Morningstar TriStar.
TriStar exposes MODBUS RTU + MODBUS TCP + EIA-485 natively. Any third-party network management system can pull real-time V/A/W without OutBack-proprietary translation.
If the PV array is over 4 kW at 150 Vdc, move to FLEXmax Extreme FM100 (300 Vdc) or TriStar TS-MPPT-600V-60.
The 150 Vdc ceiling on FM60/FM80/TS-MPPT-60 forces 2–3 module strings, driving up parallel string count. The 300 Vdc FM100 doubles string length; the 600 Vdc TriStar quadruples it.
If the site has no field service and must run 20 years unattended, spec Morningstar TriStar.
TriStar has no fans — passive convection cooling, epoxy-potted power stage, MIL-STD environmental compliance. FLEXmax has a fan (a wear item that fails after 8–12 years in high-dust environments).
If field-service part-swap matters, spec FLEXmax.
The FLEXmax FM60/FM80 power board (SPARE-036) and button board (SPARE-035) are field-replaceable in 30 minutes. TriStar is a full-unit RMA.
| Family | Model | PES SKU link | Contractor price band |
|---|---|---|---|
| Morningstar TriStar PWM | TS-45 (45 A PWM 12/24/48 V) | TS-45 | ~$220 |
| Morningstar TriStar PWM | TS-60 (60 A PWM) | TS-60 | ~$290 |
| Morningstar TriStar MPPT | TS-MPPT-45 (45 A / 150 V) | TS-MPPT-45 | ~$555 |
| Morningstar TriStar MPPT | TS-MPPT-60 (60 A / 150 V) | TS-MPPT-60 | ~$477 – $695 |
| Morningstar TriStar MPPT-600V | TS-MPPT-600V-60 (60 A / 600 V) | TS-MPPT-600V-60 | ~$1,145 |
| Morningstar accessory | RD-1 Relay Driver | RD-1 | ~$147 |
| OutBack FLEXmax | FLEXmax FM60 (60 A / 150 V) | FM60-150VDC | ~$489 |
| OutBack FLEXmax | FLEXmax FM80 (80 A / 150 V) | FM80-150VDC | ~$596 |
| OutBack FLEXmax Extreme | FLEXmax Extreme FM100 (100 A / 300 V) | FM100-300 | ~$1,428 |
| OutBack pre-wired stack | FLEX1 VFXR3524A + FM80 (3.5 kW / 24 V) | FLEX1 VFXR3524A + FM80 | ~$4,684 |
Registered contractors — free calculators on the PES portal
- String Sizing Calculator — Voc/Vmp string voltage vs controller Vdc-max, temperature-corrected per NEC 690.7.
- Compatibility Checker — controller + battery + panel compatibility against manufacturer-approved lists.
- Solar System Calculator — end-to-end kW-DC / kW-AC / battery sizing for a target daily kWh load.
- Voltage Drop Calculator · Load Balance Calculator
Register for the contractor portal → Free. Verified installers only.
What is the biggest difference between Morningstar TriStar and OutBack FLEXmax?
Morningstar TriStar is a MODBUS-native, passively-cooled, fan-free MPPT controller with a 20+ year unattended service history in telecom applications. OutBack FLEXmax integrates into the MATE3s + HUB4/HUB10.3 + Radian ecosystem, has field-swappable power boards, and is the North American off-grid Radian stack standard.
What is the max PV input voltage on each?
TS-MPPT-45 and TS-MPPT-60: 150 Vdc. FLEXmax FM60 and FM80: 150 Vdc. FLEXmax Extreme FM100: 300 Vdc. Morningstar TS-MPPT-600V-60: 600 Vdc — the highest of any product in this comparison.
What is the max charge current at 48 V?
TS-MPPT-60: 60 A (3.2 kW). FLEXmax FM60: 60 A (3.5 kW). FLEXmax FM80: 80 A (4.8 kW). FLEXmax Extreme FM100: 100 A (6.0 kW). TS-MPPT-600V-60: 60 A (3.2 kW at higher input voltage headroom for long conductor runs).
Does either controller support parallel operation on one battery bank?
Yes — both support parallel stacking. TriStar TS-MPPT supports up to 16 units via Morningstar HUB. FLEXmax FM60/FM80/FM100 supports parallel stacking of the whole Radian + FLEXmax cluster via HUB4/HUB10.3 + MATE3s (typically 2–3 FLEXmax per Radian). Always match voltage set points across paralleled controllers.
Which controller has field-replaceable modules?
OutBack FLEXmax FM60/FM80. The SPARE-036 power board and SPARE-035 button board are field-swappable in 30 minutes — critical for telecom / oil & gas remote sites where a truck roll costs more than a full-unit RMA. Morningstar TriStar is a full-unit RMA.
What warranty do both offer?
5 years standard on both Morningstar TriStar (all variants) and OutBack FLEXmax (all variants). PES auto-registers the S/N to your contractor account at ship so the warranty clock starts from install date.
Which one is the best for a 20-year unattended telecom site?
Morningstar TriStar TS-MPPT — passive convection cooling (no fans), epoxy-potted power stage, MIL-STD environmental compliance, MODBUS-native SCADA integration. FLEXmax's fan is a wear item that fails after 8–12 years in high-dust environments.
