Victron SmartSolar vs MidNite Classic — MPPT Charge Controller Comparison
Head-to-head of two of the most-specified MPPT charge controllers on the North American off-grid market — Victron SmartSolar 100/150/250 vs MidNite Classic 150/200/250. Datasheet spec tables, efficiency curves, comms architecture, warranty, and when to spec each.
Two of the most-specified MPPT charge controllers in North American off-grid design are the Victron SmartSolar family (SmartSolar 100/50, 150/70, 250/100, and the flagship RS 450/100 & RS 450/200) and the MidNite Classic family (Classic 150, Classic 200, and Classic 250). Both are 5-year-warranty MPPT controllers, both accept 48 V battery buses, both are stocked at PES Louisville. The differences are architectural: Victron leads on Bluetooth-native configuration and system integration via Cerbo GX; MidNite leads on rugged temperature de-rating and multi-source charging (Solar, Wind, Hydro).
This head-to-head runs through the datasheet spec tables side-by-side, the MPPT vs PWM efficiency delta, the communications architectures (VictronConnect + Cerbo GX vs MidNite MyMidNite), warranty and service network, and closes with a decision framework for when to spec each. Real SKUs and PES contractor pricing are linked throughout.

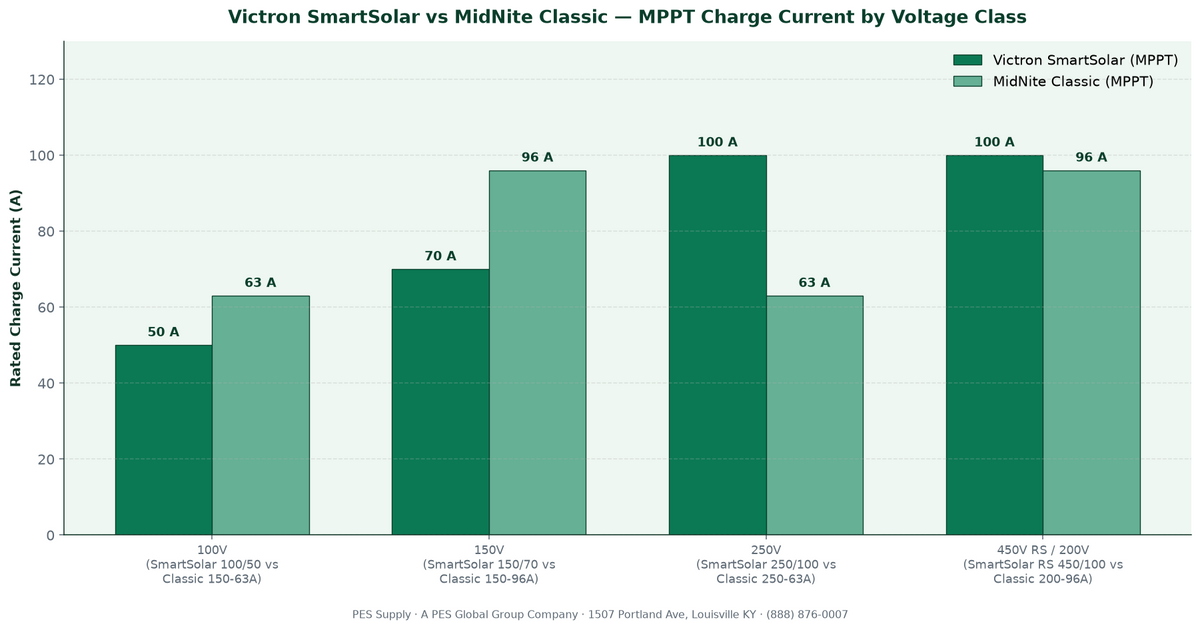

The two ranges cover overlapping voltage ceilings but diverge on maximum charge current and on communications. Below is the datasheet head-to-head across the volume models each family sells at PES.
| Spec | Victron SmartSolar 100/50 | MidNite Classic 150 (150-96A) | Victron SmartSolar 250/100 | MidNite Classic 250 (250-63A) |
|---|---|---|---|---|
| Max PV Vdc (Voc cold-corrected) | 100 V | 150 V | 250 V | 250 V |
| Max charge current | 50 A | 96 A | 100 A | 63 A |
| Battery bus (auto-detect) | 12 / 24 / 48 V | 12 / 24 / 36 / 48 / 60 V | 12 / 24 / 36 / 48 V | 12 / 24 / 36 / 48 / 60 V |
| Peak efficiency | 98% | 96% | 98% | 96% |
| Max PV array wattage @ 48 V | 2,900 W | 4,800 W | 5,800 W | 3,150 W |
| MPPT modes | Solar | Solar / Wind / Hydro (3-mode) | Solar | Solar / Wind / Hydro (3-mode) |
| Communications | Bluetooth (native) + VE.Direct + VE.Can | Local display + optional MyMidNite cloud + MNGP Remote | Bluetooth + VE.Direct + VE.Can | Local display + MyMidNite + MNGP |
| Enclosure | Aluminum, IP43 (indoor) | NEMA 3R rated (outdoor-capable) | Aluminum, IP43 | NEMA 3R |
| Weight | 3.0 kg (6.6 lb) | 5.4 kg (11.9 lb) | 7.9 kg (17.4 lb) | 5.4 kg (11.9 lb) |
| Warranty | 5 yr | 5 yr | 5 yr | 5 yr |
| PES contractor price band | ~$470 | ~$710 | ~$835 | ~$752 |
Three take-aways at the datasheet level: (1) MidNite Classic 150 puts 96 A into a 48 V bus, moving 4.8 kW of PV vs the Victron 100/50's 2.9 kW — if you're at 100 Vdc PV input and want maximum production per controller, Classic 150 is the higher-throughput unit; (2) Victron SmartSolar 250/100 puts 100 A into a 48 V bus at 250 Vdc input, moving 5.8 kW — the highest of the four models; (3) MidNite Classic is NEMA 3R (outdoor-capable) out of the box; Victron SmartSolar is IP43 and expected to live in a wall-mount enclosure or garage.
Both Victron SmartSolar and MidNite Classic are MPPT controllers, and MPPT is a categorical efficiency win over PWM (Pulse-Width Modulation) — the older topology that most sub-$100 controllers still use. The delta matters most in three situations: cold-weather bulk charging, partial charge (float / absorption), and any array where the panel Vmp is well above the battery bulk voltage.
| Charge state | PWM efficiency | MPPT efficiency (Victron / MidNite) | Delta |
|---|---|---|---|
| Bulk charge, cold PV (35 °F) | 60 – 70% | 97 – 98% | +27 – 38% |
| Bulk charge, warm PV (95 °F) | 75 – 82% | 96 – 98% | +14 – 23% |
| Absorption / float | 65 – 75% | 92 – 96% | +17 – 31% |
| Partial load (30% of rated) | 60 – 70% | 94 – 97% | +24 – 37% |
| Full nameplate output | 85 – 95% | 98% | +3 – 13% |
Victron SmartSolar and MidNite Classic both peak at ~98% efficiency, but they get there differently. Victron uses a high-frequency switching topology (proprietary firmware) that flattens the efficiency curve — 96%+ from ~10% load through full nameplate. MidNite Classic uses a slightly lower-frequency topology with a passive cooling architecture that trades a percentage point at partial load for zero moving parts (no fans). In practice, over a full charge cycle both deliver similar daily kWh into a battery bank on the same array.
The bigger architectural difference is not efficiency — it's how the installer configures and monitors the unit after commissioning.
Victron SmartSolar — Bluetooth-native + Cerbo GX
Every SmartSolar unit ships with Bluetooth LE onboard. Configuration is a phone-in-hand process — install the free VictronConnect app, walk up to the unit, pair in 15 seconds, adjust bulk / absorption / float set points, network settings, and load-output timers. This is a categorical time-saver on multi-controller off-grid installs.
For system-level telemetry, a Cerbo GX ($350 range) or Color Control GX ($400 range) polls up to 25 SmartSolar units via VE.Direct or VE.Can. That data streams to the free VRM Portal for remote monitoring — you can push firmware, adjust set points, and pull daily kWh reports from anywhere. Pair with the Victron Color Control GX wall-mount enclosure for a code-compliant integrator.
MidNite Classic — local display + optional MyMidNite cloud
Every Classic ships with a fully-functional local display (buttons + LCD) that shows real-time V/A/W, daily and lifetime kWh, temperature, and set points. Configuration is done on the unit itself — no phone required. This is a categorical advantage on rooftop / outdoor installs where Bluetooth range is unreliable.
For remote monitoring, MidNite offers the MyMidNite cloud (free, requires an Ethernet or WiFi bridge) and the MNGP remote-mount display for indoor viewing. The Whiz Bang Jr (MNWBJR) is a battery-current sensor that lets multiple Classics share load and adjust charging via a HyperVoc share bus — this is how MidNite parallels controllers on the same bank.
If the installer wants phone-based commissioning and system-wide monitoring, spec Victron.
Victron SmartSolar + Cerbo GX is the gold standard for installers standardized on VictronConnect + VRM Portal. One phone, one login, unlimited job sites, per-unit telemetry.
If the array is 12/24/48/60 V and you need outdoor NEMA 3R enclosure without an extra pot, spec MidNite Classic.
The Classic 150 / 200 / 250 is rated NEMA 3R out of the box, so it mounts on the outside of a cabin or telecom shelter without a secondary enclosure. Victron IP43 requires the unit to live inside a wall-mount pot.
If the input is 100 Vdc, use Classic 150 for higher throughput; if 250 Vdc, use SmartSolar 250/100.
At 100 Vdc PV, MidNite Classic 150-96A puts 4.8 kW into a 48 V bus; Victron 100/50 puts 2.9 kW. At 250 Vdc PV, Victron 250/100 puts 5.8 kW; MidNite Classic 250-63A puts 3.15 kW. Match the controller to the string design ceiling.
If you need Solar + Wind + Hydro on the same charger, spec MidNite Classic.
The Classic supports three renewable input modes on the same hardware — Solar, Wind, and Hydro. Victron SmartSolar is Solar only; wind and hydro require separate controllers.
If the system is a multi-source hybrid with Cerbo GX + MultiPlus-II + Lynx Distributor, spec Victron end-to-end.
Victron's Cerbo GX ecosystem locks all peripherals — SmartSolar, MultiPlus-II inverter/charger, Lynx battery bus, BMV shunt — into one telemetry pipeline via VE.Can. Mixing brands in this stack loses the ecosystem advantage.
Both brands offer a 5-year standard warranty on all volume MPPT models, but the RMA paths differ.
| Attribute | Victron Energy | MidNite Solar |
|---|---|---|
| Standard warranty | 5 yr (SmartSolar / BlueSolar) | 5 yr (Classic family) |
| Warranty registration | Auto-registered via distributor S/N at ship | Auto-registered via MidNite serial database |
| RMA process | Through authorized distributor (PES) — advance ship available for verified contractor accounts | Direct to MidNite Arlington WA — 3–5 business day turn |
| Field service support | VictronConnect firmware upgrade + VRM diagnostic + Victron US service escalation | MidNite tech support (Arlington WA) — phone + email + community forum |
| Field-replaceable modules | No — sealed enclosure | Field-swappable power module on Classic (specialty) |
| Cloud / firmware | VRM Portal (free) + firmware push via VictronConnect | MyMidNite (free) + local USB firmware |
Two practical patterns: (1) Victron's advantage is firmware velocity — bug fixes and feature additions push to the Cerbo GX and to every paired SmartSolar within days; MidNite firmware moves at a slower cadence; (2) MidNite's advantage is fewer moving parts — no Bluetooth radio to fail, no cloud dependency, and the Classic will operate for 20+ years in a telecom shelter with zero cloud contact.
| Family | Model | PES SKU link | Contractor price band |
|---|---|---|---|
| Victron SmartSolar | SmartSolar MPPT 100/50 (48V, 50A) | BlueSolar 150/60 | ~$358 – $470 |
| Victron SmartSolar | SmartSolar MPPT 150/70-MC4 VE.Can | SCC115070511 | ~$465 |
| Victron SmartSolar | SmartSolar MPPT 250/100-MC4 VE.Can | SCC125110511 | ~$835 |
| Victron SmartSolar | SmartSolar MPPT RS 450/100-MC4 | SCC145110512 | ~$914 |
| Victron SmartSolar | SmartSolar MPPT RS 450/200-MC4 | SCC145120510 | ~$1,935 – $2,173 |
| MidNite Classic | Classic 150 96A MPPT | Classic 150 / 200 | ~$562 – $710 |
| MidNite Classic | Classic 200 MPPT | Classic 200 | ~$675 |
| MidNite Classic | Classic 250 63A MPPT | CLASSIC250 | ~$752 – $996 |
| MidNite Classic | Classic 250-SL Solar Only | CLASSIC250-SL | ~$542 |
| MidNite Barcelona | Barcelona 200A 600V 48V MPPT | MNBCLNA | ~$2,094 |
Registered contractors — free calculators on the PES portal
- String Sizing Calculator — Voc/Vmp string voltage vs controller Vdc-max, temperature-corrected per NEC 690.7.
- Compatibility Checker — controller + battery + panel compatibility against manufacturer-approved lists.
- Solar System Calculator — end-to-end kW-DC / kW-AC / battery sizing for a target daily kWh load.
- Voltage Drop Calculator · Load Balance Calculator
Register for the contractor portal → Free. Verified installers only.
What is the biggest difference between Victron SmartSolar and MidNite Classic?
Victron's differentiator is Bluetooth-native configuration via the VictronConnect app plus Cerbo GX system integration; MidNite's differentiator is a fully-functional local display (no phone required), NEMA 3R outdoor-rated enclosure, and 3-mode MPPT (Solar, Wind, Hydro). Both are 5-year-warranty MPPT controllers with ~98% peak efficiency.
Which controller has higher throughput at 100 Vdc PV input?
MidNite Classic 150-96A puts 4.8 kW into a 48 V battery bus at 100 Vdc PV input, vs Victron SmartSolar 100/50 which puts 2.9 kW. If your array design lands at 100 Vdc, the Classic 150 wins on throughput per unit.
Which controller has higher throughput at 250 Vdc PV input?
Victron SmartSolar 250/100 puts 5.8 kW into a 48 V bus at 250 Vdc PV input, vs MidNite Classic 250-63A which puts 3.15 kW. At 250 Vdc string voltages, the SmartSolar 250/100 wins on throughput per unit.
Can I parallel multiple Victron SmartSolar or MidNite Classic units on one battery bank?
Yes for both. Victron supports up to 25 SmartSolar units via a Cerbo GX / Color Control GX + VE.Direct or VE.Can. MidNite Classic supports up to 10 controllers on one bank via a shared Whiz Bang Jr battery-current sensor (MNWBJR).
Do both controllers support 3-mode MPPT (Solar, Wind, Hydro)?
No — only MidNite Classic supports Solar, Wind, and Hydro on the same hardware. Victron SmartSolar is Solar-only; wind and hydro require separate charge controllers.
What warranty do both offer?
5 years is standard on both Victron SmartSolar and MidNite Classic volume MPPT models. PES auto-registers the S/N to your contractor account of record at ship so the full warranty term banks from install date, not purchase date.
Which controller is easier to service in the field?
MidNite Classic wins on field-serviceability — the power module is field-swappable and MidNite's Arlington WA service center offers 3–5 business day RMA turns. Victron SmartSolar is a sealed enclosure with no field-replaceable modules; RMAs route through the authorized distributor (PES) with advance-ship for verified accounts.
