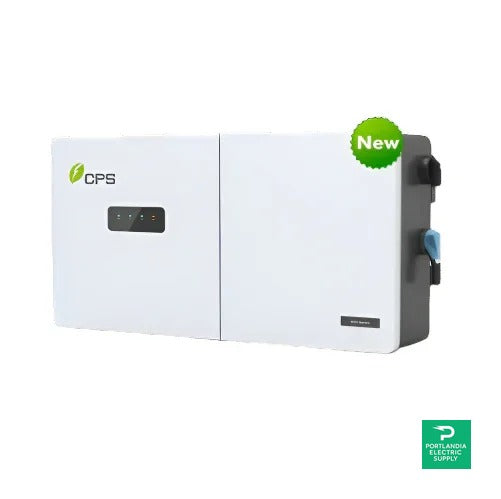

Chint 125kW 3Phase String Inverter Centralized WB, 1500VDC, 1MPPT - SCH125KTL-DO/US-600
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SIV-0409
- MPN
- SCH125KTL-DO/US-600-C
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for Chint Power. 50,000+ SKUs from 169 authorized brands.
Chint 125kW 3-Phase String Inverter Centralized, 1500VDC, 1MPPT
The Chint Power SCH125KTL-DO/US-600-C inverter is expertly designed for optimum performance in ground mount applications across North America. This robust inverter boasts a peak efficiency of 99.1%, ensuring high operational efficiency under varying conditions. Encased in a durable NEMA Type 4X enclosure, it withstands wide temperature fluctuations, providing reliability and resilience. With integrated smart-grid features and the capability for remote firmware upgrades via the CPS Flex Gateway, the inverter is a cutting-edge solution for modern energy needs.
Product Features
Advanced Smart-Grid Capabilities
Equipped with superior smart-grid functionalities, including remote firmware upgrading, the Chint Power SCH125KTL-DO/US-600-C allows seamless integration with grid standards.
Efficient Design and High Performance
With an impressive peak efficiency of 99.1% and CEC efficiency of 98.5%, this inverter optimizes energy conversion, supporting high performance across diverse environments.
Durable NEMA Type 4X Enclosure
The inverter features a tough NEMA Type 4X rated enclosure, ensuring durability and protection against harsh weather conditions, enhancing its lifespan.
User-Friendly Interface
Designed with LED indicators and WiFi connectivity, the inverter's interface facilitates easy monitoring and management through the CPS Flex Gateway.
Separable Wire-box Design
For quick servicing and enhanced flexibility, the wire-box design can be easily separated, simplifying installation and maintenance processes.
How It Works
The Chint inverter efficiently converts DC input from solar panels into usable AC power, utilizing its advanced MPPT technology to maximize energy yield. Designed for high compatibility, the system supports both copper and aluminum AC connections, ensuring broad utility.
MPPT Technology
Single Maximum Power Point Tracking (MPPT) enables precise control over solar input, increasing efficiency and adaptability under fluctuating sunlight conditions.
CPS Flex Gateway
The CPS Flex Gateway enhances inverter functionality by enabling real-time monitoring, configuration, and remote diagnostics, essential for optimal operation and system troubleshooting.
Integrated Disconnect Switches
Built-in AC and DC disconnect switches provide safe and convenient disconnection for maintenance and emergency shutdowns, ensuring user safety.
Specifications
| Model Name | CPS SCH125KTL-DO/US-600 |
| Max. PV Power | 187.5kW |
| Max. DC Input Voltage | 1500V |
| Number of MPP Trackers | 1 |
| Rated AC Output Power | 125kW |
| Power Factor | >0.99 (0.8 adjustable) |
| Enclosure Protection Degree | NEMA Type 4X |
| Operating Temperature Range | -22F to +140F / -30C to +60C |
| Weight | Inverter: 121lbs / 55kg; Wire-box: 33lbs / 15kg |
| Warranty | 5 years (extendable up to 20 years) |
| SKU | PES-SPS-SIV-0409 |
|---|---|
| MPN | SCH125KTL-DO/US-600-C |
| Manufacturer | Chint Power |
