Chint 125kW 3Phase String Inverter Distributed WB, 1500VDC, 1MPPT - SCH125KTL-DO/US-600

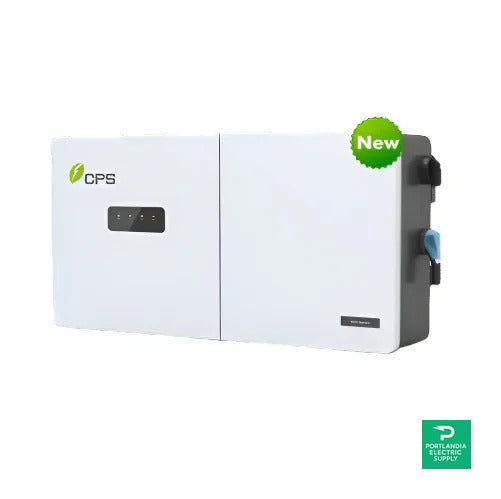

Chint Power SCH125KTL-DO/US-600-DString Inverter

The Chint Power SCH125KTL-DO/US-600 is an advanced 125kW three-phase string inverter designed specifically for ground-mounted applications. This powerhouse inverter is engineered to deliver exceptional performance in diverse environments, boasting a maximum efficiency of 99.1% and a comprehensive operational capability that ensures reliable energy conversion. Ideal for North American grid applications, this inverter combines cutting-edge technology with robust safety features, making it a perfect choice for optimizing solar energy use.

Product Features

High Efficiency Performance

The Chint Power SCH125KTL-DO/US-600 stands out with its impressive peak efficiency of 99.1%. This high level of performance ensures that solar energy is converted into usable electricity with minimal losses, making it an effective choice for both residential and commercial installations.

Wide Voltage Range

Featuring an extensive operating input voltage range of 860-1450Vdc, this inverter operates efficiently across varying solar conditions. This flexibility ensures optimal performance even in fluctuating environmental setups, enhancing the overall user experience.

Enhanced Safety Features

Designed with safety in mind, the inverter includes load-rated AC and DC disconnect switches, as well as touch-safe DC fuse holders. These features provide peace of mind for users and contribute to the inverter's reliability in outdoor installations.

Advanced Communication Capabilities

The integrated CPS Flex Gateway offers versatile monitoring options, allowing for remote upgrades and diagnostics. This capability helps users stay connected and informed about their solar system's performance, making maintenance simpler and more efficient.

Robust Enclosure Design

This inverter is built within a NEMA Type 4X enclosure, providing excellent protection against environmental factors such as dust and water. This rugged design ensures that the inverter remains operational in harsh weather conditions, further enhancing its versatility.

How It Works

The Chint Power SCH125KTL-DO/US-600 effectively converts direct current (DC) generated by solar panels into alternating current (AC) suitable for grid integration. It's equipped with key components that optimize its performance in various conditions.

MPP Tracker

The inverter includes a single Maximum Power Point Tracker (MPPT) that allows for better energy harvesting from solar panels. This feature ensures that the system operates at maximum efficiency, regardless of environmental changes.

Cooling Method

Equipped with variable speed cooling fans, the inverter maintains optimal operating temperatures, which is essential for preserving performance and longevity. This active cooling system adjusts to temperature changes, enhancing reliability.

DC and AC Connection

Utilizing centralized and standard wire-box designs, the inverter provides straightforward connections for DC and AC wiring. This ease of installation simplifies setup and ensures efficient energy flow from the solar system.

Specifications
