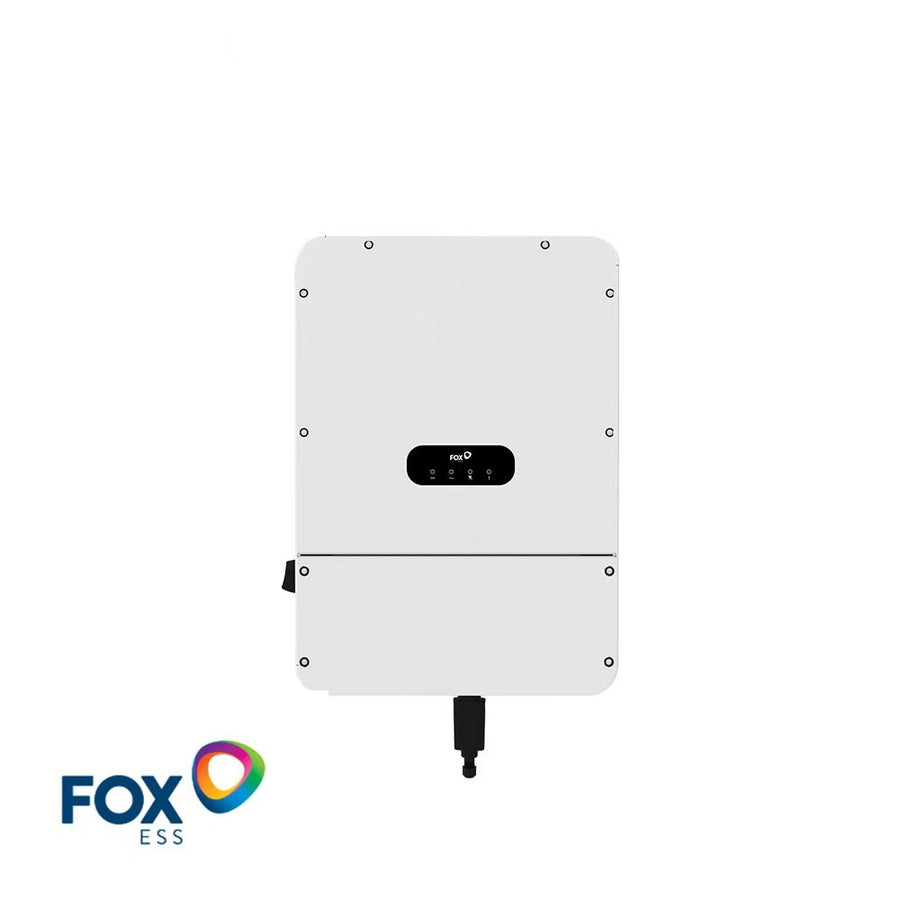

The FoxESS H1-11.4-US hybrid inverter is a high-performance energy solution designed to meet the growing demand for reliable, efficient, and intelligent power management. Built for residential and light commercial solar systems, this advanced hybrid inverter seamlessly integrates solar generation, battery storage, and grid power into one efficient platform. With cutting-edge features, multiple MPPTs, and integrated WiFi monitoring, it delivers exceptional flexibility and long-term performance.
Engineered to handle complex energy needs, the FoxESS H1 series is trusted for its stable output, smart energy optimization, and future-ready design. Whether your goal is to maximize solar self-consumption, reduce grid dependency, or ensure power availability during outages, this inverter provides a complete and dependable solution.
FoxESS H1-11.4-US hybrid inverter US split-phase systems ke liye design kiya gaya high-voltage hybrid unit hai: 3 MPPT ke saath 22.8 kW max PV input, battery bus 85–460 V (50 A), aur Type 4X outdoor enclosure — AC/DC coupling, SunSpec comms & integrated APS/Tigo transmitter ke saath fast, code-friendly installs.
FoxESS H1-11.4-US hybrid inverter 120/240 V split-phase output (11.4 kW), MPPT window 80–550 V (full-load 305–500 V), Wi-Fi/LAN monitoring, CAN/RS485 BMS interface, aur fan-less natural-convection cooling provide karta hai.
| PV input (DC) | |
|---|---|
| Max PV input (STC) | 22,800 W |
| Voltage | 600 V max · start 100 V · rated 380 V |
| MPPT window | 80–550 V (full-load 305–500 V) |
| MPPTs / strings | 3 MPPT · 2 / 1 / 1 strings |
| Input / Isc (per MPPT) | 28/14/14 A · 44/22/22 A |
| Battery interface | |
| Voltage range / rated | 85–460 V / 360 V (HV LFP) |
| Charge / discharge | 50 A cont.; max power 17.1 kW (DC) / 12.54 kW (AC) |
| Comms | CAN 2.0, RS485; Meter, CT, ISO alarm |
| AC (grid) | |
| Rated output | 11,400 W @ 120/240 V; current 47.5 A; PF >0.99; THDi <3% |
| Input range / freq. | 211–264 V · 57–63 Hz |
| Backup output | |
| Rated / max apparent | 11.4 kW · 17.1 kVA |
| Peaks | 10-min 13.84 kVA · 60-s 15.38 kVA · LRA up to 160 A |
| Voltage / freq. | 120/240 V split-phase · 60 Hz |
| Mechanical & ratings | |
| Enclosure / cooling | Type 4X (IP66) · natural convection · <35 dB |
| Dimensions (W × H × D) | 18.2″ × 25.9″ × 9.2″ |
| Weight | ≈ 83.8 lb |
| Parallel operation | Up to 4 inverters |
| Standards | UL1741 SA/SB/CRD · IEEE 1547-2018/1547a-2020/1547.1-2020 · FCC Part 15 Class B |
The FoxESS H1-11.4-US hybrid inverter is built with both performance and scalability in mind. It allows users to efficiently manage energy flows between solar panels, battery systems, and the utility grid. This hybrid capability ensures optimized energy usage throughout the day while maintaining high conversion efficiency.
With a power rating of 11.4kW, it is suitable for high-demand households and small commercial setups. The inverter supports advanced energy scheduling, enabling users to prioritize solar energy during peak hours and store excess power for later use.
One of the standout features of this inverter is its 3 MPPT (Maximum Power Point Tracking) architecture. This design enables the system to manage multiple solar panel arrays with different orientations or shading conditions efficiently. As a result, solar energy production remains optimized even when conditions are less than ideal.
The inclusion of three MPPTs ensures higher energy yield, improved system reliability, and greater flexibility in system design. This makes the inverter suitable for complex rooftop layouts and evolving solar installations.
Smart energy management requires real-time data, and this inverter delivers exactly that. Built-in WiFi connectivity allows users to monitor system performance remotely through an intelligent energy management platform. Users can track power generation, consumption patterns, battery status, and grid interaction at any time.
This feature helps in identifying performance trends, optimizing energy usage, and detecting potential issues early. With WiFi included as standard, there is no need for additional hardware, making system setup simpler and more cost-effective.
The FoxESS H1-11.4-US hybrid inverter supports a wide range of high-voltage battery systems, allowing users to build or expand their energy storage capacity as needs grow. Its hybrid operation enables smooth switching between grid-connected and backup modes, ensuring uninterrupted power supply during outages.
This flexibility makes it ideal for users planning long-term energy independence. The inverter intelligently manages charging and discharging cycles to extend battery life while maintaining consistent power availability.
Designed to meet strict safety and grid compliance standards, this inverter incorporates multiple layers of protection, including over-voltage, short-circuit, and thermal protection. Its robust construction ensures long-term durability even under demanding operating conditions.
The system also features rapid response capabilities to grid fluctuations, helping maintain stable output and protect connected appliances. This level of reliability makes it a trusted choice for mission-critical energy applications.
The inverter is officially identified as FoxESS 11.4kW Hybrid Inverter 3 MPPT, WIFI Included - H1-11.4-US ( 30-148-1133F-00 ), reflecting its exact configuration and performance rating. This model is engineered for efficiency, adaptability, and smart energy control in modern solar installations.
