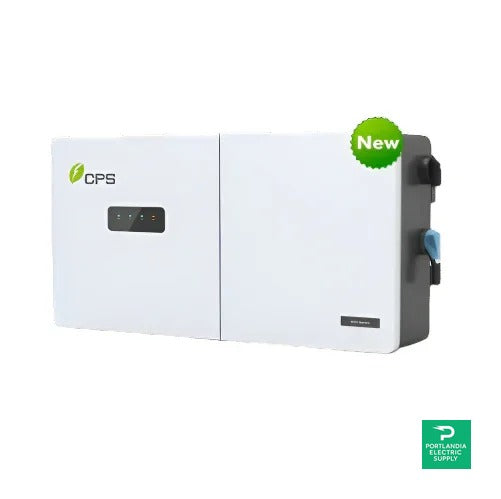

Chint 100kW 3Phase String Inverter Distributed WB, 1500VDC, 1 MPPT-480Vac - SCH100KTL-DO/US-480

Chint Power SCH100KTL-DO/US-480-D

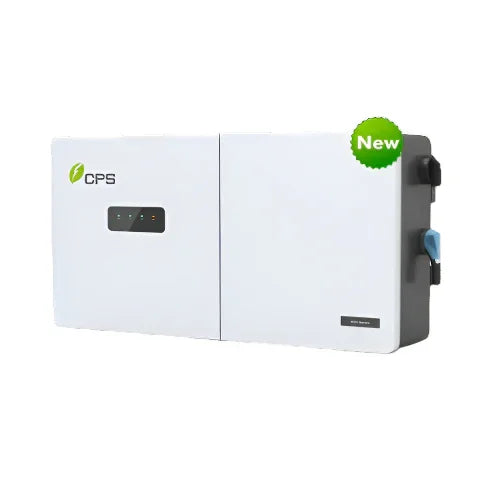

Chint 100 kW 3-Phase String Inverter - SCH100KTL-DO/US-480

The Chint Power SCH100KTL-DO/US-480 is a cutting-edge 100 kW three-phase string inverter designed for distributed generation applications. Engineered for efficiency and reliability, this inverter operates at high performance levels within various environmental conditions. With its robust features, including a NEMA Type 4X enclosure and advanced smart-grid capabilities, the SCH100KTL-DO/US-480 sets a new standard in the renewable energy sector, making it ideal for diverse energy solutions.

Product Features

Advanced Efficiency

The Chint Power SCH100KTL-DO/US-480 boasts a remarkable max efficiency of 98.9%. This high efficiency ensures that more energy harvested from solar panels is converted into usable power, thereby maximizing energy output and reducing investment costs for users.

Versatile Voltage Input

With a DC input voltage range of 750-1450 Vdc, this inverter is adaptable to different setups, allowing for significant flexibility in system design. This feature enhances its usability in various projects, from residential to commercial installations.

Robust Protection Features

The inclusion of Type II surge protection for both AC and DC connections safeguards the inverter against surges and spikes in power, ensuring reliable operation and extending the lifespan of the unit.

User-Friendly Interface

Equipped with LED indicators and WiFi connectivity, the inverter facilitates easy monitoring and management through an intuitive app. This feature enhances user engagement and simplifies operational oversight for both homeowners and system administrators.

Environmentally Friendly Design

The SCH100KTL-DO/US-480 is engineered to operate efficiently across a broad temperature range, from -22°F to +140°F (-30°C to +60°C). Designed for outdoor use, it features a durable NEMA Type 4X enclosure to withstand harsh weather conditions while ensuring reliable performance.

How It Works

The Chint Power SCH100KTL-DO/US-480 functions by converting the DC electricity generated by solar panels into AC electricity suitable for use on the grid or in home systems. It uses advanced Maximum Power Point Tracking (MPPT) technology to optimize energy harvest across varying solar conditions.

DC Input System

The inverter utilizes a centralized DC input system with a load-rated DC switch for safe operation. This system ensures optimal energy capture from the solar array while allowing for easy maintenance and serviceability.

AC Output System

Power conversion is managed through a robust AC output system, which delivers a rated power output of 100 kW at 480 Vac. The inverter can handle maximum output currents, making it suitable for large-scale energy production.

Monitoring and Communication

Through the integration of Modbus RS485 and the CPS FlexOM Gateway, this inverter allows for real-time monitoring and remote diagnostics. Users can track performance and conduct firmware upgrades seamlessly.

Specifications
