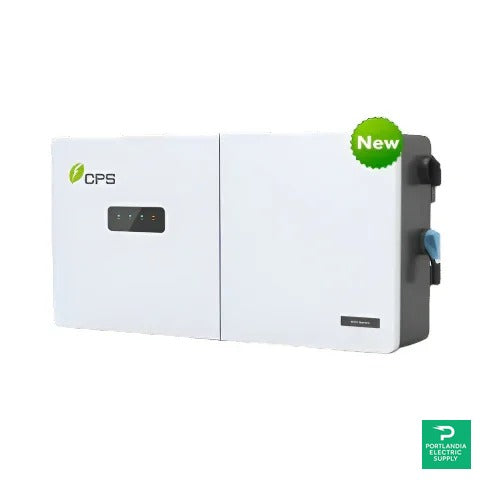

Chint 100kW 3Phase String Inverter Distributed WB, 1500VDC, 1 MPPT - SCH100KTL-DO/US-600

Chint Power SCH100KTL-DO/US-600-D- String Inverter

Chint 100kW 3-Phase String Inverter - SCH100KTL-DO/US-600

The Chint Power SCH100KTL-DO/US-600 is a robust and efficient three-phase string inverter designed specifically for ground mount applications in North America. With a maximum power output of 100kW and advanced features, this inverter delivers superior performance and reliability. It is engineered to provide high efficiency and suitable compatibility with various solar panel configurations, making it an ideal choice for both residential and commercial solar systems.

Product Features

High Efficiency Performance

The Chint Power SCH100KTL-DO/US-600 boasts a peak efficiency of 99.1%, ensuring optimal energy conversion from DC to AC. This exceptional performance translates to better energy yield and reduced electricity costs for users, making it a valuable addition to any solar energy system.

Durable and Reliable Design

Constructed with a NEMA Type 4X rated enclosure, this inverter is designed to withstand harsh weather conditions and provide long-lasting functionality. This level of protection enhances user confidence, knowing that their investment is secure against the elements.

Flexible Integration Options

Equipped with one MPPT and supporting up to 20 fused inputs, the Chint Power inverter offers enhanced flexibility in system design. Users can easily connect a range of solar panels, maximizing installation efficiency and usability. This feature simplifies the setup process and adapts to varying system requirements.

Advanced Smart-Grid Features

With compliance to CA Rule 21 and intelligent smart-grid functionalities, users can benefit from improved grid interaction. This inverter supports features like Volt-RideThru and Freq-Watt, promoting better grid stability and energy management.

User-Friendly Monitoring and Maintenance

The integrated CPS Flex Gateway allows for remote monitoring and firmware upgrades, making it easier for users and technicians to maintain the inverter's performance. This feature ensures that the system remains up to date with the latest software and operational enhancements.

How It Works

The Chint Power SCH100KTL-DO/US-600 operates by converting the direct current (DC) generated by solar panels into alternating current (AC), which is then utilized by the electrical grid. Key components work seamlessly to provide efficient power conversion and management.

Single MPPT Design

This inverter features a single Maximum Power Point Tracker (MPPT) that optimally extracts energy from the solar array, ensuring maximum efficiency throughout the day, regardless of varying sunlight conditions.

Integrated Protection Mechanisms

With built-in DC and AC disconnect switches, along with advanced surge protection, this inverter maintains safe operations and safeguards against voltage spikes, delivering reliable performance over time.

Efficient Cooling System

The variable speed cooling fans help maintain an optimal temperature, ensuring the inverter operates efficiently without overheating. This contributes to prolonged equipment lifespan and consistent energy production.

Specifications
