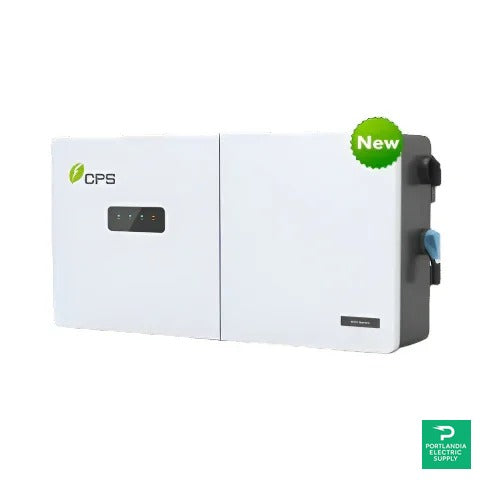

Chint 100kW 3Phase String Inverter Centralized WB, 1500VDC, 1MPPT - SCH100KTL-DO/US-600

Chint 100kW 3Phase String Inverter Centralized WB

The Chint Power SCH100KTL-DO/US-600-C inverter is a robust power solution designed for North American ground mount applications. With a peak efficiency of 99.1%, this high-performance inverter handles a maximum PV power of 187.5kW, offering advanced features tailored to meet diverse energy needs. Ideal for both technical users and field technicians, it ensures reliable functionality with an operating temperature range of -30C to +60C and NEMA Type 4X protection.

Product Features

High Efficiency Design

The Chint Power inverter features an impressive efficiency of up to 99.1%, optimizing energy conversion and ensuring maximum power yield, even in challenging conditions.

Versatile Voltage Range

Operating across a broad voltage range of 860-1450Vdc, this inverter supports significant input flexibility, enhancing its adaptability in various installation scenarios.

Advanced Grid Compatibility

With support for a variety of grid standards like IEEE 1547a-2014 and smart-grid features, this inverter seamlessly integrates into existing grid networks, offering reliability and efficiency.

Integrated Safety Features

Equipped with safety mechanisms like touch-safe DC fusing and load-rated disconnection switches, Chint's inverter prioritizes user safety and device protection at all times.

Comprehensive Remote Monitoring

Utilizing the CPS Flex Gateway, the inverter provides full remote monitoring capabilities, allowing ease of access and control, as well as firmware upgrades, enhancing operational supervision.

How It Works

This inverter uses a straightforward yet powerful operational design. It efficiently converts DC input from photovoltaic systems into usable AC power, seamlessly connecting to the grid through its three-phase system. Its robust design facilitates integration with multiple components, assuring steady power delivery.

Efficiency Through Transformerless Topology

The transformerless design of the inverter not only maximizes efficiency but also minimizes losses during the power conversion process, making it ideal for high-output installations.

Multi-Point Power Tracking (MPPT)

Featuring a precise MPPT system, it ensures optimal energy harvest from photovoltaic arrays, even under rapidly changing environmental conditions.

Reliable Cooling System

The variable speed cooling fans maintain optimum operating temperatures, thereby extending the product lifespan and maintaining performance stability during peak usage.

Specifications
