AC Condenser Electrical Requirements — 2026 Contractor Guide
Getting the electrical right on an AC condenser install is not optional — it is what keeps the permit signed off and the compressor running for fifteen years. This guide covers breaker sizing, wire selection, disconnect placement, and the NEC 2023/2026 code references you actually need on the job site. Everything below assumes a standard 240V split-system condenser. If you are working on a heat pump or packaged unit, start with our general AC electrical guide first.
NEC Article 440 Overview
Article 440 of the National Electrical Code governs all air-conditioning and refrigerating equipment. Unlike general motor circuits under Article 430, Article 440 recognizes that compressor motors start under high locked-rotor current and run at variable load. The two numbers that matter most are on the unit nameplate:
- MCA (Minimum Circuit Ampacity) — the minimum ampacity the branch-circuit conductors must carry. Size your wire to this number times 1.25 for continuous load, then match to NEC Table 310.16.
- MOP (Maximum Overcurrent Protection) — the largest breaker or fuse permitted. Your breaker must be ≤ MOP. No exceptions.
Key code citations to keep in your back pocket:
- NEC 440.22 — Overcurrent protection must not exceed nameplate MOP.
- NEC 440.32 — Branch-circuit short-circuit and ground-fault protection sizing.
- NEC 440.14 — Disconnecting means must be within sight of the condenser (≤50 ft and visible).
- NEC 110.3(B) — Install per manufacturer's instructions; the nameplate governs when it conflicts with a rule-of-thumb table.
- NEC 310.16 — Ampacity tables for conductor sizing.
- NEC 250.122 — Equipment grounding conductor sizing.
AC Condenser Electrical Spec Table (by Tonnage)
Use this table as a field reference. Always confirm against the unit nameplate before pulling wire or ordering breaker.
| Tonnage | BTU | Typical MCA | Typical MOP | Min Wire (Copper) | Typical Breaker | Notes |
|---|---|---|---|---|---|---|
| 1.5 Ton | 18,000 | 12–15A | 20–25A | 12 AWG | 20A | Often 120V or 240V |
| 2 Ton | 24,000 | 14–18A | 25–30A | 12 AWG | 25A | 240V standard |
| 2.5 Ton | 30,000 | 17–21A | 30–35A | 10 AWG | 30A | 240V |
| 3 Ton | 36,000 | 19–24A | 30–40A | 10 AWG | 30A | Most common residential |
| 3.5 Ton | 42,000 | 22–28A | 35–45A | 10 AWG | 35A | 240V |
| 4 Ton | 48,000 | 25–32A | 40–50A | 8 AWG | 40A | 240V |
| 5 Ton | 60,000 | 32–40A | 50–60A | 8 AWG | 50A | May need #6 for long runs |
For wire, we stock THHN/THWN-2 stranded copper in the gauges you need for condenser runs. For 8 AWG, our Cerro Wire 8 AWG THHN/THWN-2 Stranded Copper Black 500' at $347.00 (SKU: PES-PA-ELC-0891) and the red companion reel at $442.74 (SKU: PES-PA-ELC-0892) are what most of our contractor customers pull for 4–5 ton jobs.
Step-by-Step Installation Guide
Here is the sequence we recommend for a clean, code-compliant condenser install. This assumes a 240V split-system residential replacement or new construction.
- Size the breaker. Read the nameplate MOP. Select a double-pole breaker ≤ MOP. Common residential sizes are 20A–60A. If the load center is maxed out, consider a sub-panel or a breaker resize per our sizing guide.
- Pull the wire. Size to MCA × 1.25 for continuous load. Reference NEC Table 310.16. For outdoor runs, use THHN/THWN-2 in EMT or PVC conduit. For typical 2–3 ton units, 10 AWG is standard. For 4–5 ton, step up to 8 AWG. For runs over 75 ft, upsize one gauge to control voltage drop.
-

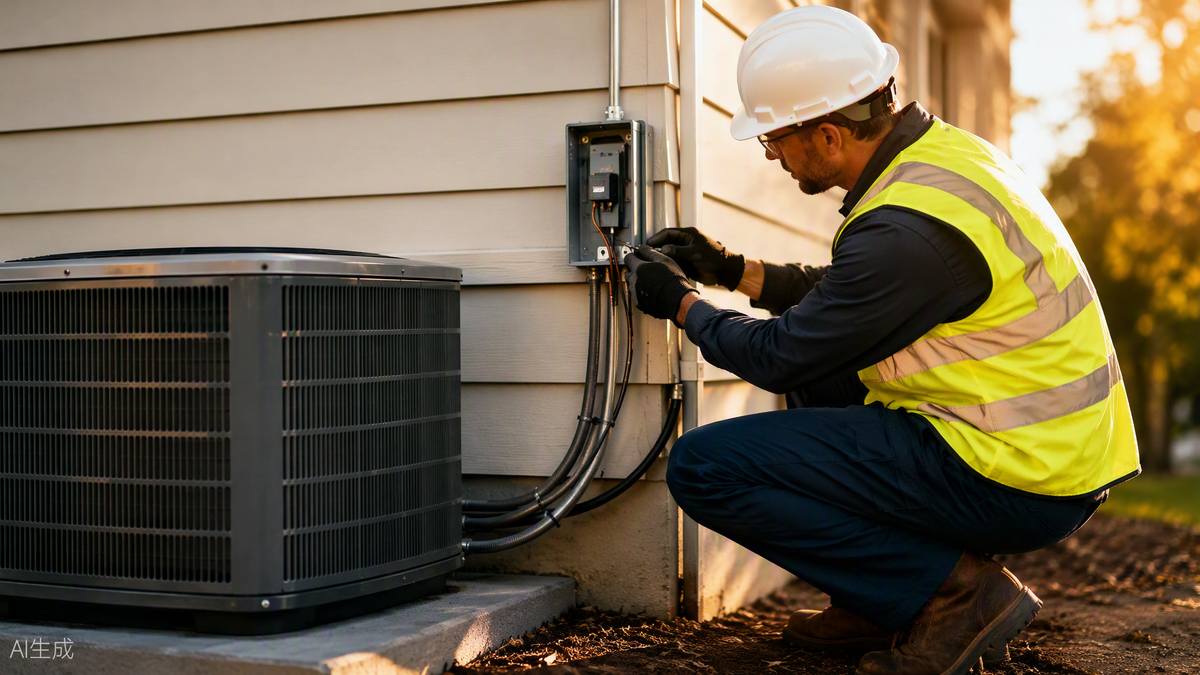

Install the disconnect. NEC 440.14 requires a disconnect within sight of the condenser — max 50 ft and visible. Non-fused disconnects are standard when the breaker is already ≤ MOP. We stock several options in our safety and protection collection:
SKU: PES-PA-ELC-1337Siemens 30A 2-Pole Disconnect 240V Non-Fused$92.97SKU: PES-7560902803590-130A NON-FUSED AC Disconnect$99.99SKU: PES-7560903065734-130A 2P 240V Non-Fused Safety Switch$99.99SKU: PES-PA-ELC-2022Eaton 100A AC Non-Fused Safety Switch DH363URK$884.40
- Run conduit and fittings. Secure the whip or conduit run from disconnect to condenser. We carry compression connectors and fittings including the Arlington EMT Compression Connector 1-1/4" Insulated Raintight at $3.79 (SKU: PES-PA-ELC-0894) and the Topaz 3/4 IN EMT RainTight Compression Connector at $4.25 (SKU: PES-PA-ELC-1345).
- Ground properly. Size the equipment grounding conductor per NEC Table 250.122 based on the breaker size. For a 30A–60A breaker, 10 AWG copper is typically required. Bond the condenser frame, disconnect enclosure, and conduit system back to the panel ground.
- Label and test. Mark the disconnect and panel directory. Megger the conductors if it is a new run. Start the unit and check amp draw against the nameplate RLA (Rated Load Amps) after a ten-minute runtime.
Mini-Split vs Central AC Condenser Electrical Comparison
Contractors are installing more mini-splits every year. Here is how the electrical side breaks down next to a traditional central condenser.
| Factor | Central AC Condenser | Mini-Split Outdoor Unit |
|---|---|---|
| Voltage | 240V standard | 208/230V standard |
| Breaker | 20A–60A double-pole | 15A–40A double-pole |
| Disconnect required | Yes — NEC 440.14 | Yes — NEC 440.14 |
| Wire run | Line-voltage from panel to condenser | Line-voltage to outdoor unit; low-voltage to indoor heads |
| Conduit | EMT or PVC whip standard | Interconnect cable (manufacturer-specific) |
| Voltage drop sensitivity | High — long runs common in rural installs | Moderate — outdoor unit usually closer to house |
| Multi-zone ampacity | N/A | Outdoor unit MCA covers all indoor heads combined |
The bottom line: both need a code-compliant disconnect, both need wire sized to MCA, and both need grounding per 250.122. The mini-split just adds a low-voltage control cable you do not have on a central system.
Voltage Drop Guidance
NEC recommends keeping branch-circuit voltage drop under 3%. On a 240V circuit, that is 7.2V. In practice, once you are past 75 ft from panel to condenser, you should upsize at least one gauge to stay within tolerance and reduce conductor heating.
| Run Length | 2–3 Ton (Standard Wire) | 2–3 Ton (Upsized) | 4–5 Ton (Standard Wire) | 4–5 Ton (Upsized) |
|---|---|---|---|---|
| 0–50 ft | 10 AWG | 10 AWG | 8 AWG | 8 AWG |
| 51–75 ft | 10 AWG | 8 AWG | 8 AWG | 6 AWG |
| 76–100 ft | 8 AWG | 8 AWG | 6 AWG | 6 AWG |
| 101–150 ft | 8 AWG | 6 AWG | 6 AWG | 4 AWG |
If you are doing rural work or a panel relocation, measure the actual run and calculate drop with the conductor resistance from NEC Chapter 9, Table 8. When in doubt, pull the next size up — the material cost difference is cheaper than a callback.
Our 8 AWG Cerro Wire and Omni Cable 8 AWG RHW-2 (per 1000Mtr, SKU: PES-PA-ELC-0894) are the go-to choices when you need to upsize for distance.
R-32 Refrigerant Transition Note
If you are working in a jurisdiction that has adopted A2L-compatible component requirements, verify that your disconnect and conduit seals are rated appropriately. The wire, breaker, and grounding do not change.
