If you have ever watched the lights die during an ice storm, heard the sump pump go silent, and felt the house start its slow slide toward the temperature outside, you already understand why standby generators exist. What surprises most people is how far the technology has come. The modern 20kW air-cooled standby is quiet enough to hold a conversation next to, starts itself within seconds of an outage, manages its own exercise schedule, and texts you when it needs attention. The Cummins Quiet Connect RS20ACE 20kW standby generator sits squarely in that modern class, and it has become one of the units we recommend most often for whole-home backup on 200-amp services.

This guide is written for two audiences at once: homeowners trying to decide whether 20kW is the right size, and the electricians and GCs who install these units and want a straight answer on load math, transfer switch integration, code requirements, and how the Cummins stacks up against the Generac alternatives on our standby generators page. Where a figure depends on configuration or production revision, we say so and tell you to verify against the current Cummins spec sheet — that document is the final authority, not any blog post, ours included.

What the RS20ACE Is — and Where It Fits in the Lineup

Understanding the Cummins RS20ACE Generator

Quiet Connect™ Technology

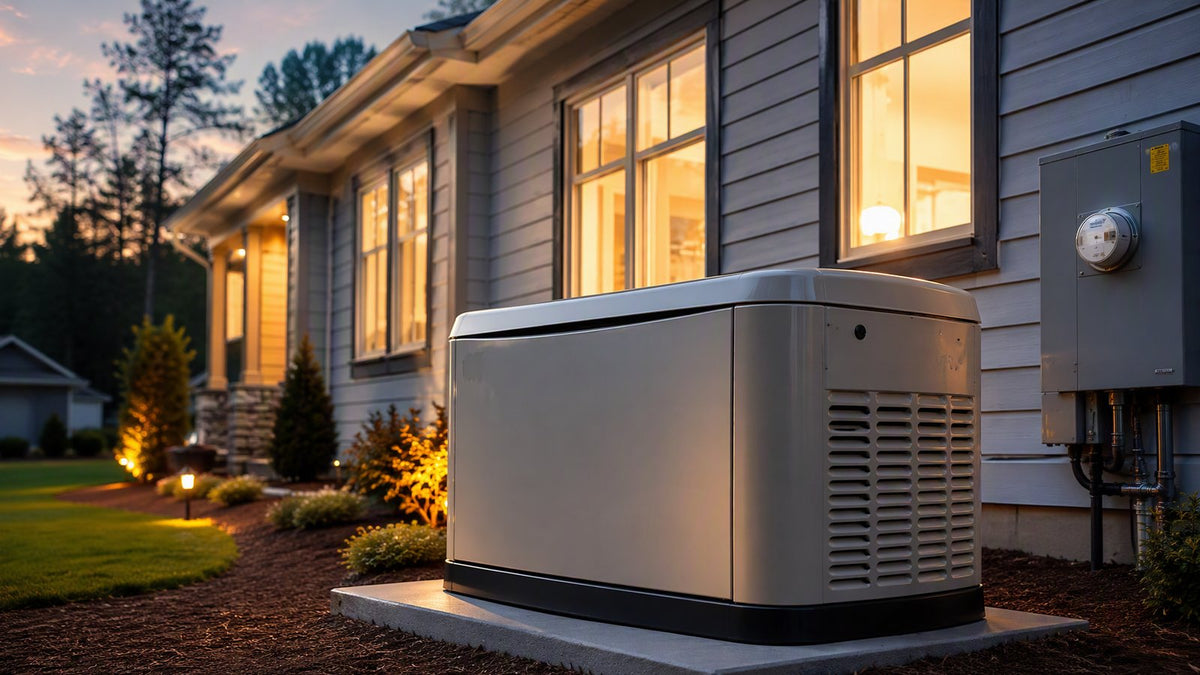

The RS20ACE is part of the Cummins Quiet Connect series of air-cooled home standby generators: permanently installed, fully automatic units that monitor utility power around the clock. When the grid drops, the transfer switch disconnects your home from the utility, the generator starts, and power is restored — typically in under twenty seconds, often closer to ten. When the utility returns and stabilizes, the system transfers back and the generator cools down and shuts off. Nobody has to be home. Nobody has to drag anything out of the garage.

Power Capacity – 20kW for Whole-Home Use

Within the Quiet Connect family, 20kW is the sweet spot for the most common American residential scenario: a 2,000-3,500 square foot home with a 200-amp service, one central air conditioner, gas heat, and a normal complement of well pump, refrigeration, and electronics. Smaller 13-17kW units force harder choices about which circuits get power. Larger 24-36kW units cost more to buy and install and make sense mainly for all-electric homes or properties with multiple AC systems. The 20kW class hits the intersection of capability and installed cost where most of our customers land.

Design features that matter in the field

• Quiet Connect sound engineering. The enclosure, intake, and exhaust are tuned as a system, putting normal-load operation in the mid-60s dB(A) range at the standard 23-foot measurement distance — quiet enough that most HOAs and neighbors never notice it. Verify the exact rating for your unit on the spec sheet.
• Dual-fuel flexibility. The unit is configured at installation for either natural gas or liquid propane, covering both city lots with gas service and rural properties on LP tanks. Fuel configuration affects output slightly — natural gas derates the engine somewhat versus propane on most air-cooled platforms — so confirm the NG and LP ratings for your fuel before finalizing load plans.
• Remote monitoring. Cummins' connected monitoring lets owners and dealers see status, exercise history, and faults from a phone, which turns the annual "is my generator okay?" question into a glance at an app.
• Self-exercise and diagnostics. The controller runs scheduled exercise cycles and continuously self-tests, flagging battery weakness and service needs before they become no-start failures during an actual outage.
• Corrosion-resistant enclosure. A galvanized, powder-coated enclosure matters more than most buyers realize. Generators live outdoors for decades; enclosure quality is a big part of why some units look and run like new at year twelve and others are rusted apologies by year seven.

Load Sizing: What 20kW Actually Runs

Generator sizing is where installations succeed or fail, and it is pure arithmetic. Twenty kilowatts is roughly 83 amps at 240 volts. The question is what combination of your home's loads fits inside that envelope with room for motor starting surges. Here is the planning table our estimators use for first-pass sizing. Running watts are typical for the equipment class; starting watts reflect the brief inrush when motors spin up.

Add it up honestly and a picture emerges. A home with a 3-ton AC, well pump, sump pump, two refrigeration appliances, furnace blower, and normal lighting runs around 9,000-12,000 watts with everything coincident — comfortably inside 20kW even after reserving surge capacity. That same home with a 4-ton AC, electric water heater, and an EV charging needs active load management to stay inside the envelope, which is exactly what modern transfer switch systems provide. If your load math keeps breaking past 16-17kW of coincident demand, step up a size rather than betting on discipline during an outage — occupants do not ration power gracefully at 2 a.m. in January.

For a deeper walkthrough of the sizing process including the NEC Article 220 calculation method inspectors expect, see our whole-home generator sizing guide, and for how the next size class behaves, our guide to what you need to know about 22kW generators.

Fuel Consumption and Runtime Planning

Key Features of the Cummins RS20ACE

Applications of the Cummins RS20ACE

Maintenance and Longevity of the Cummins RS20ACE

Fuel planning separates paper-backup from real resilience. The figures below are class-typical for air-cooled 20kW units; treat them as planning numbers and verify the RS20ACE's exact consumption curves against the current Cummins spec sheet before committing to tank sizing or gas meter upgrades.

Two practical notes from the field. First, natural gas is operationally wonderful — no tank, no deliveries, no runtime ceiling — but confirm with the gas utility that your meter and service line can supply the generator plus the furnace and water heater simultaneously in January. Utilities handle these capacity checks routinely; ask before the install, not during it. Second, propane owners should size the tank for their actual risk profile. If your region's outage history says three days is the worst case, 500 gallons is generous. If you are the last house on a rural feeder that goes down for a week every ice storm, the 1,000-gallon tank is cheap insurance against a very bad week.

Transfer Switch Integration: The Other Half of the System

A standby generator without an automatic transfer switch is just expensive yard art. The ATS is the device that makes the system both automatic and legal: it senses utility loss, starts the generator, transfers the load, and — critically — makes it physically impossible for generator power and utility power to meet, which protects line workers and your equipment. For the RS20ACE on a typical home, the standard pairing is a 200-amp service-entrance-rated ATS installed between the meter and the main panel, which transfers the entire house as one block.

The wrinkle, as the load math above shows, is that the whole house can exceed 20kW. The industry answer is intelligent load management: the transfer system monitors generator output and automatically sheds designated high-draw circuits — electric water heater, dryer, range, second AC, EV charger — whenever demand approaches capacity, then restores them as headroom returns. From the homeowner's seat, the house simply works; the big discretionary loads quietly take turns. When speccing the package, confirm which load-shed modules are included and which appliances you want managed. Our transfer switches collection covers the ATS options, and a project quote from our team will pair the right switch and load modules with the generator for your panel configuration.

Code and Permitting: What Inspectors Look For

Standby generator installations touch several NEC articles, and inspectors in most jurisdictions know exactly where to look. The highlights:

Permits typically run two or three deep: electrical for the ATS and interconnection, mechanical/plumbing for the gas line, and occasionally a zoning or setback review. Plan for a pad as well — most jurisdictions accept a manufacturer's composite pad on level ground, while some require poured concrete. The Cummins installation manual and your AHJ have the final word; build the permit set around them and inspections go smoothly.

Installation Day: Timeline and What to Expect

Homeowners consistently underestimate how civilized a modern standby install is. There is no trench warfare, no week of chaos — a well-run crew with permits in hand typically finishes the physical work in one to two days. Here is the sequence we see on smooth projects:

The variable that actually drives timelines is almost never the installation itself — it is permitting and the gas utility's meter work. Order the equipment and start the permit set the week you decide; the hardware often arrives before the paperwork clears. One more field note: photograph the gas-line sizing calculation and the nameplate of the existing meter before the utility visit. Having both in hand turns a two-week capacity review into a two-day one more often than it should.

RS20ACE vs. the Competition: An Honest Comparison

We stock multiple generator lines, so we have no house reason to flatter any of them. Here is how the Cummins 20kW stacks against the two alternatives customers cross-shop most, with the caveat that exact specs shift between revisions — verify current spec sheets before publishing quotes:

Browse the full lineup on our Generac collection and the Generac 26kW Guardian with 200A SE transfer switch if your load math pushed past 20kW, or the Champion 22kW standby for the value play. For a detailed look at the 26kW class, see our complete guide to 26kW generators. And if your property already runs solar with batteries, a standby generator pairs beautifully as the third layer of resilience — our batteries and energy storage page covers the storage side of that architecture.

Ownership: Maintenance and Long-Term Reality

A standby generator is a small power plant, and it rewards small, regular attention. Oil and filter changes follow the engine schedule (typically annually or per run-hour interval, whichever comes first). The battery is the most common failure point across every brand — plan on replacement every three to four years and keep it on the maintainer the unit provides. Exercise cycles should be left enabled; engines that sit unexercised develop stuck rings and moisture problems that show up exactly when the power goes out. Finally, schedule a professional service visit annually, ideally before your region's storm season, and keep the area around the unit clear of mulch, leaves, and snow drift.

Do that, and a Quiet Connect class unit is a 15-20 year asset that runs when it matters. Neglect it, and it becomes the most expensive false sense of security you own. The difference is about an hour a year and a service call.

The Bottom Line

The Cummins RS20ACE earns its place in the 20kW class the honest way: quiet operation that respects the neighborhood, dual-fuel flexibility, connected monitoring, and the backing of a service organization that maintains prime-power diesels for hospitals and data centers. Size it with real load math, pair it with a properly configured 200-amp service-entrance ATS and load management, pull the permits, and it will carry your home through everything the grid fails to. Our team quotes complete packages — generator, transfer switch, load modules, pad, and permitting guidance — through the quote page, or contact us to talk through your specific load list with someone who sizes these systems every week.
