A Guide to the Solar Panel Installation Process

PES Supply Editorial Team

PES Supply, a PES Global Group Company

October 09, 2025 · 19 min read Reviewed by PES Supply editorial team

For installers, EPCs, and developers, a successful solar project is more than just bolting panels to a roof—it's a high-stakes process where timelines, budgets, and compliance determine profitability. From the first site assessment to the final Permission to Operate (PTO), every step is a critical milestone. A mistake in permitting, a delay in procurement, or a failed inspection can derail a project, inflate costs, and damage your reputation.

This guide provides an actionable, field-proven framework for navigating the entire solar panel installation process. We'll break down each phase, highlighting the critical decision points, common pitfalls, and compliance watchouts to help you execute projects efficiently and profitably. The real-world outcome is a repeatable process that minimizes risk and maximizes your return on every job.

Understanding the Full Project Lifecycle

A team of solar panel installers working on a residential rooftop, showcasing the installation process.

Before a single panel gets unboxed, every solar project follows a well-defined path. This isn't just a sequence of tasks; it's an integrated lifecycle where design decisions impact procurement, and procurement timelines dictate installation schedules. Understanding this full journey is key to managing cash flow, crews, and client expectations.

Whether you're an installer managing residential crews, an EPC coordinating a multi-megawatt commercial build, or a developer modeling project ROI, the core stages are the same. Mastering the handoffs between these stages is what separates top-tier operators from the competition.

Key Milestones in the Installation Journey

The entire process breaks down into several distinct phases. A failure in one creates a domino effect of costly delays, change orders, and failed inspections.

Here’s a real-world look at the path from contract to commissioning:

Initial Site Assessment: A forensic analysis of the building's structural health, the capacity of the existing electrical service (per NEC standards), and a precise shading analysis. This is where you identify project-killing surprises early.
System Design & Equipment Selection: Engineering a code-compliant, high-performance system. This involves selecting modules, sizing inverters from brands like Sungrow or Fronius, and integrating energy storage from leaders like FranklinWH or BYD.
Permitting and Interconnection: The administrative battle. Submitting flawless plan sets to the local Authority Having Jurisdiction (AHJ) and securing the interconnection agreement from the utility. This is the most common bottleneck for any project.
Procurement and Logistics: Sourcing all equipment—from panels and racking down to the last fastener—and ensuring just-in-time delivery to the job site. This is a massive logistical challenge driven by supply chain realities.
On-Site Installation: The "boots on the roof" execution phase. This covers the mechanical mounting of racking and panels, plus the complex electrical wiring that must adhere strictly to the National Electrical Code (NEC).
Inspection and Commissioning: The final hurdle. Passing rigorous AHJ and utility inspections to ensure the system is safe and code-compliant, followed by the systematic process of energizing the system and verifying its performance before grid connection.

Critical Insight for Installers & EPCs: The most profitable contractors view the project as a single, continuous lifecycle, not a series of disconnected tasks. Mastering the handoffs between design, procurement, and field crews is where you protect your margins. At PES Supply, we streamline this with in-stock inventory and bundled freight, turning your logistical challenges into a competitive advantage.

Mastering Site Assessment and System Design

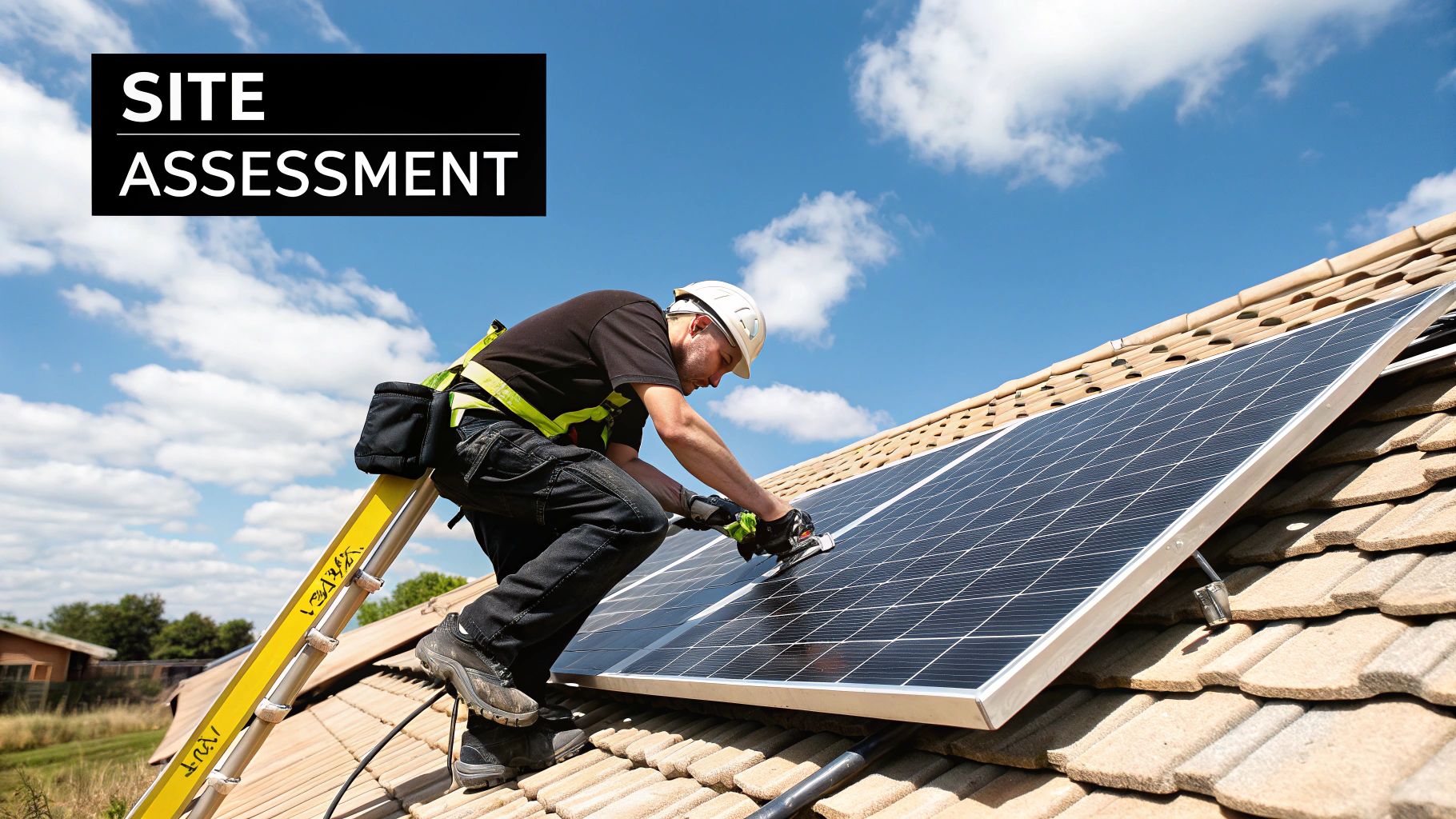

A solar panel installer taking measurements on a roof to design a solar energy system.

A solar project’s success is determined long before the first truck rolls. It’s in the foundational work—the site assessment and system design—where projects are de-risked and profitability is locked in. This phase is about eliminating guesswork and heading off costly disasters before they happen.

A professional site assessment is a forensic investigation, not a quick roof measurement. You are evaluating the roof's structural integrity, assessing the remaining life of the roofing material, and verifying the existing electrical service capacity. Uncovering an undersized main panel or a roof nearing its end-of-life during the initial visit prevents expensive change orders and client disputes later.

A precise shading analysis is absolutely non-negotiable. Using professional tools to map the sun’s path throughout the year provides the hard data needed for accurate production estimates—the same estimates that secure financing and underpin performance guarantees.

Translating Site Data Into a Viable System Design

With solid site data, you can engineer a system that performs in the real world while balancing performance, cost, and compliance. An EPC designing for a Power Purchase Agreement (PPA) has different financial drivers than a residential installer maximizing a homeowner's ROI, but the technical principles are the same.

Every design boils down to a few key decisions:

Module Selection: Do you specify Tier 1 modules for their bankability and robust warranties, or can you meet budget targets with Tier 2 panels where the performance trade-off is acceptable for the application?
Inverter Sizing: Correctly matching an inverter from a brand like Fronius or Sungrow to the array's voltage and current is critical. Undersizing clips production; oversizing wastes capital.
Storage Integration: If energy storage is specified, the design must seamlessly integrate solutions from manufacturers like BYD or FranklinWH, ensuring full compatibility and adherence to NEC Article 706 for battery systems.

Pro Tip for Installers: The best designs are optimized for labor efficiency, not just peak kilowatt-hours. Planning conduit runs, inverter placement, and panel layout with your crew in mind can dramatically reduce installation time, boosting your bottom line on every job.

The Critical Role of Structural and Electrical Evaluation

A solar array adds a continuous dead load to a roof—typically 2.5 to 5 pounds per square foot. A stamped structural engineering review is not optional; it’s a mandatory step to verify the roof can handle the array’s weight plus any live loads from snow or wind. Skipping this exposes you to catastrophic liability.

The electrical evaluation is equally vital. You must verify the main service panel has both the physical space and the busbar capacity for a new solar back-feed breaker. The NEC has a strict rule: the sum of the solar breaker and the main breaker cannot exceed 120% of the busbar’s rating. Exceeding this limit requires a panel upgrade or a line-side tap—both of which add significant cost and time. This must be identified during the initial site visit.

For a deeper technical dive, our guide to solar energy system components breaks down how these pieces fit together. Meticulous planning here ensures your installation crew executes a vetted, code-compliant plan—no guesswork, no on-site change orders.

Key Decision Points in Site Assessment & Design

Making the right calls during this phase is crucial. This table breaks down the most critical factors for installers, EPCs, and developers to keep a project on track and profitable.

Assessment Factor	Key Consideration for Installers	Impact for EPCs & Developers	Recommended Action
Roof Condition	Is the roofing material nearing its end-of-life? A re-roof adds significant cost and coordination.	Determines long-term asset viability and impacts O&M costs in PPA models.	Conduct a thorough roof inspection. Factor re-roofing costs into the initial quote if the roof has less than 10-15 years of life remaining.
Shading Analysis	Which specific areas of the roof will have the highest solar irradiance throughout the year?	Production estimates must be highly accurate to meet PPA performance guarantees and secure financing.	Use tools like Solar Pathfinder or Aurora Solar to generate a detailed shade report. Adjust panel layout to minimize shading losses.
Electrical Service	Does the main panel have the capacity for the solar back-feed breaker per the NEC 120% rule?	An unexpected service upgrade can severely impact project economics and interconnection timelines.	Perform a full electrical service assessment, including photos of the panel interior and busbar rating, during the initial site visit.
Structural Integrity	Can the existing roof structure support the added dead load of the solar array?	Structural upgrades can be a major unforeseen expense, jeopardizing the project's financial model.	Require a stamped structural engineering letter for all projects to verify load capacity and attachment point specifications.

Navigating Permits and Procurement Logistics

Managing paperwork and the supply chain is as critical as turning wrenches. A perfect design and an elite crew are useless if you're stuck in permitting with the Authority Having Jurisdiction (AHJ) or your panels are delayed by six weeks due to supply chain disruptions. This phase is where projects are won or lost on administrative execution and logistical planning.

The permitting process is the first major bottleneck. Every municipality has its own unique rules, submission portals, and review timelines. A flawed submission can trigger expensive redesigns and derail your entire project schedule, creating crew downtime and destroying profitability.

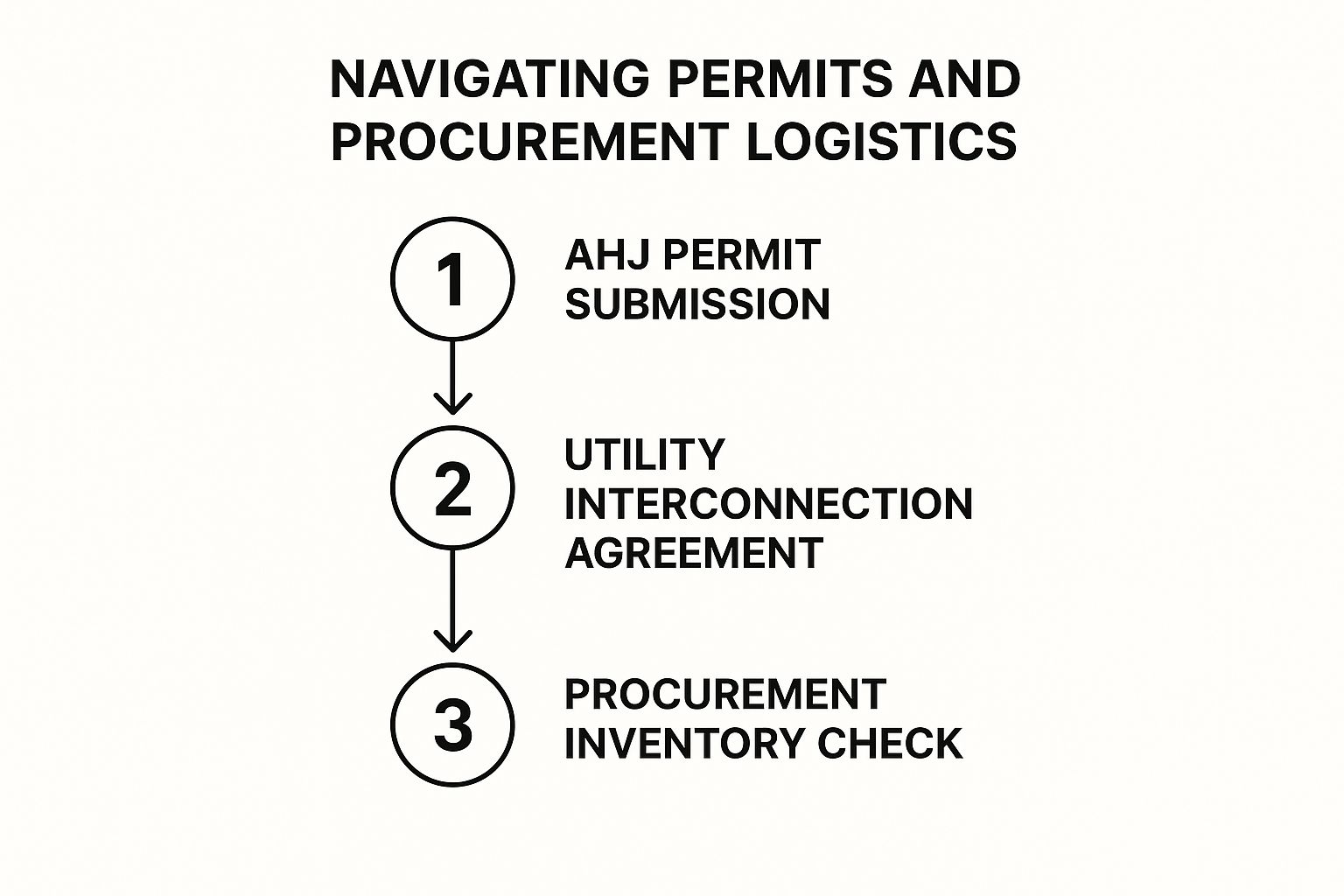

This flowchart breaks down the critical path, from permit submission to ensuring your equipment is on-site and ready for installation.

Infographic showing the three key steps in navigating permits and procurement: AHJ Permit Submission, Utility Interconnection Agreement, and Procurement Inventory Check, connected by directional arrows.

These are not sequential tasks; they must be managed in parallel. A delay in one stage creates a domino effect, which is why proactive management is essential.

De-Risking the Permitting Process

To avoid rejection, your permit package must be flawless. A single missing detail on a one-line diagram or an incorrect spec sheet can send your application to the back of the line. Your submission is proof of your professionalism and commitment to building to code, adhering to standards like the National Electrical Code (NEC).

Your complete permit package must include:

Detailed Site Plan: Showing property lines, roof layout, and precise placement of all panels, inverters, and disconnects.
One-Line and Three-Line Electrical Diagrams: Clearly mapping the system's wiring from the modules to the point of interconnection.
Structural Engineering Letters: A stamped letter from a licensed engineer verifying the roof's load-bearing capacity.
Equipment Spec Sheets: Official manufacturer datasheets for all key components: panels, inverters (like Sungrow or Fronius), racking, and any energy storage systems.

While managing the AHJ, you must simultaneously navigate the utility interconnection agreement. This is a separate process where the utility approves your design to ensure grid stability. Their review can take weeks or months; submit this application the moment your design is finalized.

Mastering Procurement and Supply Chain Realities

With permits in process, your focus shifts to procurement. The goal is simple: get all materials to the job site exactly when needed. Too early, and you have thousands of dollars of equipment sitting unprotected. Too late, and your crew is standing idle, costing you money.

This is why your choice of distributor is a strategic decision. Partnering with a supplier that provides real-time, in-stock inventory visibility and firm lead times is a game-changer. It allows you to schedule crews with confidence, knowing your equipment will arrive on time.

For Procurement & Project Managers: The true cost of procurement isn't the invoice price; it's the hidden cost of project delays, crew downtime, and liquidated damages from an unreliable supply chain. Look for a partner offering services like bundled freight, which combines components into a single, coordinated delivery, simplifying logistics and reducing risk. For a deeper dive, read about understanding the fundamentals of supply chain management.

Relying on distributors with vague "4-6 weeks" lead times is a recipe for disaster in a volatile market. To better manage these challenges, review our guide on supply chain disruption management. Proactive planning and a transparent supply partner are your best defenses against project delays.

Executing a Flawless On-Site Installation

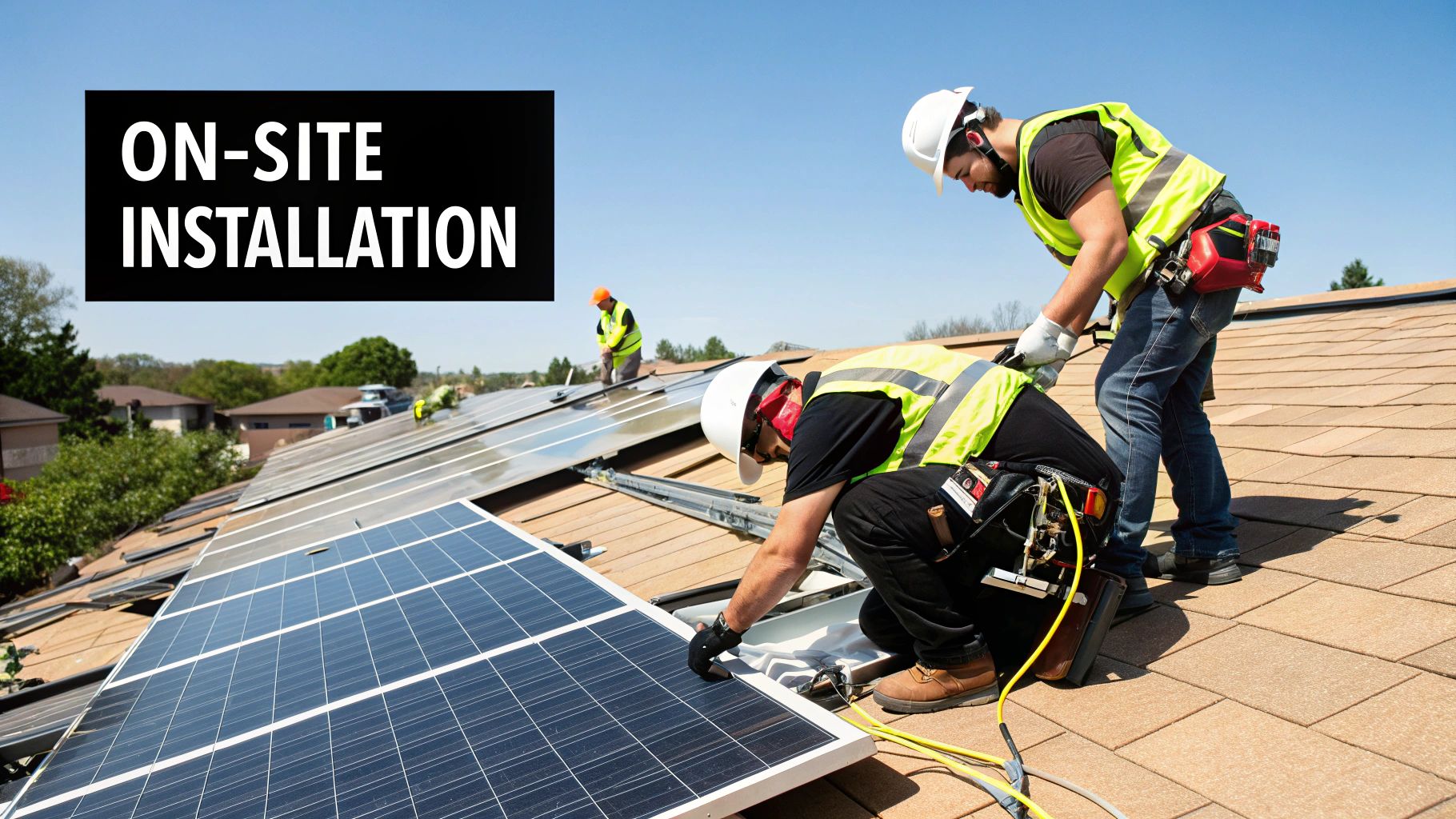

A team of solar panel installers securing panels onto a rooftop racking system.

This is where planning meets execution. All the designs, permits, and purchase orders materialize as your crew transforms components into a power-generating asset. On-site installation is a disciplined process of mechanical and electrical work where safety, precision, and code compliance are non-negotiable. Every action directly impacts the system's performance, longevity, and ability to pass inspection. One shortcut can lead to a failed inspection, a safety hazard, or a chronically underperforming system.

Mechanical Assembly: Racking and Panels

The first order of business on any site is safety. This means establishing fall protection, securing the work area, and ensuring 100% PPE compliance. A safe site is an efficient site. Investing in processes for maintaining site safety during construction is critical.

With the site secured, the crew begins laying out the racking system, translating the engineering plan into a physical structure.

Attachment Points: Locating and marking rafters is mission-critical. Each penetration must be drilled precisely and sealed with high-quality sealant to prevent water intrusion—a rookie mistake that leads to catastrophic roof leaks.
Rail Installation: Rails must be installed perfectly level and square. Misaligned rails put uneven stress on modules and are a clear sign of unprofessional work.
Module Mounting: Solar panels are lifted and secured using clamps torqued to the manufacturer’s exact specifications. Over-torquing can damage the panel frame; under-torquing can result in a panel becoming a projectile in high winds.

Compliance Watchout: NEC 110.3(B) This code requires that all equipment be installed according to the manufacturer's instructions. Using the wrong clamps for a racking system or failing to follow torque specifications is a direct code violation that will guarantee a failed inspection.

The racking is the backbone of the array. For a deeper look at the available options, see our guide on solar panel racking systems.

Critical Electrical Wiring and Integration

With panels mounted, the crew transitions to the electrical work. This is where individual components are integrated into a single, power-generating system. Precision is paramount; faulty wiring is a leading cause of underperformance and a serious fire risk.

The process begins at the array, where panels are wired into series "strings" to build voltage. These strings are then combined in parallel to increase current. Meticulous wire management is essential to prevent abrasion and damage over the system's 25-year lifespan.

Next, conduit is run from the roof to the inverter location. A clean, efficient conduit run minimizes voltage drop, maximizing energy harvest. The inverter—whether a string inverter from Fronius or a hybrid from Sungrow—is the system's brain and must be mounted and wired according to strict NEC rules for grounding, overcurrent protection, and clearance.

The final step is the interconnection with the building's main electrical panel and any battery storage systems, such as units from BYD or FranklinWH. This complex work must be performed by a licensed electrician to ensure safety and code compliance.

Compliance Watchout: NEC 690.12 Rapid shutdown is a mandatory life-safety requirement to protect first responders. The system must have a reliable method to de-energize the array quickly. Failure to install and test the rapid shutdown device correctly is an automatic inspection fail.

Passing Inspection and Commissioning the System

This is the final validation phase. The last panel is secured, and the final wire is pulled. Now, your work is put under the microscope to prove the system is safe, code-compliant, and ready to perform for the next 25 years. A smooth inspection and commissioning process is the hallmark of a professional operator, avoiding costly punch-lists and delays that erode profitability.

The Final Inspection Gauntlet

Two key inspections stand between your completed installation and a Permission to Operate (PTO): one from the local AHJ and another from the utility. These are not formalities; inspectors are trained to spot shortcuts and safety violations.

The AHJ inspector is focused on electrical and structural safety, comparing your work against the approved plans and the latest National Electrical Code.

Here’s a quick rundown of their checklist:

Proper Grounding and Bonding: They will verify a continuous ground path from every module and rack component back to the grounding electrode system.
Correct Signage and Placards: All required warning labels must be correctly placed on disconnects, inverters, and the main service panel per NEC requirements.
Code-Compliant Wiring Methods: They will inspect conduit fill, wire management under the array, and the workmanship of connections in junction boxes.
Rapid Shutdown Functionality: A failed rapid shutdown test is an instant fail. They will verify the system de-energizes as required by NEC 690.12

The utility inspector’s primary concern is grid interconnection. They will verify the AC disconnect is accessible, properly labeled, and that inverter settings match their requirements to ensure grid stability.

Pro Tip for Installers: Arrive at the inspection prepared. Have a binder with your approved plans, equipment spec sheets, and torque logs ready. Walk the inspector through the job calmly and professionally. A clean, organized site and a prepared contractor build immediate trust.

System Commissioning: A Step-By-Step Protocol

With green tags from both the AHJ and the utility, it’s time to commission the system. This is the methodical process of safely energizing and testing the equipment. Never just flip the breakers without following a strict sequence.

Your standard commissioning checklist must include:

Verify All Connections: Double-check that all DC and AC connections are torqued to manufacturer specifications.
Insulation Resistance Test: Use a megohmmeter to test the DC conductors for faults or ground shorts before energizing.
Voltage and Polarity Checks: Use a multimeter to confirm the open-circuit voltage (Voc) of each string is within the inverter’s operational range and that polarity is correct.
AC Voltage Verification: Confirm stable and correct AC voltage at the point of connection.
System Energization: Follow the inverter manufacturer's startup procedure precisely, typically energizing the AC disconnect first, followed by the DC disconnect.
Performance Verification: Once the inverter syncs to the grid, monitor its output to ensure production data is logical for current weather conditions and that all strings are performing as expected.

Professional Project Handover

The final step is the client handover. A professional handover builds trust and reduces future service calls. Provide a comprehensive folder with all essential documents.

This package must include:

As-Built Diagrams: Final electrical drawings showing the installed system.
Warranty Information: All manufacturer warranty documents for panels, inverters, and batteries.
Owner’s Manual: A simple guide on system monitoring and basic troubleshooting.
Contact Information: Clear details for service, support, and warranty claims.

Global solar capacity soared past 2.2 terawatts (TW) by the end of 2024, with over 600 GW commissioned that year alone. While regional codes vary, the core principles of a safe, professional commissioning process are universal. You can read more about these global solar market trends driving this incredible growth.

Common Questions About the Installation Process

Even the best-laid plans encounter challenges. Here are straight answers to the most common questions from installers, developers, and project owners.

How Long Does a Full Installation Really Take?

While the on-site work for a residential system may only take one to three days, the true project timeline from contract to Permission to Operate (PTO) is much longer. The delays are almost always administrative, not operational.

A realistic project timeline includes:

Design & Engineering: 1-2 weeks
Permitting (AHJ & Utility): 3 weeks to 3+ months (the biggest variable)
Equipment Procurement & Delivery: 1-4 weeks (highly dependent on supply chain)
On-Site Installation: 1-3 days (residential)
Final Inspections & PTO: 2-6 weeks

A typical residential project takes two to four months from start to finish. Commercial projects have significantly longer timelines due to more complex engineering and permitting requirements.

What Are the Most Common Project Delays?

Project delays directly impact cash flow and profitability. The most significant delays occur before a single tool is unboxed.

Expert Insight: The vast majority of solar project delays are administrative. The primary culprits are slow AHJ permit reviews and lagging utility interconnection approvals. A single error on a plan set can send you to the back of the queue, adding weeks or even months to your timeline.

Other common project killers include:

Supply Chain Snags: Backordered panels, inverters, or specialty components can halt a project indefinitely.
Surprise Site Conditions: Discovering the need for a structural upgrade or a main service panel replacement during installation is a costly and time-consuming setback.
Failed Inspections: A failed inspection requires rework, rescheduling, and re-inspection, creating a cascade of delays.

What Are the Key Cost Factors in an Installation?

The final project cost is driven by more than just hardware. Understanding these variables is critical for accurate quoting and project management. In 2024, global solar electricity generation grew by an estimated 28%, reflecting the massive investment in labor and materials behind every installation. You can get a deeper look at this global solar boom on utilitydive.com.

The primary cost drivers are:

System Size & Equipment Tier: A larger system using premium Tier 1 modules and a high-efficiency inverter carries a higher upfront cost.
Roof Complexity: Steep pitches, multiple roof faces, and obstructions significantly increase labor hours and material costs for specialized racking.
Electrical Work: The need for a main service panel upgrade, trenching, or long conduit runs can add thousands to the project cost.
Labor and Permitting Fees: These "soft costs" are a major budget component and vary significantly by region.

Navigating the complexities of a solar installation requires a partner who understands the realities of the field. At PES Supply, we provide the in-stock inventory, logistical expertise, and technical support to keep your projects on schedule and on budget.
